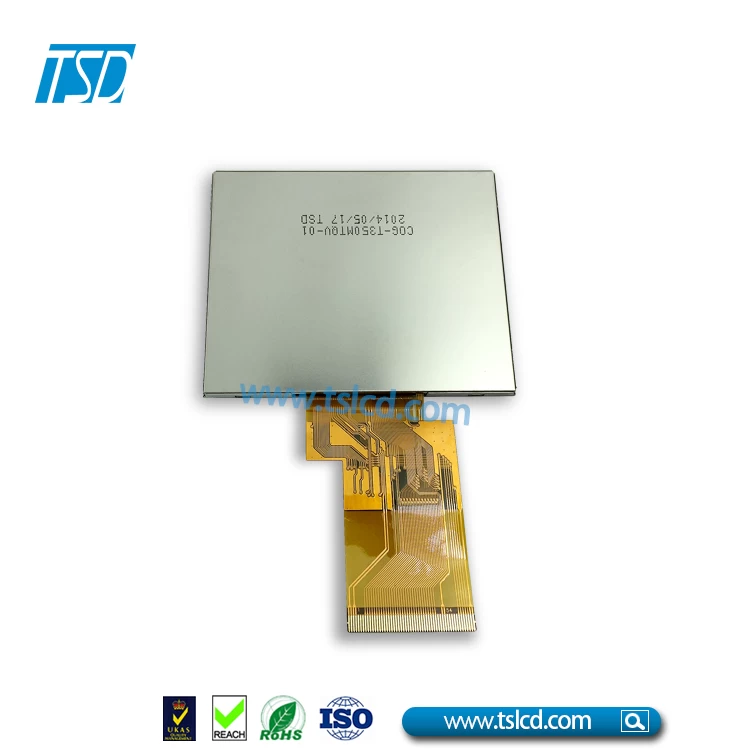

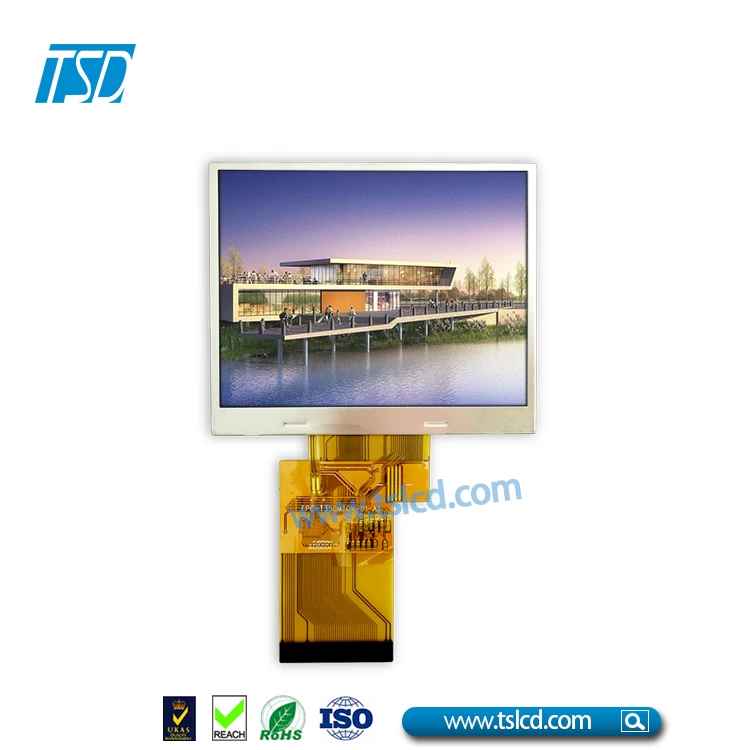

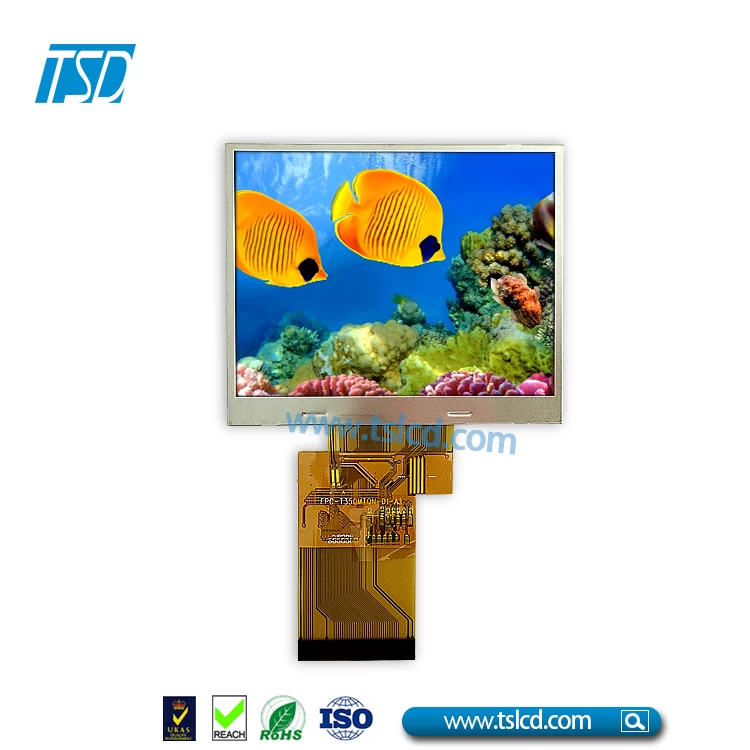

3.5 inch TFT LCD display with 320*240 Resolution

3.5inch 240x320Res

QVGA color TFT LCD MODULE DISPLAY


Facebook Twitter Pinterest LinkedIn 分享

Wholesale 3.5 inch tft display

3.5 inch tft small lcd monitor hdmi 320X240 tft

QVGA Color TFT LCD module display

Specification
LCD type 3.5" tft lcd , Transmissive
Display type 3.5" TFT 262k color, normal white
Item description CTP for 3.5" QVGA tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 76.9x63.9x3.15
A.A.(mm) 70.08x52.56
Driver IC NV3035GTC
Resolution(dots) 320x240 resolution
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Pixel Pitch 0.219x0.219
Logic Volatge 3.3v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Interface RGB 24 bits parallel interface
Backlight 6 LEDs, White
Weight(g) 29.3
Interface RGB
Module lifetime(Hours) 50,000-100,000
