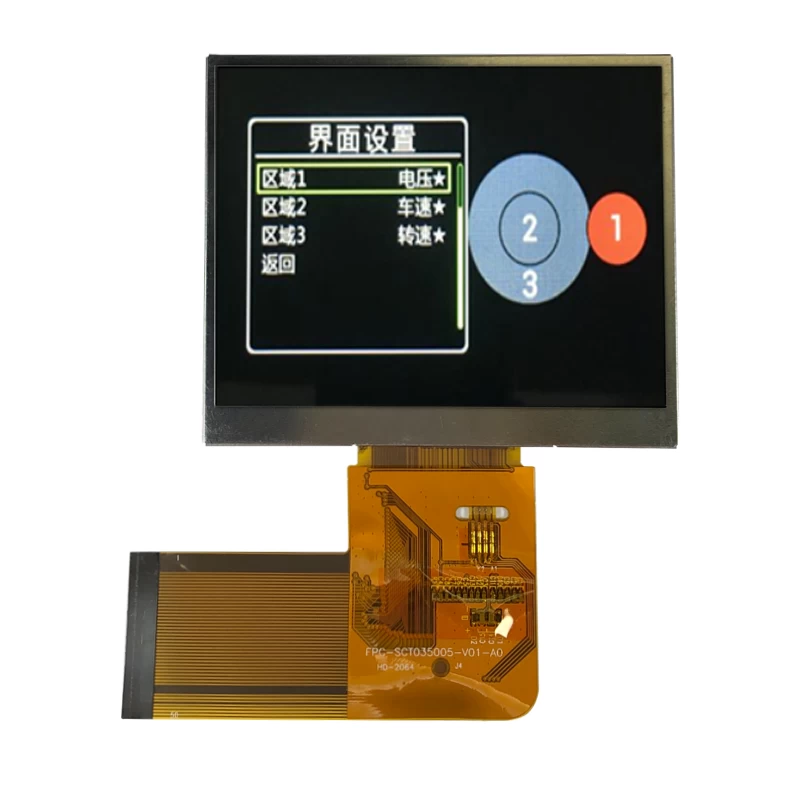

3.5 inch TN LCD display with 320RGB*240 resolution MCU & RGB interface SSD2119M IC 50 PIN

SCT035005-V01 is a 3.5 inch TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB interface, 54 PIN, 12 o'clock view direction

  • IC Part No.SSD2119M
  • InterfaceMCU & RGB
  • View Direction6
  • Active Area (mm)70.08*52.56
  • Viewing Area (mm)-
  • Outline Dimension (mm)76.90*63.90*3.05
  • Resolution320*240
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    320RGB*240

Outline Dimension:       76.90*63.90*3.05

Active Area:                  70.08*52.56

View area:                     71.08*53.56

Interface:                      MCU & RGB

Driver IC:                       SSD2119M

View Direction:             6 o'clock

PIN:                                50

Backlight:                      White LED

Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

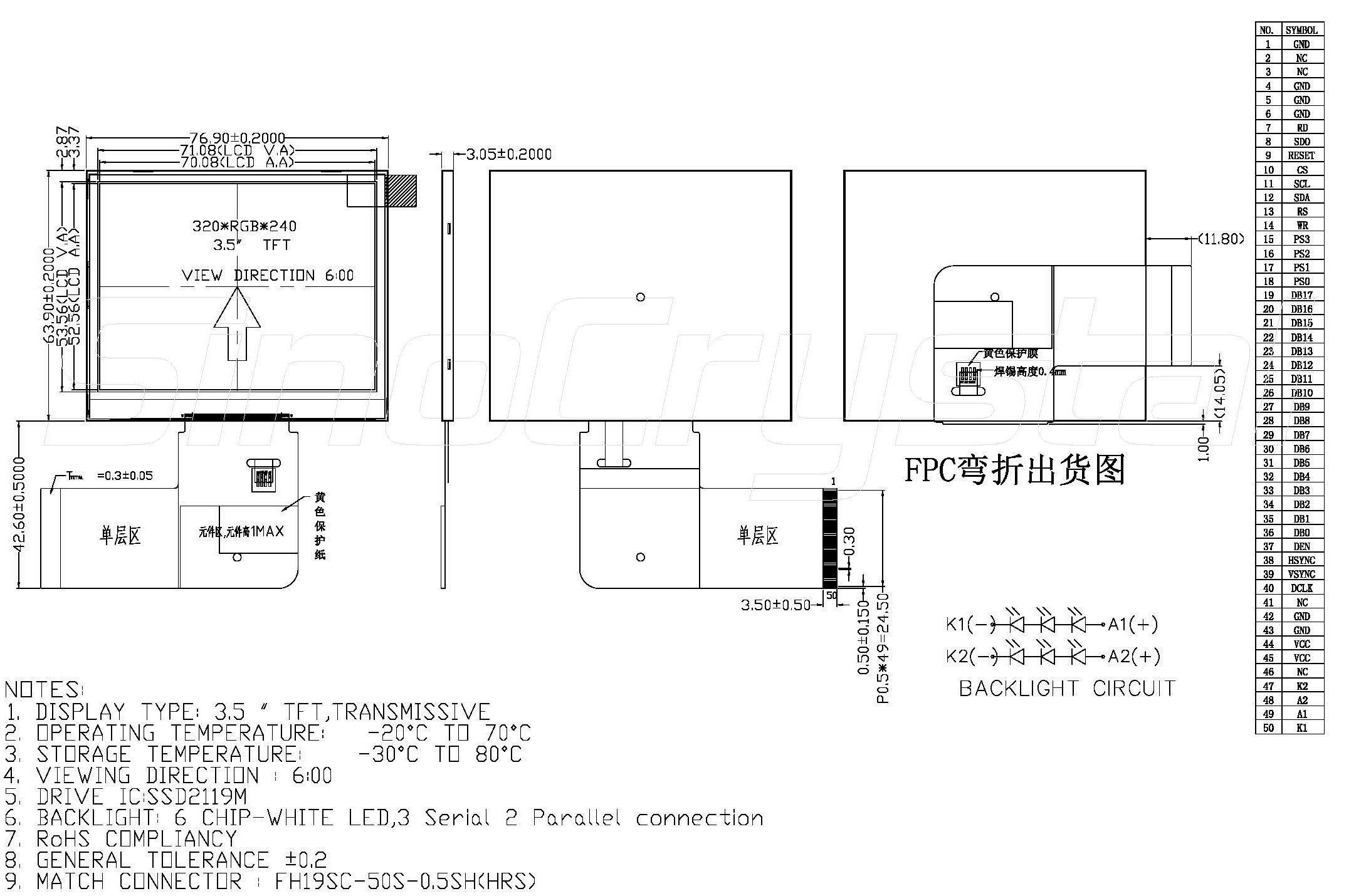

Drawing




General Specification



Item Nominal Dimension Unit
Dot Matrix 320 x RGB x 240 Dots
Module Size ( W×H×T ) 76.90 x 63.90 x 3.05 mm.
Active Area ( W×H ) 70.08 x 52.56 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.219 x 0.219 mm.
Color depth 262K(MAX)
 colors
Interface MCU & RGB -
Driving IC Package COG -
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT -
LCD Mode TN/Normal White -
Backlight Type LED x 6 PCS




Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2--3 NC - No use
4--6 GND 0V Ground
7 RD H/L 6800-system: E(enable signal)
8080-system : RD (read strobe signal)
8 SDO H/L Data output pin in serial interface
9 RESET H/L Reset signal
10 CS H/L Chip Select
11 SCL H/L Serial clock input
12 SDA H/L Data input pin in serial interface
13 RS H/L selector of command or parameter



6800-system : RW (indicates read cycle when High, write cycle when Low)
14 WR H/L 8080-system : WR (write strobe signal)

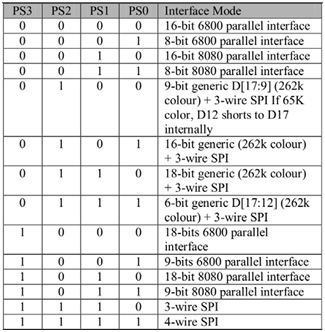

15 PS3 H/L Detail see below picture
16 PS2 H/L
17 PS1 H/L
18 PS0 H/L Data bus , Fix to VSS level when not in use
19-36 DB17 - DB0 H/L When 16-bit be selected, D[17:10] and D[8:1] used
37 DEN H/L Display enable pin from controller.
38 VSYNC H/L Frame/Ram Write Synchronization input
39 HSYNC H/L Line Synchronization input



Dot-clock signal and oscillator source. A non-stop external
40 DCLK H/L clock must be provided to that pin even at front or black porch non-display period.
41 NC -
 No use
42-43 GND 0V Ground
44-45 VDD 2.8-3.3V Power supply
46 NC - No use
47 K2 - LED light, cathode
48 A2
LED light, anode
49 A1
LED light, anode
50 K1 - LED light, cathode
