3.5 inch touch screen display with 320RGB*240 24bit RGB with Serial Interface HX8238 IC 60 PIN

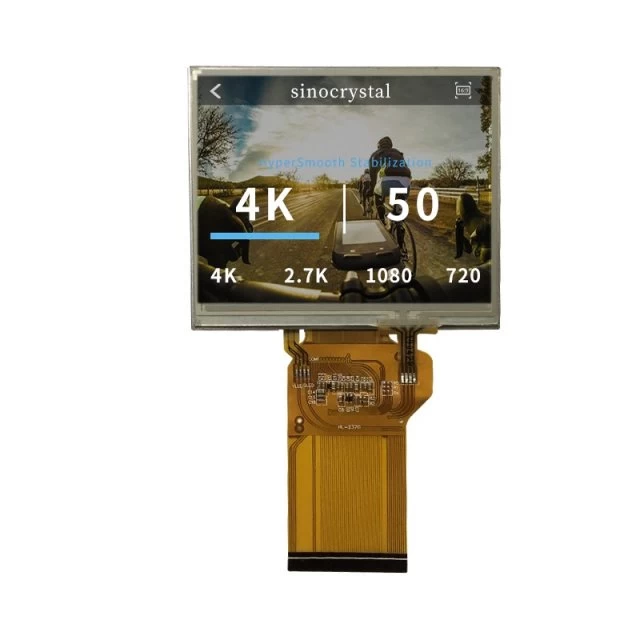

SCT035011-V02 is a 3.5 inch TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB with Serial Interface, 60 PIN, 6o'clock view direction

  • Temperature (℃)-20°C~70°C
  • Touch ScreenRTP
  • Brightness (cd/m²)300
  • IC Part No.HX8238-D
  • Interface24bit RGB with Serial Interface
  • View Direction6
  • Active Area (mm)70.08*52.56
  • Viewing Area (mm)-
  • Outline Dimension (mm)78.2*65*4.6
  • Resolution320*240
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    320RGB*240

Outline Dimension:       78.2*65*4.6

Active Area:                  70.08*52.56

View area:                     75.1*61.9

Interface:                      24bit RGB with Serial Interface

Driver IC:                       SSD2119M

View Direction:             6 o'clock

PIN:                                60

Backlight:                      White LED

Touch Screen:               Resistive Touch Panel




Drawing




General Specification


Mechanical Specification




Interface Definition
