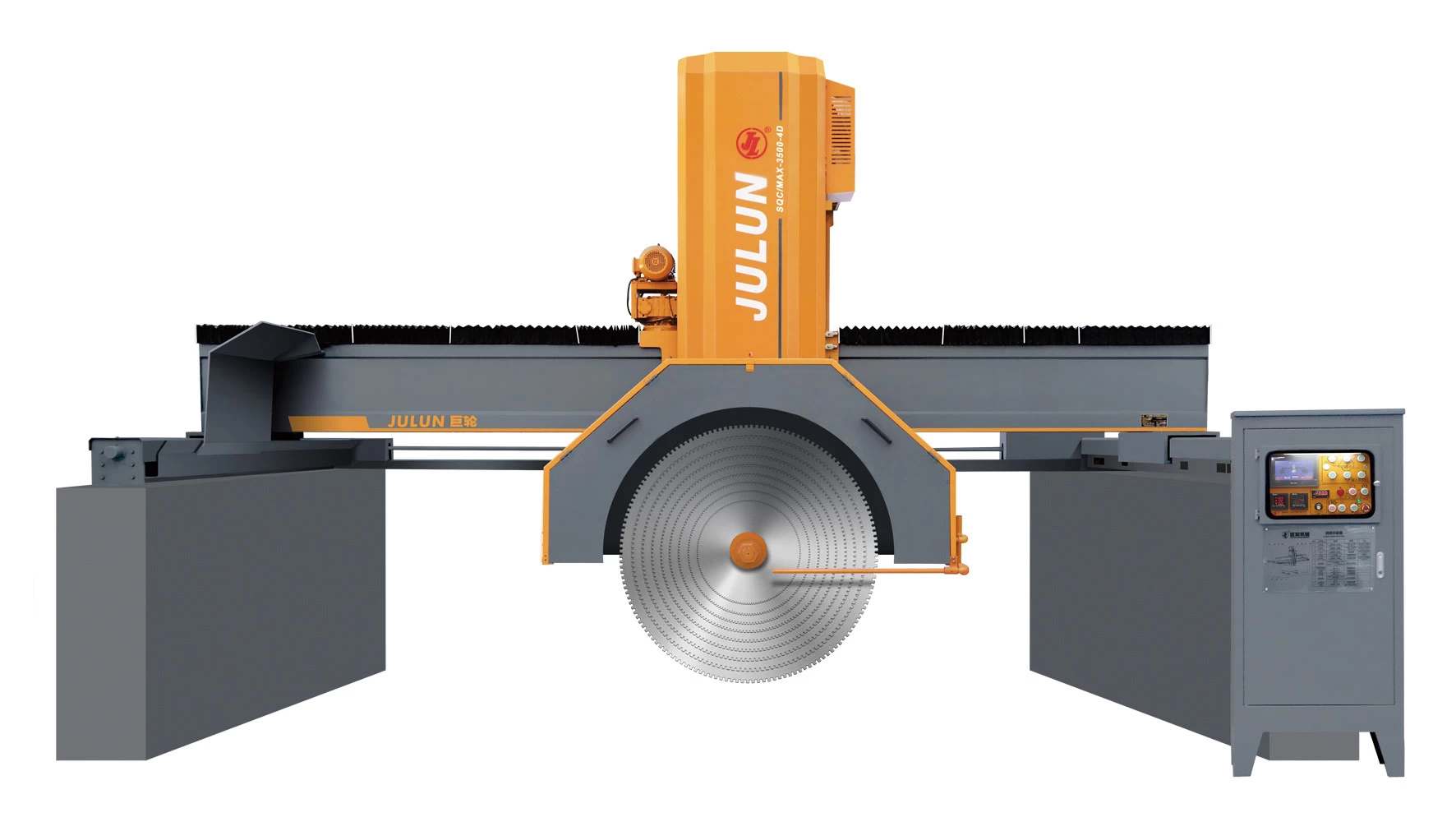

3.5 Meter Block Cutting Machine

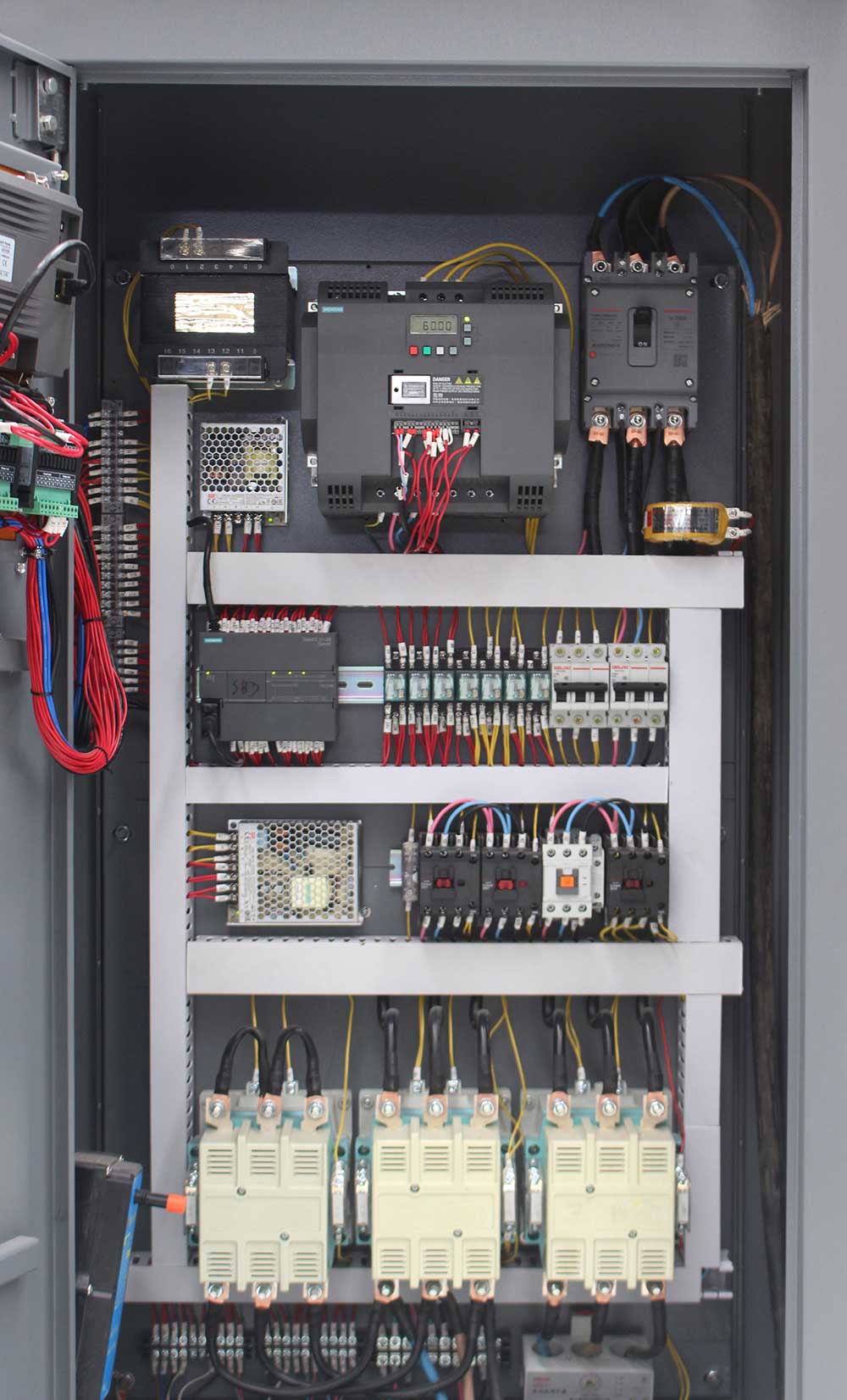

1.Big stone processing machine is a bridge machine for processing over-sized blocks uses PLC system and Human-machine Interface,combined with Ultra-high precision rotary encoder to slice,uses inverter to control left-right feeding and adjusts the speed according to the stone material.
2.It uses hydraulic lifting system to combined with the chrome guide pillar and wearable guide sleeve,which is small clearance and wearable and beautiful.The design of Multi-layer seal in the guide sleeve is waterproof,dust-proof and leak-proof to enhance the service life.The forward-backward slicing uses high-precision screw nut driving,automatic slicing,the main motor uses the dedicated motor of stone machinery,with frequency converter control,it can automatically adjust according to the stone materials and blades size.Main spare parts adopt imported good-quality materials;
3.The block can be placed on the ground directly to economize the worktable and its maintenance costs;The whole machine is featured as high cutting efficiency,high slicing precision,high flatness after cutting,high stability and easy operation.It is especially suitable for cutting the high value and big size granite and marble.
Note:360° rotating worktable can be selected if customer requires.
Specification
|
Appellation
|
unit
|
SQC/PC-3500-4D
|
|
Max.blade diameter
|
mm
|
Φ3500
|
|
Max.processing length
|
mm
|
3500
|
|
Max.processing width
|
mm
|
3000
|
|
Max.lifting stroke
|
mm
|
1650
|
|
Water consumption
|
m³/h
|
15
|
|
Power of main motor
|
kw
|
55
|
|
Total power
|
kw
|
69
|
|
Dimension(L×W×H) (from base to the highest point)
|
mm
|
9000×5200×4350
|
|
Weight
|
kg
|
17000
|

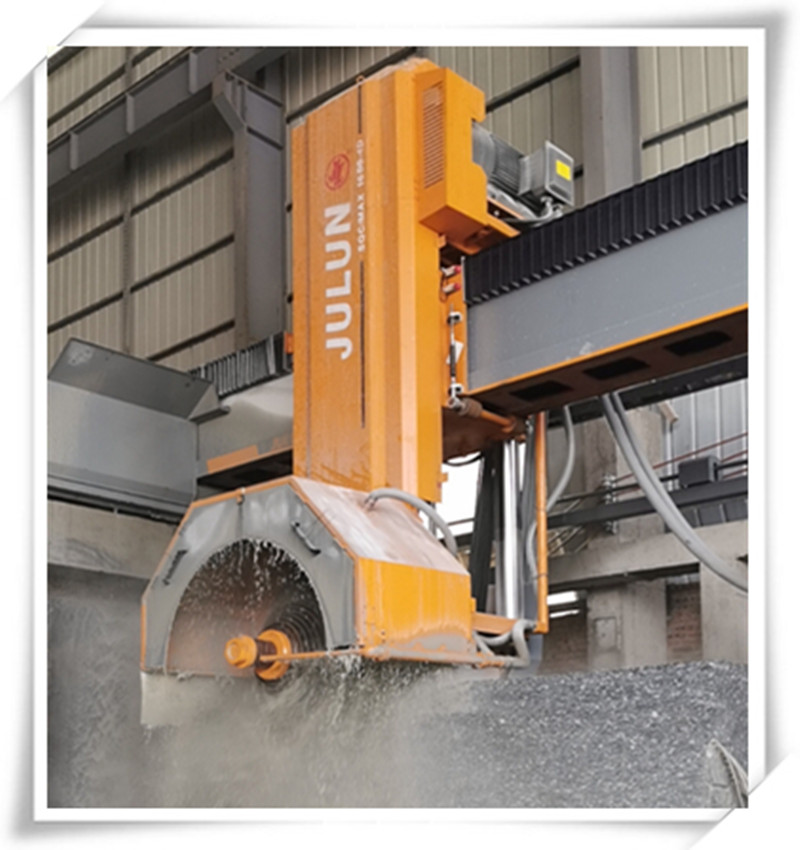

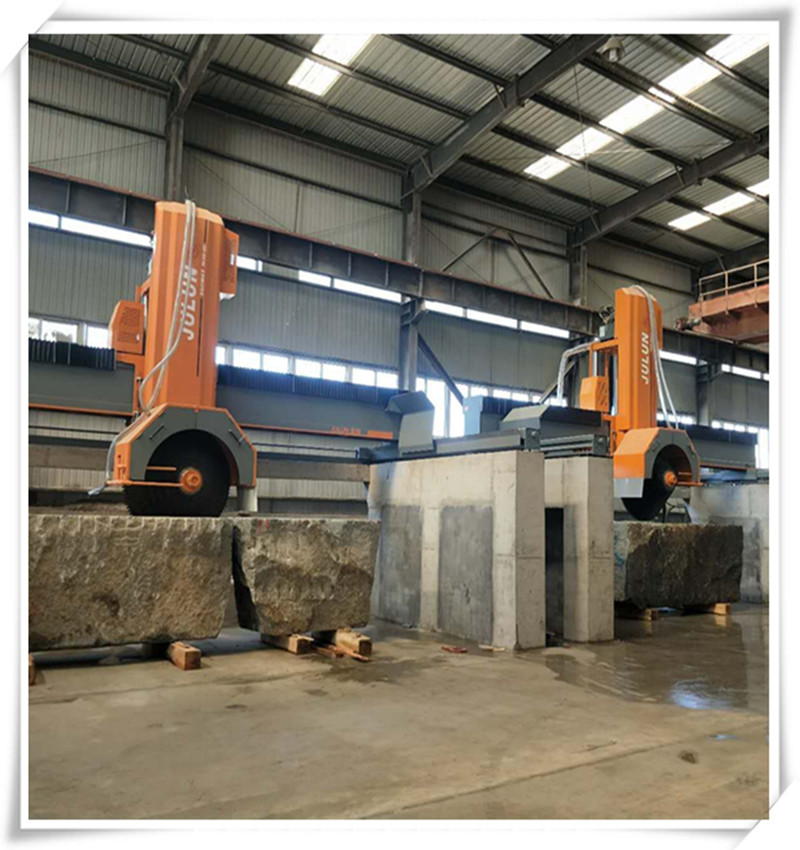

Photos
