What is Inverter：
Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment.
Advantage：
1.Low decibel cooling fan, high efficiency no noise.
2.Fault alarm warning.
3.Easy installation.
4.Remote control.
5.Pure sine wave output voltage.
6.Widely voltage frequency range.
7.Three stages charge, prolong battery lifespan.
Date Sheet
|
Solar Inverter IVPL
|
|
Model
|
3524
|
|
|
3500VA
|
|
RatedOutputPower(W)
|
3500va/3000w
|
|
Norminal DC Input Voltage
|
24v
|
|
Charge & Line Mode Specification
|
|
Norminal Input Voltage
|
220Vac
|
|
Low Line Disconnect
|
90Vac±7Vac
|
|
Low Line Re-connect AC Input Range
|
100Vac±7Vac
|
|
High Line Disconnect
|
280Vac±7Vac
|
|
High Line Re-connect
|
270Vac±7Vac
|
|
Output Voltage Waveform
|
As same as input waveform
|
|
Efficiency(Line mode)
|
≥95%(Rated R load, and battery is full charged)
|
|
Transfer switch Rating
|
AC 40A
|
|
Transfer time(AC to DC)
|
15ms(typocal)
|
|
Transfer time(DC to AC)
|
15ms(typocal)
|
|
Pass Through Without Battery
|
Yes
|
|
Input Overload Current
|
AC 40A
|
|
Norminal Output Voltage
|
Dependent on battery type
|
|
Max Charge Voltage
|
DC 40A
|
|
Charge Current Regulation
|
Charge current adjustable:0A,10A,20A,30A,40A
|
|
Breaker Size
|
Dependent on battery type or Self-defined
|
|
Over Charge protection
|
Yes
|
|
Algorithm
|
AGM
|
|
|
Flood
|
|
|
Self
|
|
Inverter Mode Specification
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Power Factory
|
1
|
|
Nominal Output Voltage
|
220Vac±5%
|
|
Nominal Output Frequency(Hz)
|
50±0.3Hz/60±0.3Hz(adjustable)
|
|
Over-load Protection(SMPS)
|
60s@≥150% load; 120s@105%-150% load
|
|
Surge Rating
|
2*rated power for 5 seconds
|
|
Capable of starting electric
|
Yes
|
|
Output Short Circuit Protection
|
Yes
|
|
Output overlaod current
|
AC 30A
|
|
Nominal DC Input Voltage
|
24Vdc
|
|
Low Battery Alarm
|
11.5V/23V/46Vdc@load<50%;11V/22V/44Vdc@load>=50%
|
|
Low battery Recovery
|
11.75V/23.5V/47Vdc@load<50%;11.5V/23V/46Vdc@load>=50%
|
|
Low DC Input Shut-down
|
10.75V/21.5V/43Vdc@load<50%;10.5V/21V/42Vdc@load>=50%
|
|
High DC Input Alarm& Fault
|
15.75Vdc±0.4/31.50Vdc±0.4V/63Vdc±0.4V
|
|
High DC Input Recovery
|
15.5Vdc±0.4/31.0Vdc±0.4V/62Vdc±0.4V
|
|
Oprating Temperate
|
0℃ to 40℃
|
|
Range Storage temperate
|
-15℃-60℃
|
|
Dimension(mm)
|
570*315*300mm
|
Product Detail

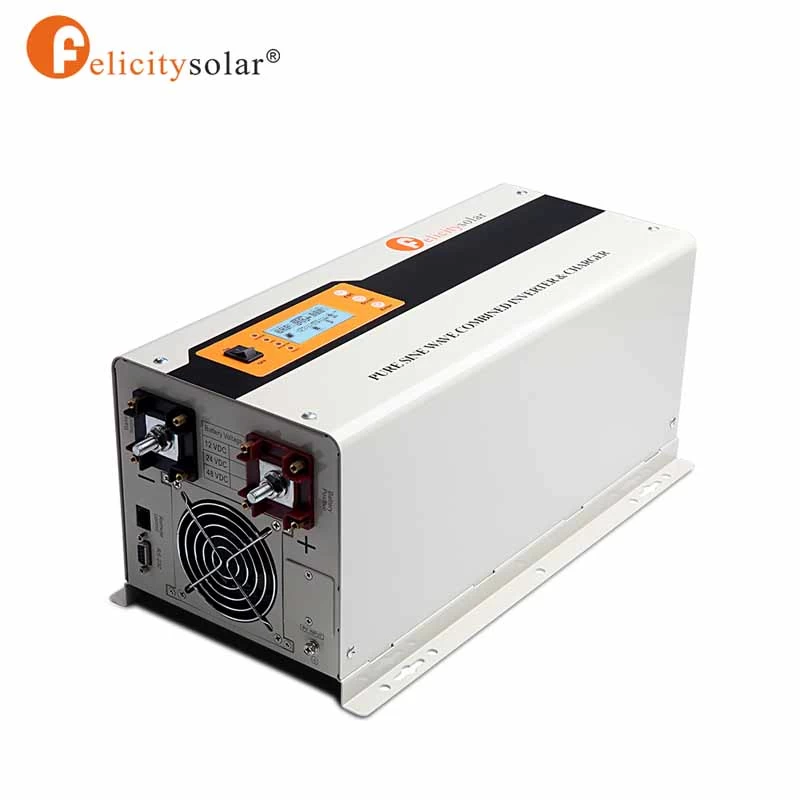

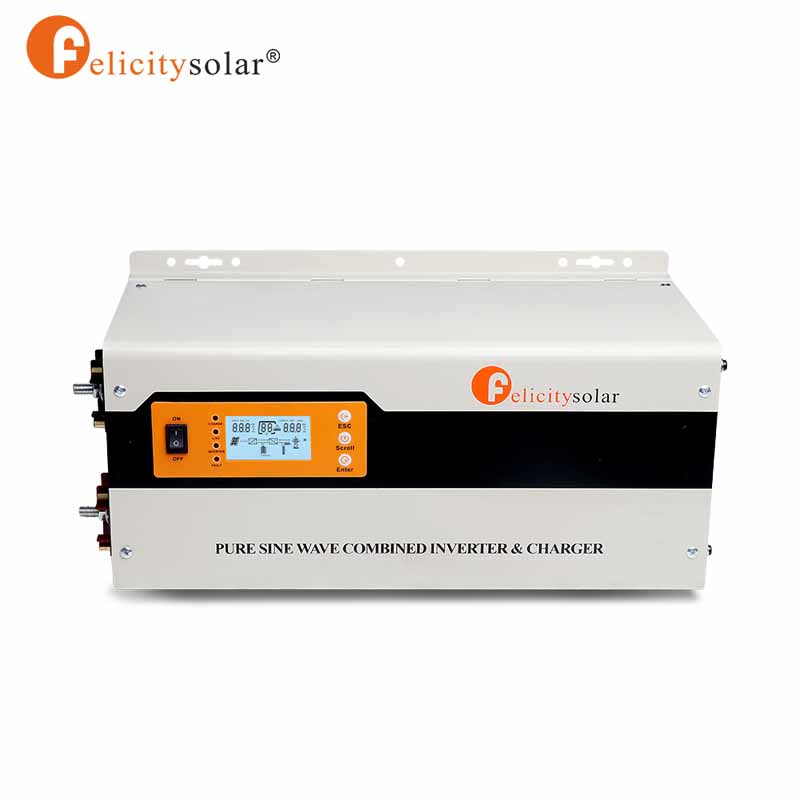

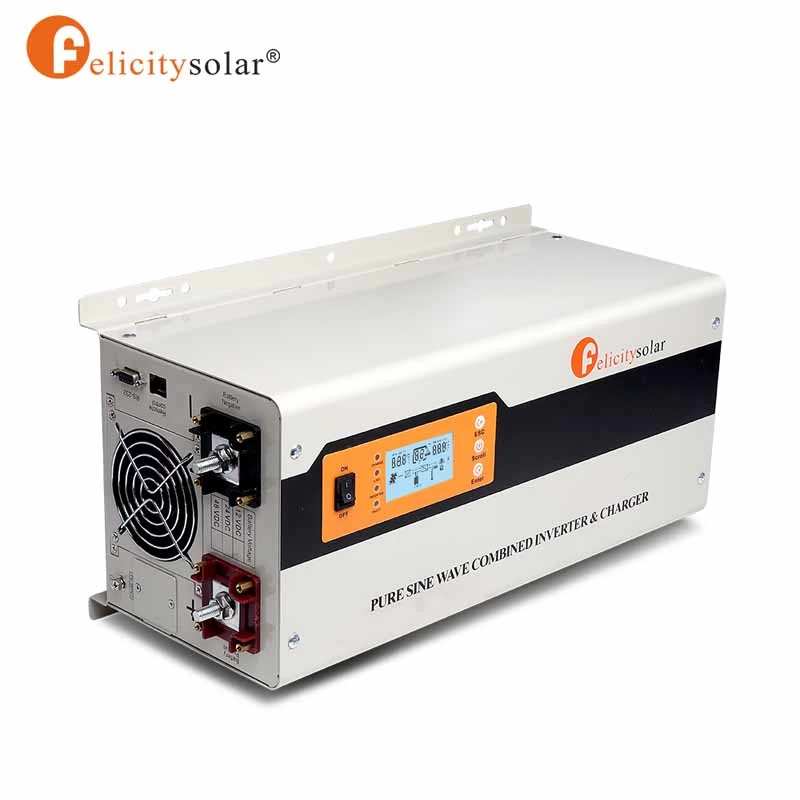

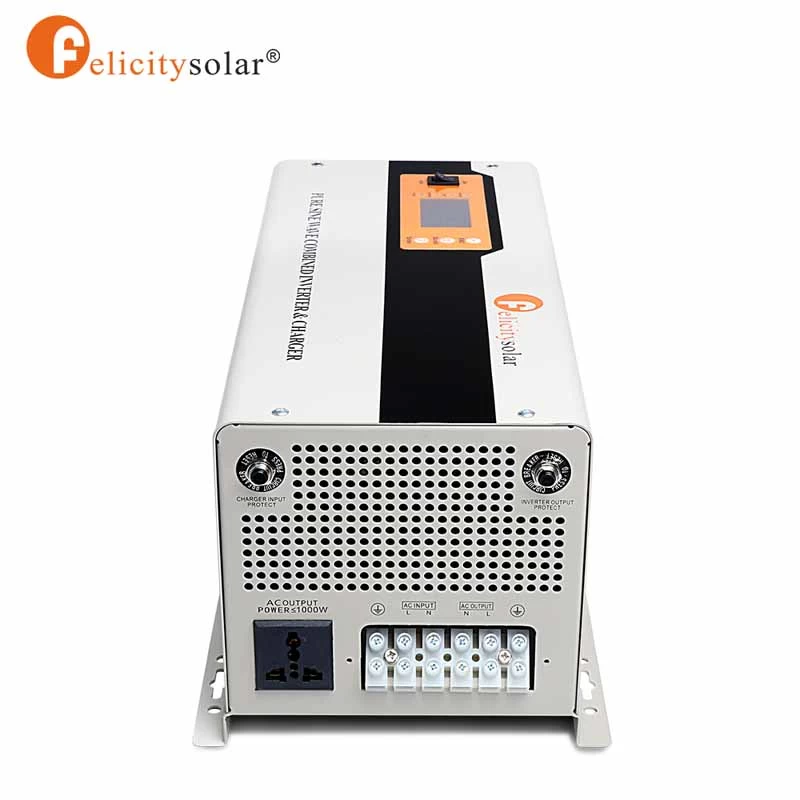

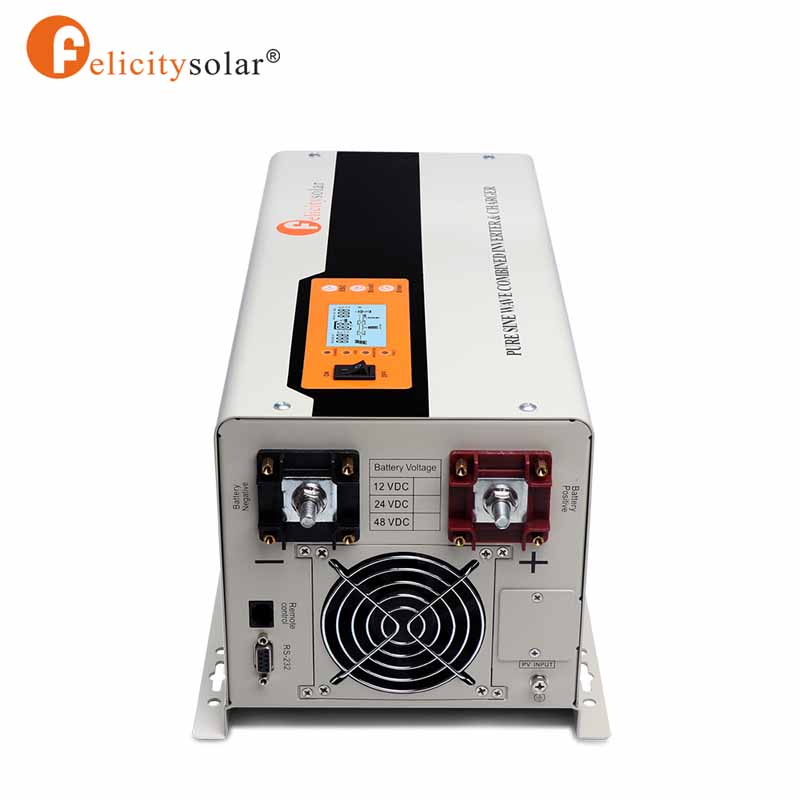

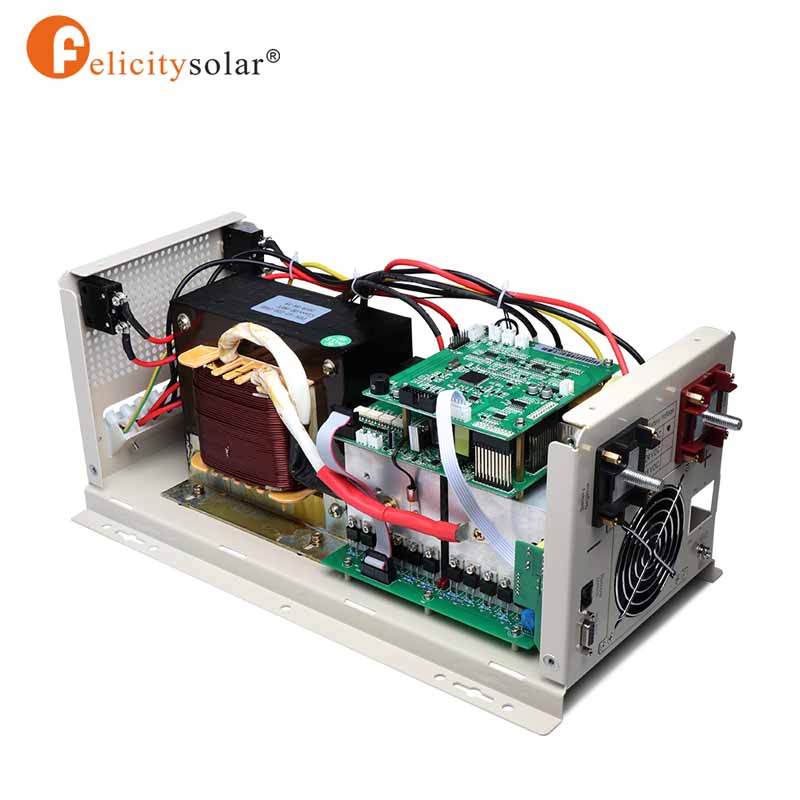

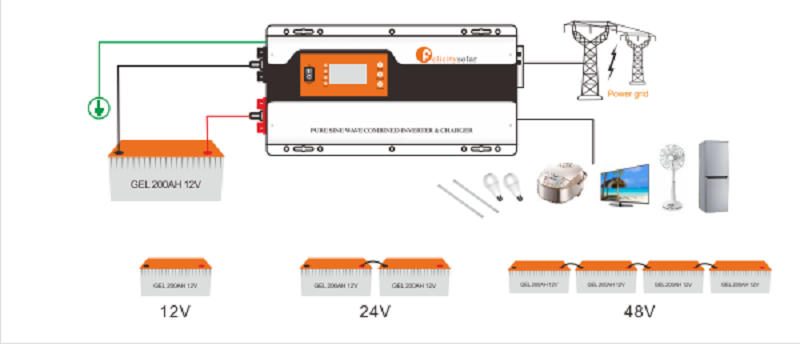

SYSTEM DIAGRAM :
Packaging
PRODUCTION CASE:
Industrial solar power system is more and more popular because it is an effective solution to supply
continuous power for unstable power area in a envrionmental-friendly way. By now, we have installed
power plant in various countries, such as Mali, Nigeria, Columbia and Panama, etc.
FQA
1. Can we use this inverter with AC electricity?
Yes, Felicitysolar pure sine wave inverter can hybrid AC, generator, solar, UPS electricity.
2. If we use DC and AC electricity both, which one will be first?
Felicitysolar pure sine wave inverter is AC first.
3. How about the efficiency of this inverter?
Felicitysolar pure sine wave inverter has 80% power efficiency.
