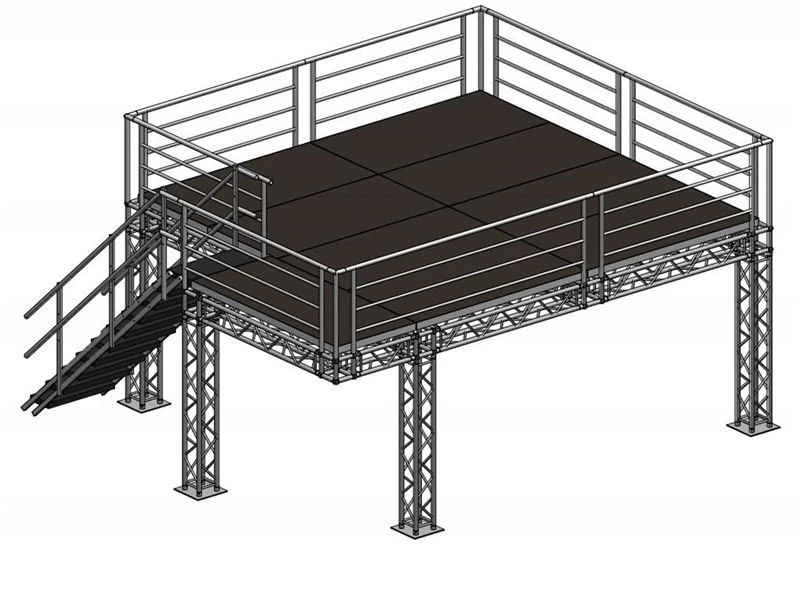

3.5m Portable Mobile Concert Stage Truss Systems:
Lighting Truss Modular Stage System is supported by Aluminum Square Truss ITSC-CS29 Structure. Its stage topping is combined with heavy duty aluminum frames with 18 mm thick plywood. And mobile concert stage topping dimensions is usually 1.22 x 2.44 m /pcs (other dimension customized)
Any height can be adjustable just with additional Trusses Segments.
Features:
-
Waterproof and anti-slip for outdoor and indoor concert events
-
Heavy Duty Loading Capacity for big concerts and boxing races.
-
Interconnected framework acting as ballast systems for truss roof constructions
-
Factory price only
Disadvantages:
-
The stage topping is approximately 50 kgin weight, and a big heavy for manual installation.
-
Since there are no screw jacks, the stage system is usually only installed on the even floor.
Specification:
|
Material
|
Aluminum Alloy 6061-T 6
|
|
Dimensions
|
4.88 m x 4.88 ( 16 x 16 ft )
|
|
Types
|
Square
|
|
Main tubes
|
50 x 3 mm
|
|
Stage Topping
|
18 mm plywood, anti-slip, waterproof, with heavy duty type aluminum frame
|
|
Self-weight
|
Approx. 700 kg
|
|
Volume
|
10 m 3
|
|
Capacity
|
15000 kg
|
Application:
The Lighting Truss Stage System is combined with lighting truss structure to set up more than 2 m height stages systems for hire, boxing ring, TV studios, VIP Zone for audiences, ect.
Problems:
Stage truss systems are must to install the whole system indoor or on an even floor. And it needs more than 2 people to install the whole systems compared with the common Modular Stages Decks.
