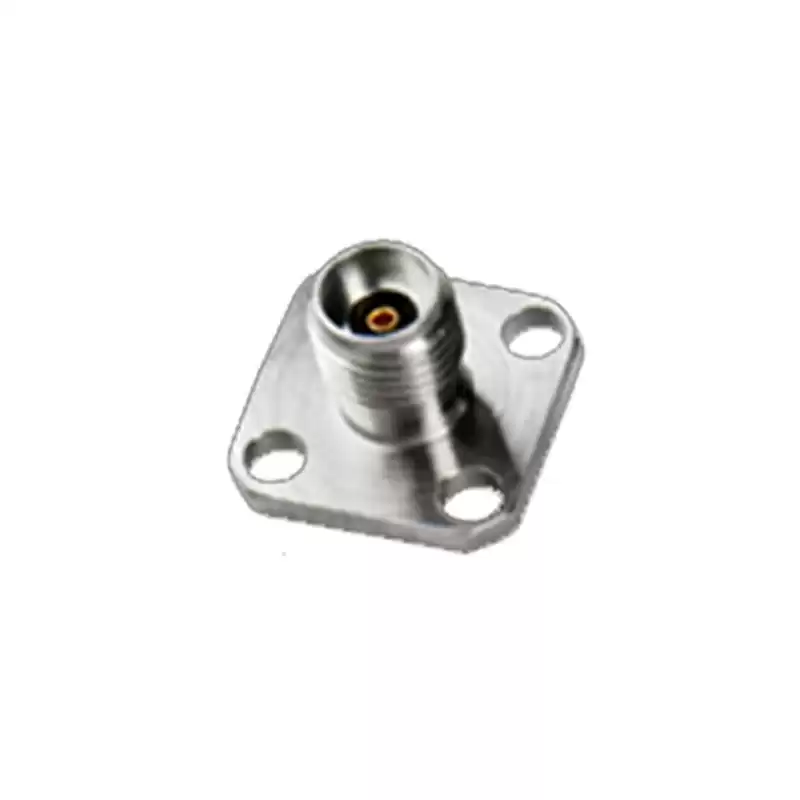

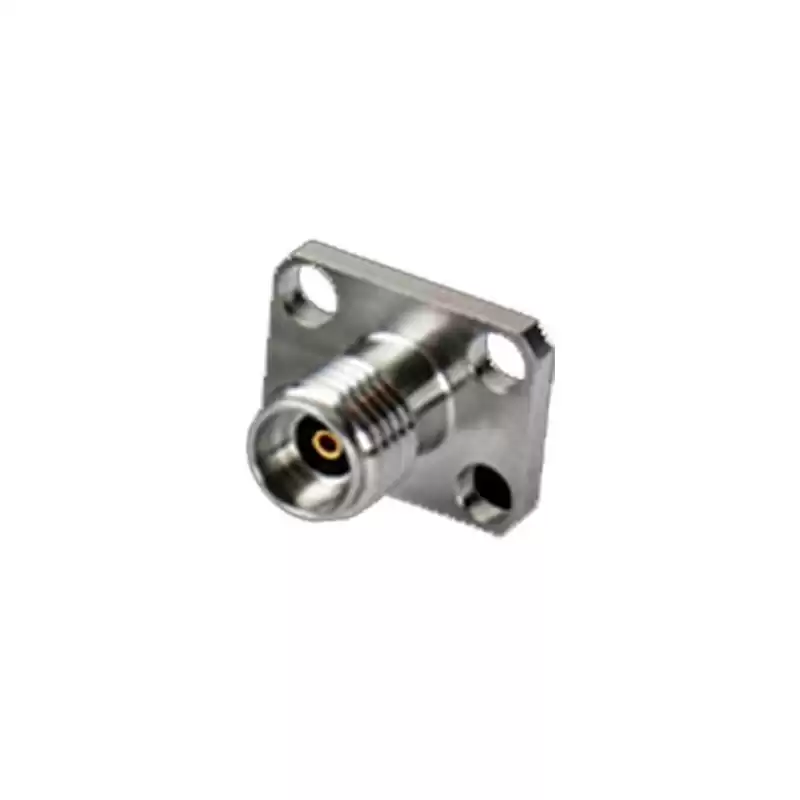

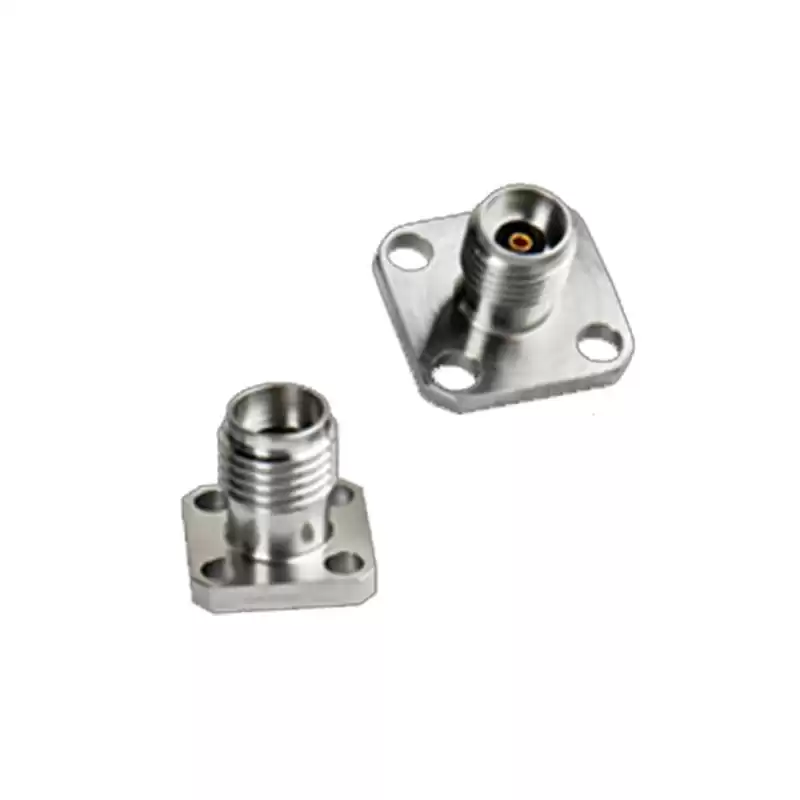

3.5mm Precision Female Connector Panel jack-accepts pin 4 holes
The 3.5mm RF Coaxial adapters(also known as 3.5mm, K connector, K Type, SMK adapter) have 3.5mm female, male or sexless (jack, plug or genderless) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female, male or sexless (jack, plug or genderless) 3.5mm adapter coaxial interconnects are between series or in-series. Our high quality 3.5mm adapter products include 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N, SMA, SMP or SSMA side 2 interfaces.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 ohms |
| Frequency Range |
DC to 40 GHz |
| DC to 40 GHz |
| VSWR |
Straight:：1.3 max |
| Voltage Rating (at sea level, in V rms,50Hz) |
500 max |
| Dielectric Withstanding Voltage (at sea level, in V rms,50Hz) |
1500 max |
| Insulation Resistance |
5000 M min |
| Insertion Loss |
0.03 x SQRT F(GHz) max |
| Contact Resistance |
Center Contact：2.0 m max |
| Out contanct：0.4 m max |
| MECHANICAL DATA |
|
| Mating |
Threaded Connection |
| Durability |
500 matings max |
| Coupling Nut Torque |
8 – 10 in-lbs |
| Coupling Nut Retention Force |
60 lbs max |
| Contact Captivation |
6 lbs max |
| Cable Retention |
.085, SFT-316 |
| ENVIRONMENTAL DATA |
|
| Temperature Range |
-55℃ to +125℃ |
| Thermal Shock |
US MIL- STD 202, Meth. 107, Cond. B |
| Vibration |
US MIL- STD 202, Meth. 204, Cond. D |
| Corrosion |
MIL-STD-202，Method 101,Condition B |
| Temperature Cycling |
MIL-STD-202F, Method 213B, Condition A |
| MATERIAL DATA |
|
| Connector Body |
Steel, CRES Alloy Type 303，Passivated Plating |
| Center Contact--Male |
Beryllium Copper per QQ-C-530，Gold Plating |
| Center Contact--Female |
Beryllium Copper per QQ-C-530，Gold Plating |
| Insulator |
PEEK |
Applications
- 5G Wireless Communication
- high-frequncy products
- test sets
- instrumentation cables
