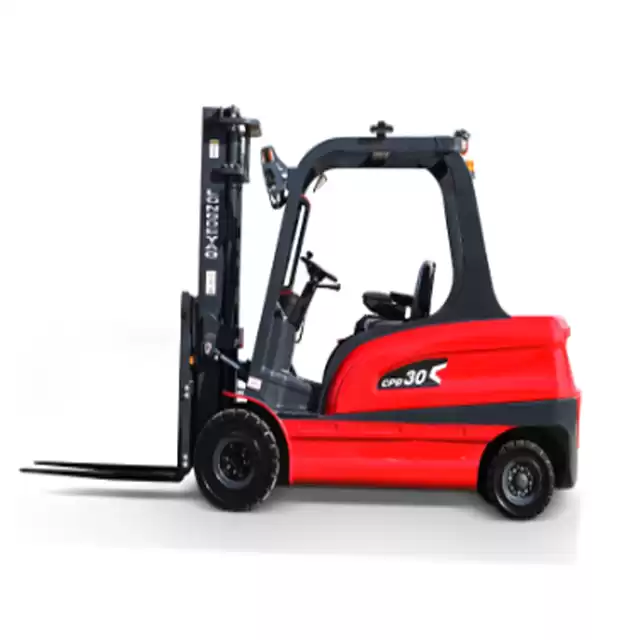

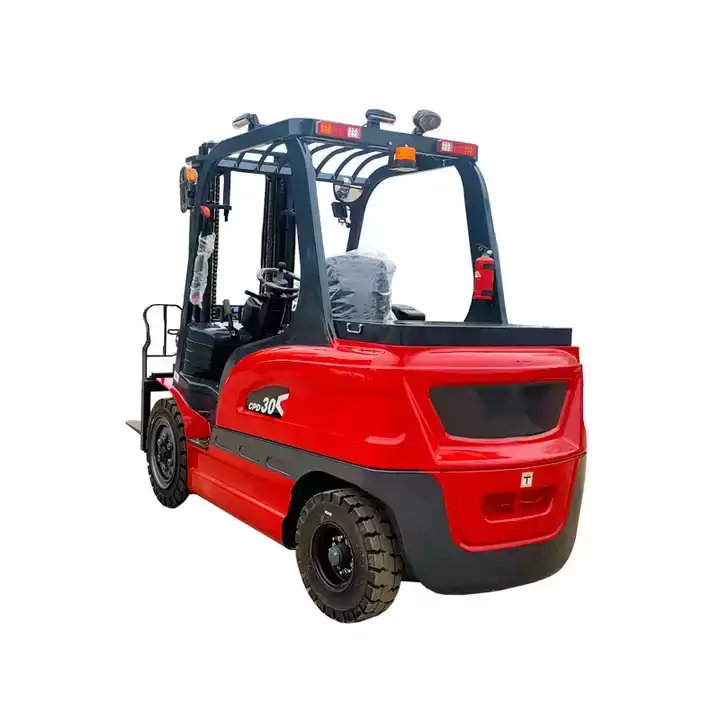

3.5T load Counter balance electric forklift for material handling

Counter balance electric forklift.1T-10T available,widely used to warehouse material handling and port load and unload

Facebook Twitter Pinterest LinkedIn 分享

Qianghang counter balanced forklift sincerely appreciate our trading partners help us sell our electric forklift models to most Countries of the world,Our development won't leave out  help from friends coming from all business .We welcome customers all over the world to come to visit us and make deals with our material handling vehicles.

We have large scale factory for material handling forklifts in Anhui,China .We not only have A grade modern facilitities and automated production line

We cooperate with our factory to attend numerous fairs in China every year,such as : Carton fair in Guangzhou,Bauma fair in Shanghai and Beijing fairs

Our factory loates at Anhui,China,which is about 2-4H to us by airplane ,high speed train and car from Shanghai City,welcome to visit us.

Quick details

  Features
1.1 model     CPD35A
1.2 power type     electric
1.3 operation     sit down
1.4 load center distance Q kg 3500
1.5 load center distance C mm 500
1.6 front overhang X mm 420
1.7 wheel base y mm 1860
  weight
2.1 dead load(battery included)   kg 3700
  tyre,underpan
3.1 trye type     solid tyre
3.2 driving wheel size(dia*width)   mm 28x9-15
3.3 steering wheel size(dia*width)   mm 650-10
3.4 (x= driving wheel)driving wheel,steering wheel qty   mm 2X/2
3.5 driving wheel distance b10 mm 1000
3.6 steering wheel distance b11 mm 990
  size
4.1 mast ,fork tilt α/ β (°)   5/9
4.2 the height of the mast after falling h1 mm 2180
4.3 standard mast max lifting height h3 mm 3000
4.4 mast height at its highest lifting h4 mm 4100
4.5 cockpit height h6 mm 2100
4.6 seat height h7 mm 1200
4.7 traction pin height h10 mm 550
4.8 overall size l1 mm 3860
4.9 distance to fork vertical l2 mm 2750
4.10 overall width b1/ b2 mm 1220

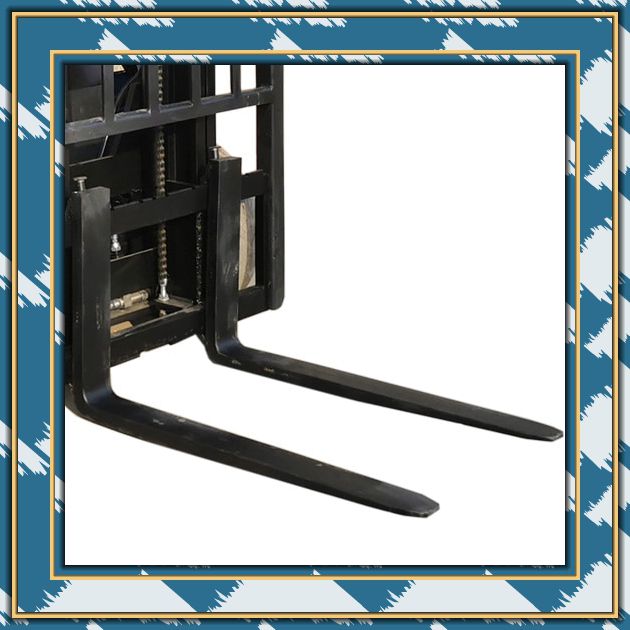

4.11 fork size s/ e/ l mm 45X122X1070
4.12 fork max width b3 mm 1240
4.13 full load mast clearance m1 mm 160
4.14 min body clearance m2 mm 150
4.15 aisle width for tray 1200*1000 Ast mm 4100
4.16 aisle width for tray 800*1200 Ast mm 4300
4.17 radius of turning circle Wa mm 2480
  performance
5.1 walking speed,full load/empty load   km/ h 12/13
5.2 lifting speed,full load/empty load   m/ s 0.35/0.45
5.3 falling speed,full load/empty load   m/ s 0.4/ 0.36
5.4 climbing speed,full load/empty load   % 14/15
5.5 working brake type     hydraumatic+mechanical
5.6 paring brake type     mechanical
  motor,power
6.1 driving motor rate powerS2 60min   kW 11.5
6.2  lifting motor rate power s3 15%   kW 12
6.3 battery pressure/nominal capacity k5   Ah 48V500
6.4 driving control type     AC



Qianhang forklift manufacturer 1.2t,1.6t,2t,2.5t,3t 3.5t 4t,5t new lithium battery forklift truck electric forklift/folklift

electric forklift


Brief introduction for our material handling forklift

1-----With advanced technology and design;
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard

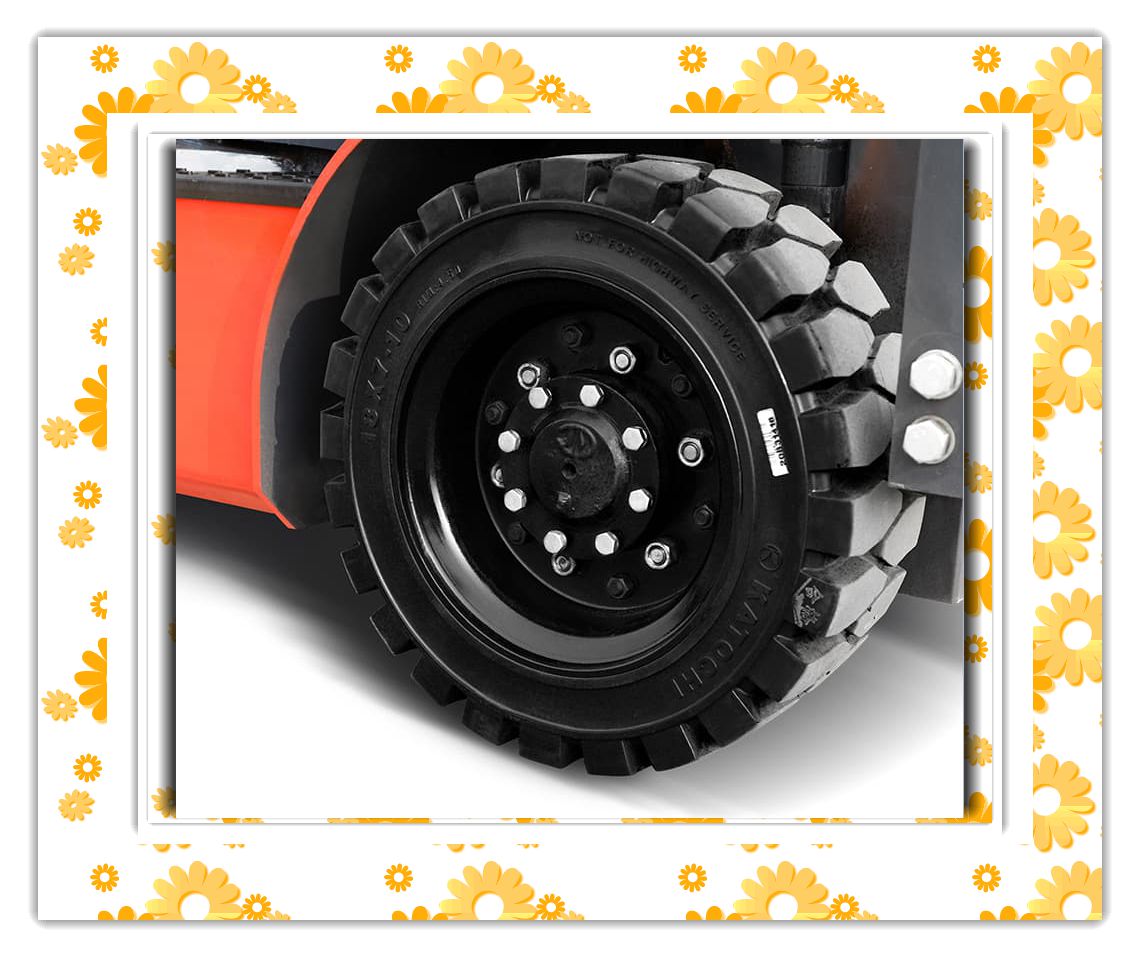

5-----Wear-resisting solid tire
6----- AC motor , less noise
7-----powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 30%.
10----Comfortable seat with safety belts,with large operation space.
11----All use lithium battery, charging efficiency is higher, more lightweight, only takes 2.5 hours to recharge










Main features

1)Environmentally friendly,zero emission,certificates available

2)World famous controller, to achieve high precision walking and upgrade control, high working effect

3)Powerful lithium battery,work for 6H or more

4)Advanced remote drive unit, compact structure, lower center of gravity, more reasonable layout, more stable drive

5) Lifepo4 battery for your choice, Large capacity battery, strong endurance

6)  Dynamic load-sensitive priority steering system for faster steering response and smoother ride.

Our details for your refer



After sales service



  • #
    Warranty
    We grants our customers a 12-months period warranty for any forklifts purchased from us.duriing the period of warranty,in case of defect of material or workmanship,defective parts will be replaced for free charge as compensation at our discretion
  • #
    Spare parts
    We are delicated to provide our customer high genuine spare parts with high quality,exact fitness and appropriate function.No matter where you are,pls submit your spare request, we promised to send you our fast and appopreciate
  • #
    Installation
    We are able to provide you with overall installation instructions ,allowing you to start a proper operation of our forklifts. If necessary,engineers can send to you to give face to face installation and instructions
  • #
    Training
    We promised to provide training to our buyers from any areas.our training includes: product training ,operation training and maintaince know-how and technical trainings.All of which are tailored to meet with your individual needs

--
