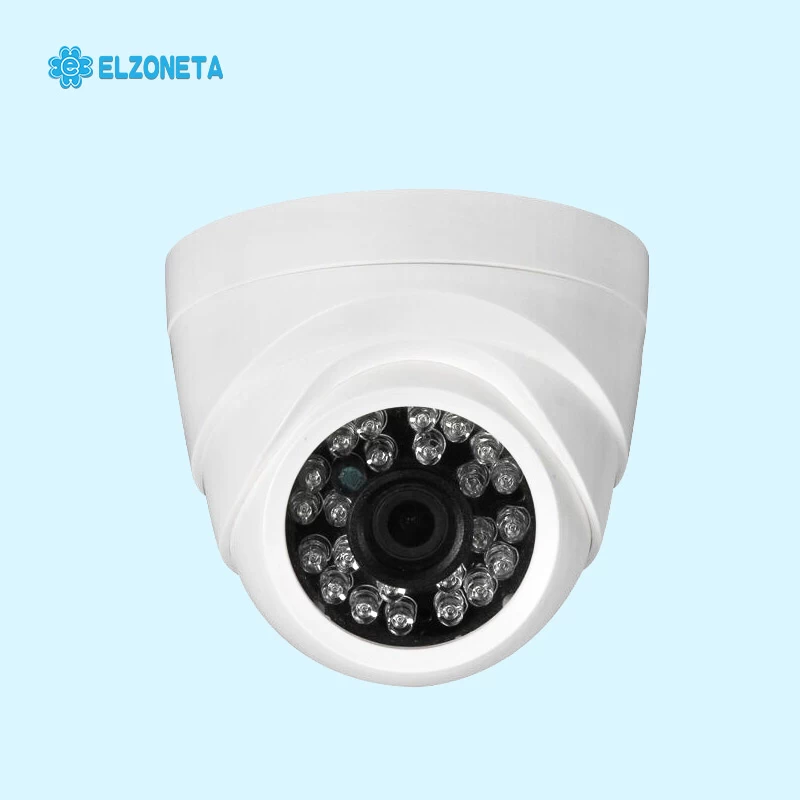

EC-AB01S 2.0MP AHD Dome Camera
Features:
1.) Type: IR Dome Camera
2.) Resolution: 2.0 megapixel
3.) Lens: 3.6mm HD fixed lens
4.) IR Leds: 24pcs IR leds
5.) IR range: up to 20meter
6.) Material: Plastic
7.) Color: White
8.) Product Guarantee: 2 years
Specification:
|
Camera |
|
|
Model No. |
EC-AB01S |
|
Image Sensor |
Sony IMX323 |
|
Effective Pixels (HxV) |
1920(H)*1080(V) |
|
Signal System |
PAL / NTSC |
|
Mini Illumination |
0.02lux(IR off) 0.00lux(IR on) |
|
Lens |
3.6mm HD fixed lens |
|
Lens Mount |
M12 |
|
Day & Night |
ICR |
|
IR Leds |
￠5X24PCS |
|
IR range |
up to 20meter |
|
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
AES |
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec |
|
S/N Ratio |
> 48dB（Auto Gain Off） |
|
4in1 Function |
|
|
Output Model |
TVI/AHD/CVI/Analog is optional |
|
OSD Menu |
OSD cable is optional |
|
WDR |
D-WDR |
|
DNR |
3D-DNR |
|
General |
|
|
Operating Condition |
-10 °C - 50 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±15% |
|
IP Rate |
IP65 |
|
Weight |
0.29 kg |
|

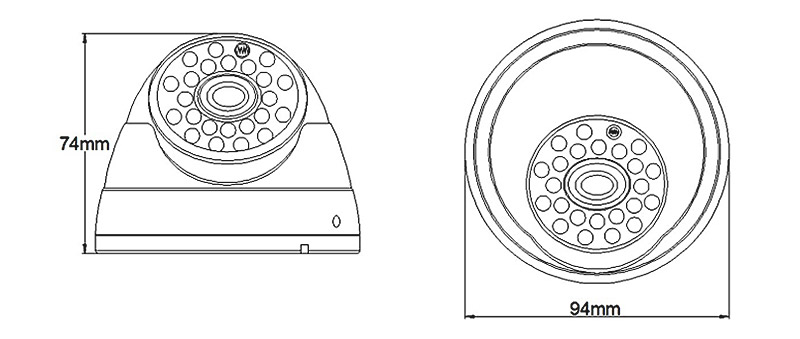

Dimension |
92(L)*92(W)*65(H)mm |
