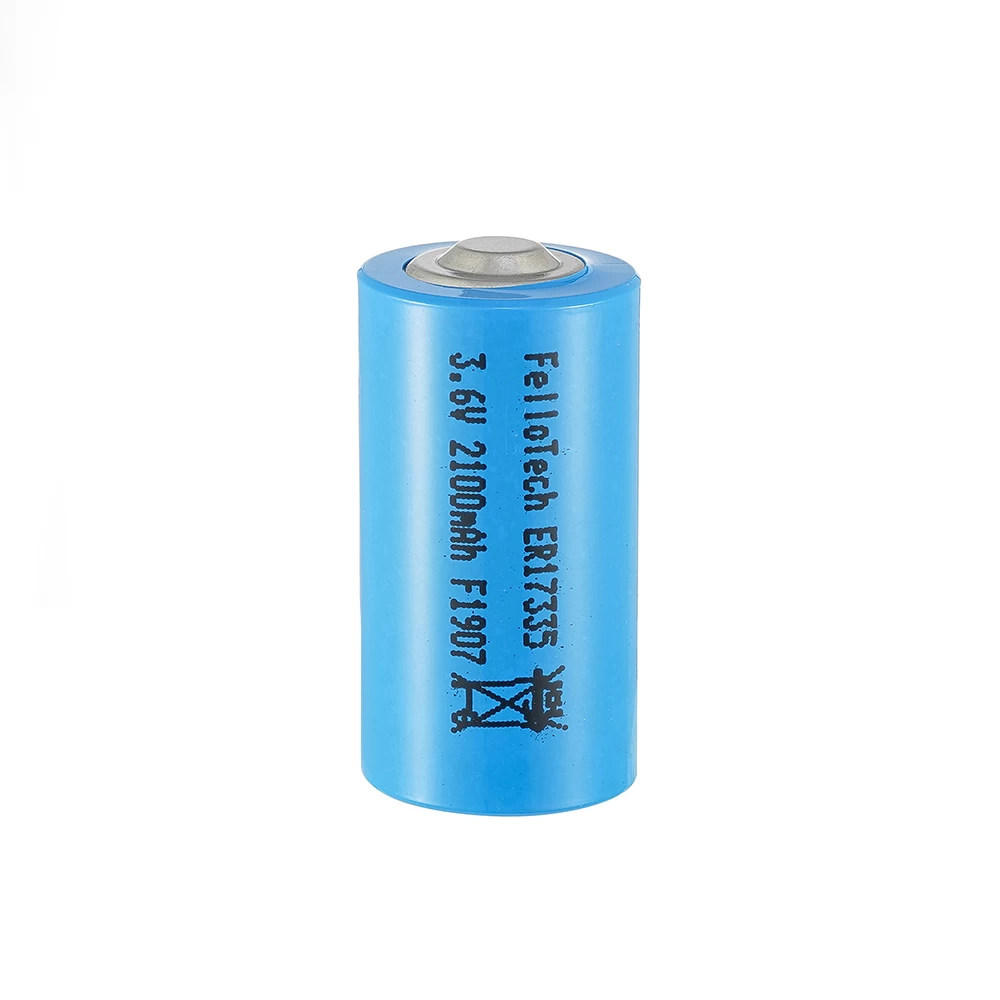

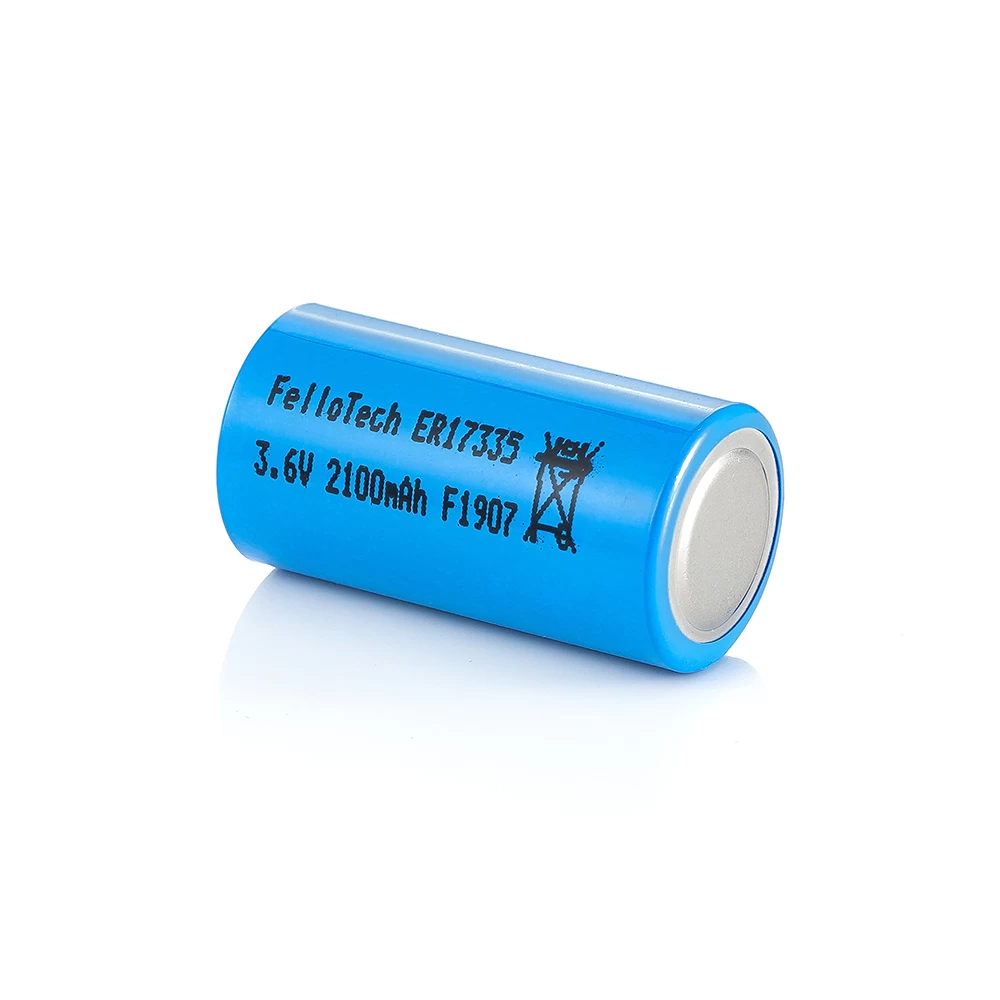

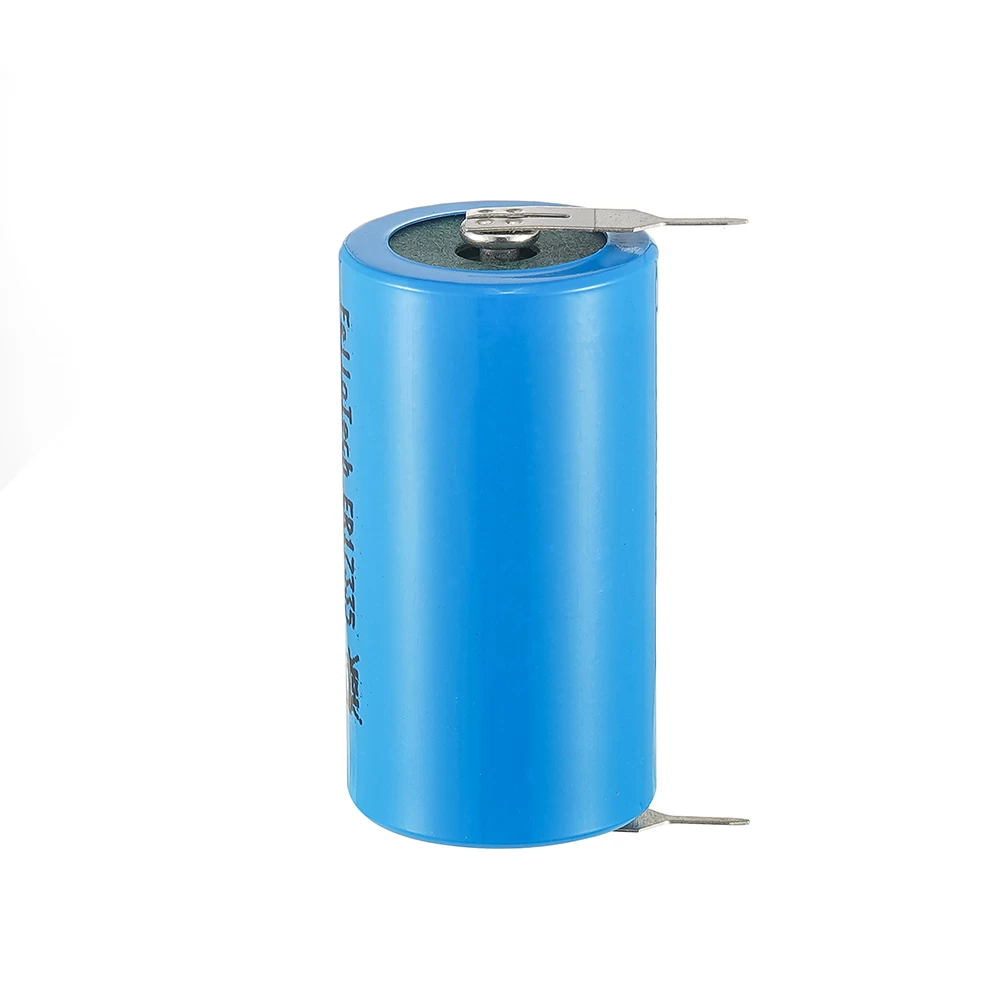

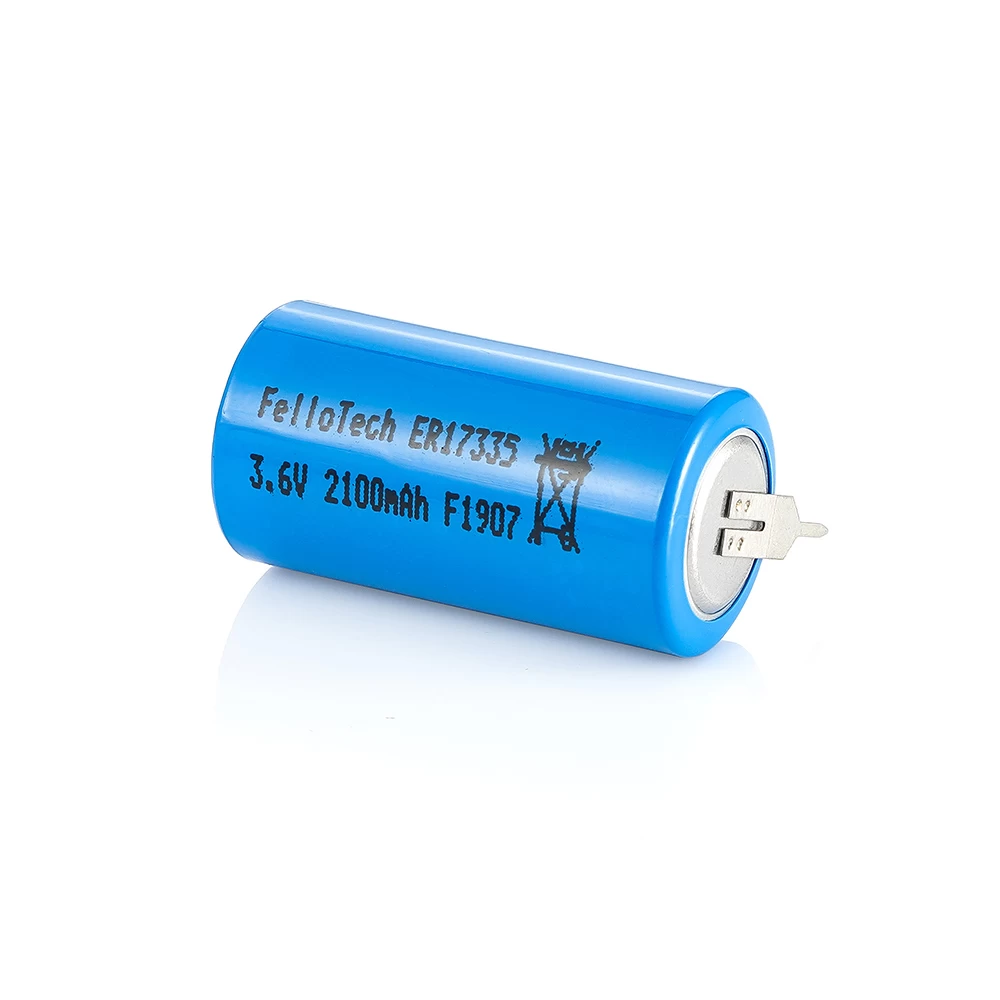

3.6V 2100mAh 2/3A size LiSOCL2 batteries ER17335


  • Diameter (mm)17
  • Max Peak discharge current (mA)200
  • Max continuous discharge current (mA)100
  • Standard discharge current (mA)2
  • Nominal Capacity(mAh)2100
  • Nominal Voltage (V)3.6
  • Size2/3A
  • Height (mm)33.5
  • Weight (g)21

3.6V 2100mAh 2/3A size LiSOCL2 batteries ER17335



Nominal Voltage

3.6V

Nominal Capacity

2100mAh

@0.5mA Discharge Current to 2.0V Cut-off, +25 oC

Standard Discharge current

2.0mA

Maximum Recommended current under continuous discharge

100mA

Maximum Recommended current under pulse discharge

200mA

Operational temperature range

-55- +85

Nominal Weight

21g
