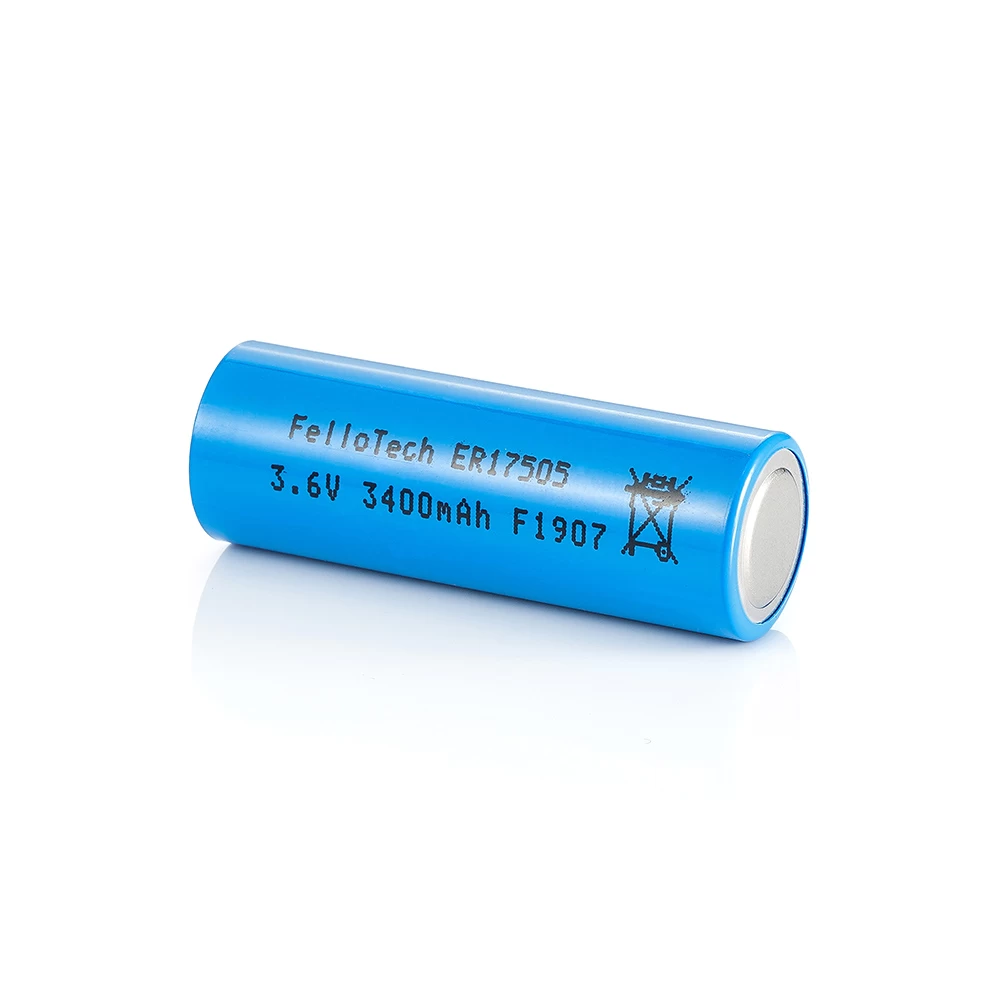

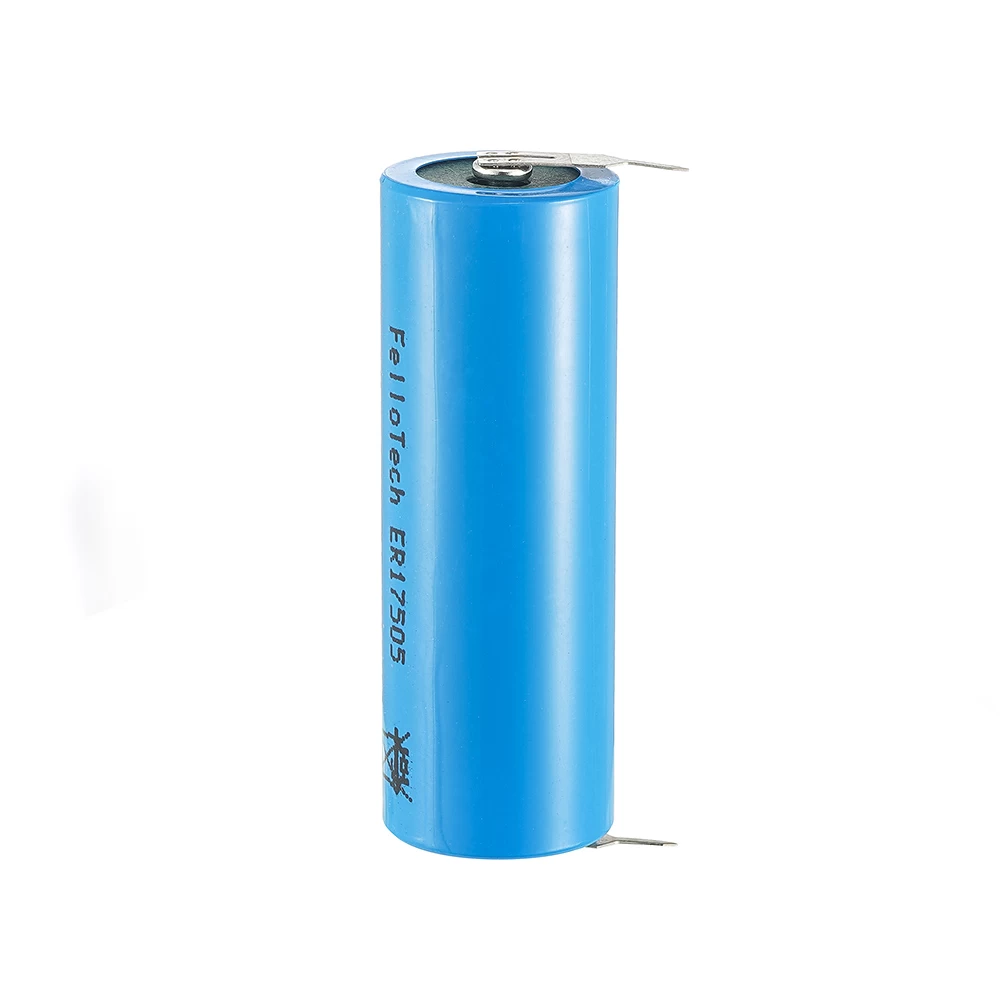

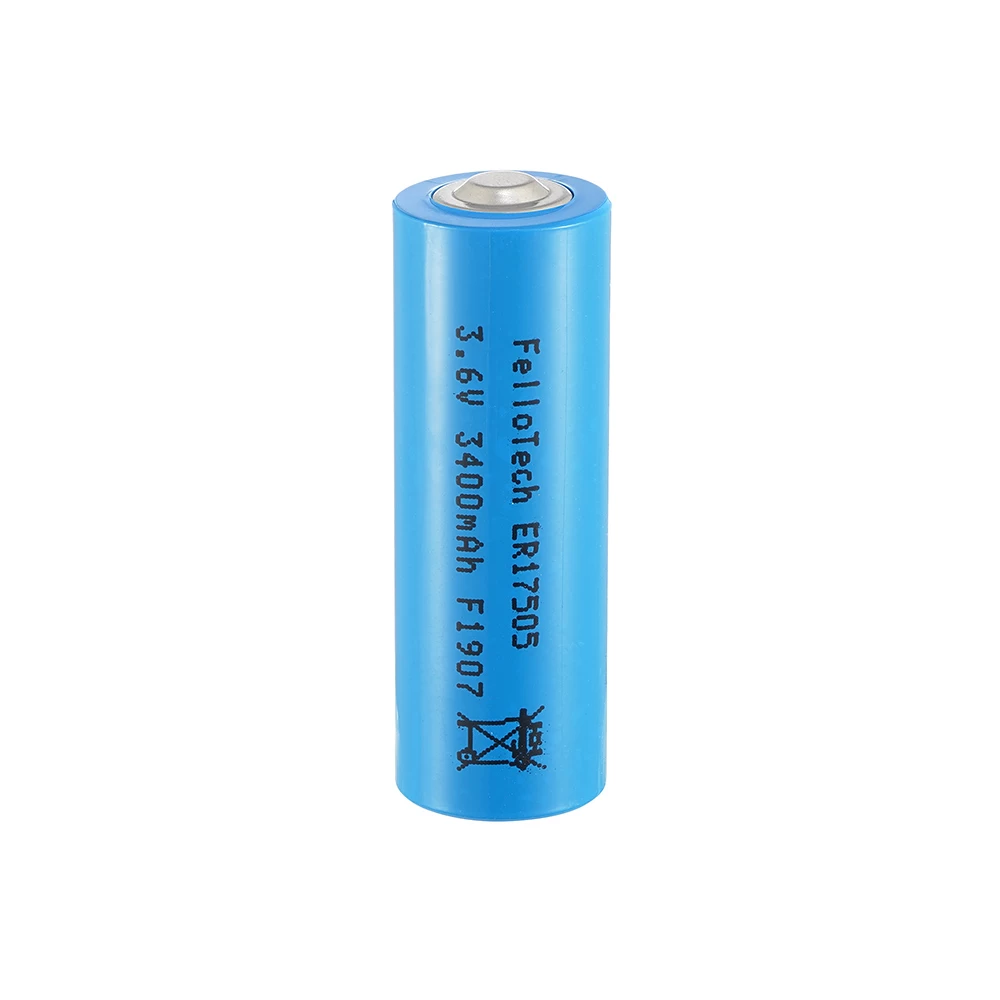

3.6V 3400mAh A size lithium primary battery ER17505


  • Height (mm)50.5
  • Diameter (mm)17.5
  • Max Peak discharge current (mA)200
  • Max continuous discharge current (mA)100
  • Standard discharge current (mA)2
  • Nominal Capacity(mAh)3400
  • Nominal Voltage (V)3.6
  • SizeA
  • Weight (g)25

3.6V 3400mAh A size lithium primary battery ER17505


Nominal Voltage

3.6V

Nominal Capacity

3400mAh

@0.5mA Discharge Current to 2.0V Cut-off, +25 oC

Standard Discharge current

2.0mA

Maximum Recommended current under continuous discharge

100mA

Maximum Recommended current under pulse discharge

200mA

Operational temperature range

-55- +85

Nominal Weight

25g
