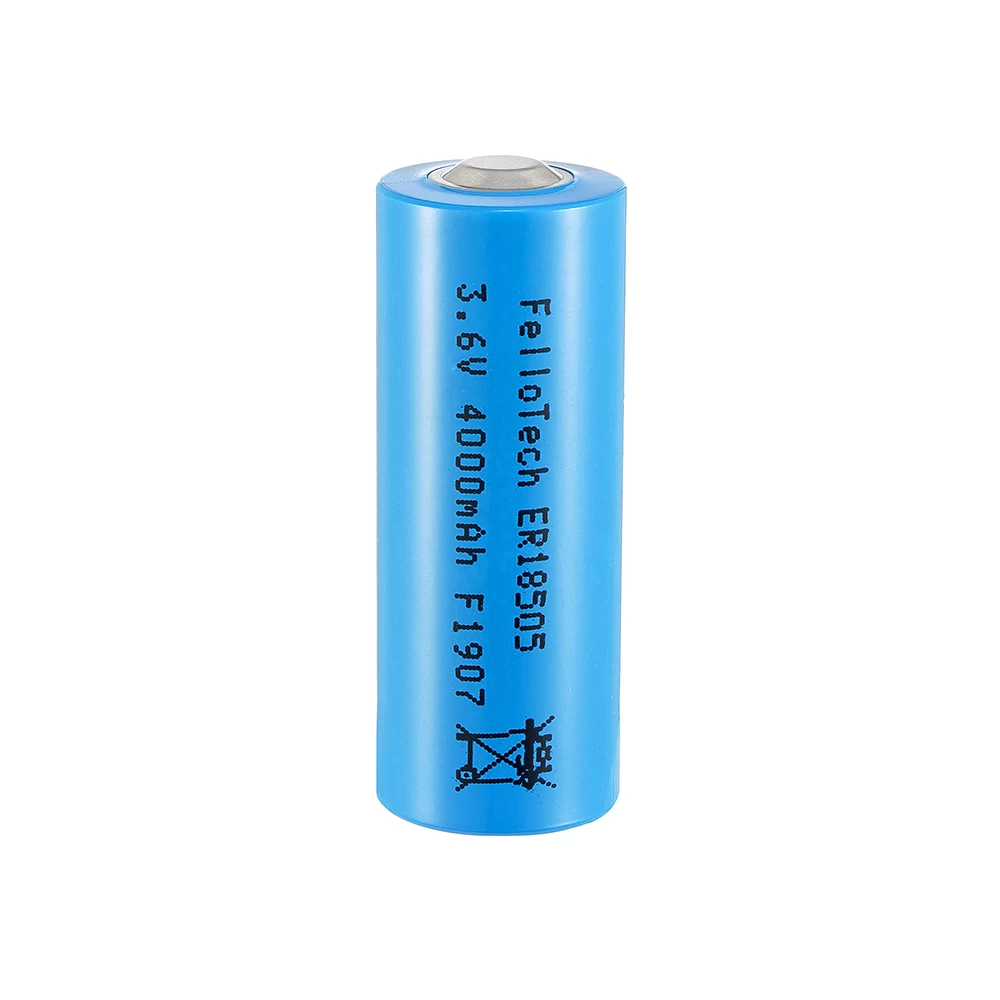

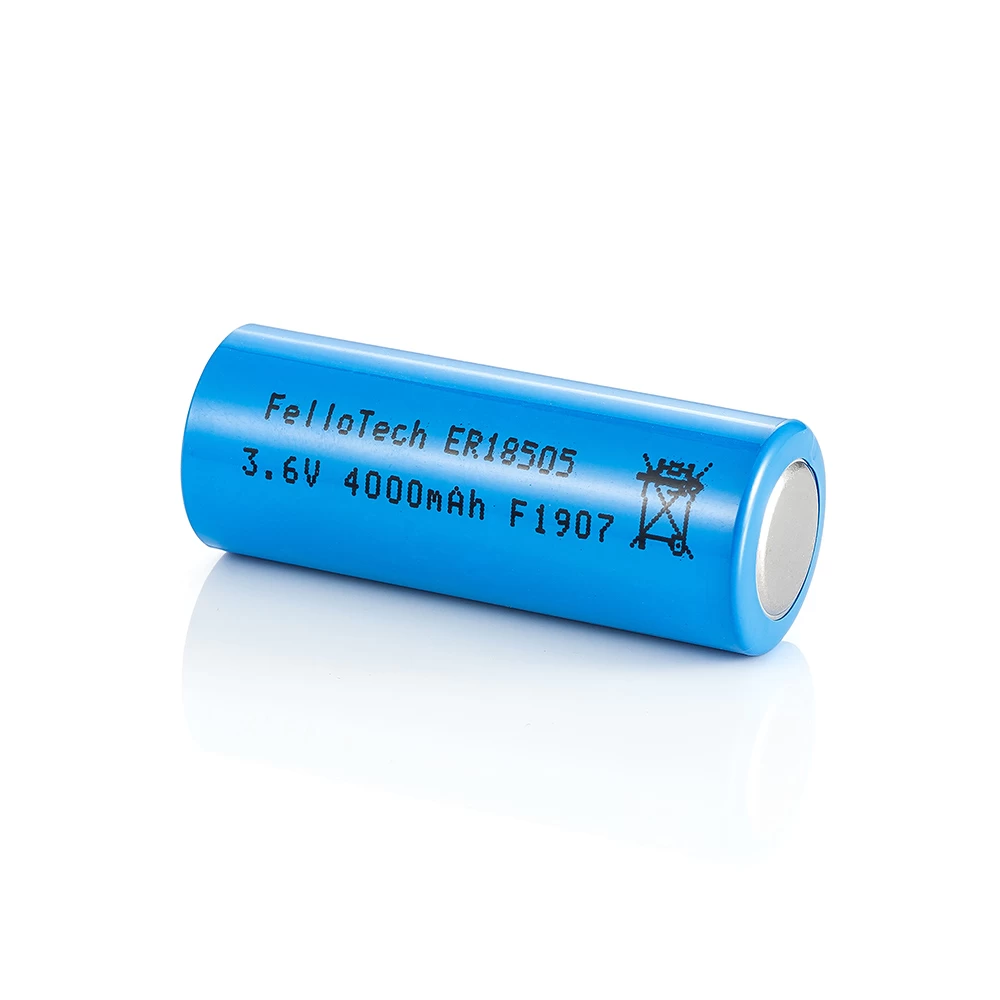

3.6V 4000mAh primary lithium primary batteries ER18505


  • Height (mm)50.5
  • Diameter (mm)18.8
  • Max Peak discharge current (mA)200
  • Max continuous discharge current (mA)120
  • Standard discharge current (mA)2.0
  • Nominal Capacity(mAh)4000
  • Nominal Voltage (V)3.6
  • Size-
  • Weight (g)30

3.6V 4000mAh primary lithium primary batteries ER18505


Nominal Voltage

3.6V

Nominal Capacity

4000mAh

@0.5mA Discharge Current to 2.0V Cut-off, +25 oC

Standard Discharge current

2.0mA

Maximum Recommended current under continuous discharge

120mA

Maximum Recommended current under pulse discharge

200mA

Operational temperature range

-55- +85

Nominal Weight

30g



Product Tags lisocl2 battery          lisocl2 batteries          lisocl2 lithium battery          3.6 lisocl2 batteries          3.6v lisocl2 batteries          lisocl2 lithium batteries          3.6v lisocl2 battery          1 2aa lisocl2 battery          3.6v lisocl2 battery er18505
