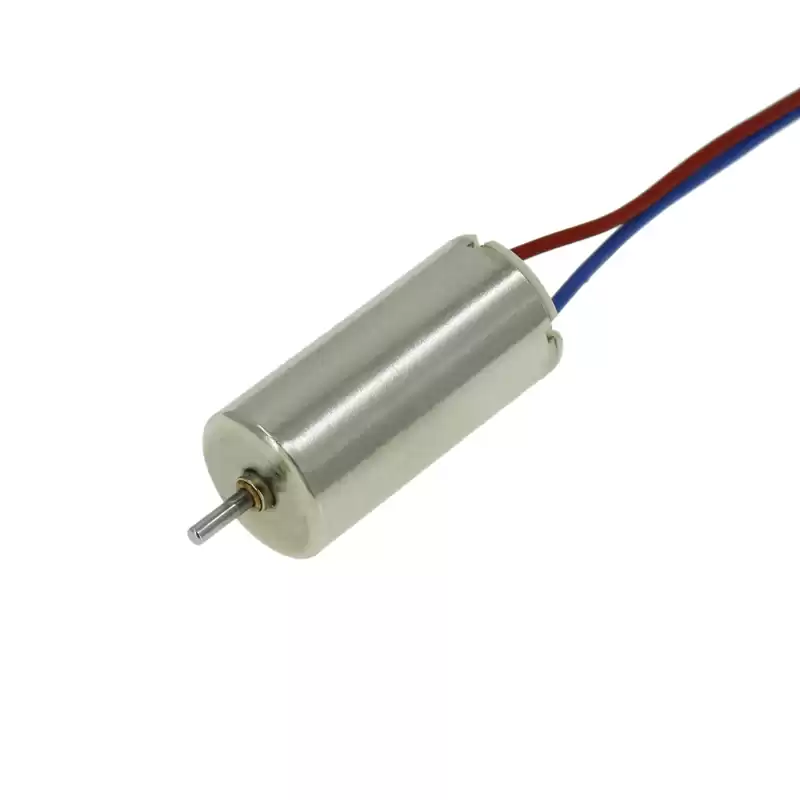

3.7V DC Brushed Coreless Motor for Model Aircraft

DC brushed motors for toys are designed for high starting torque in continuous movement. Starting, stopping and accelerating are done quickly.

About this item

• Dimension of the motor is 6 mm(D) x 14 mm(L) / 0.24" (D) x 0.55" (L).

• Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 14.2 mm / 0.55".
• Rated Voltage Range: DC 3.7V | Speed: 40000 RPM (the actual speed may be high or low).
• Weight: 1.8 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

DC Brushes Micro Motor 6D614

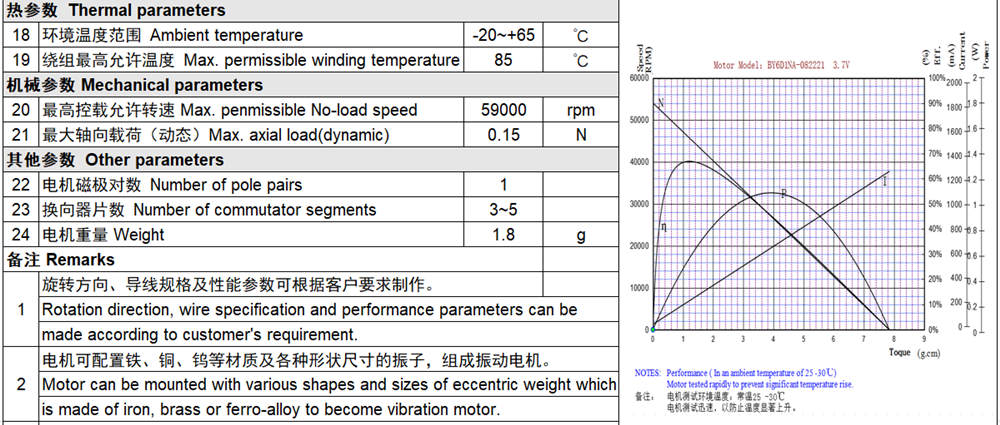

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

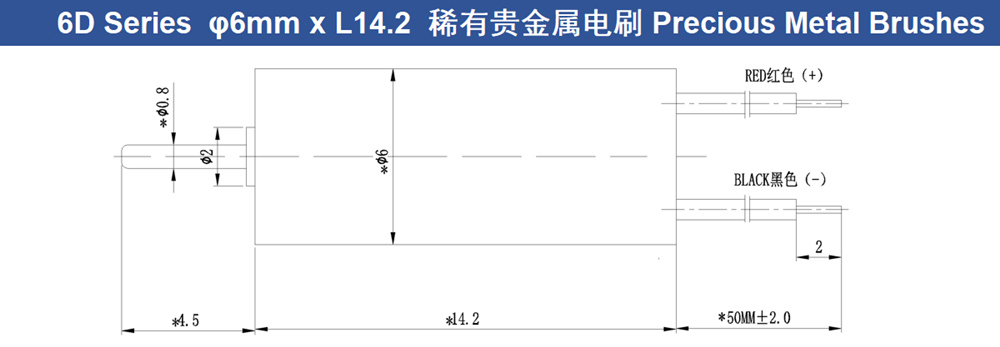

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Energy efficient coreless motor design;
• Compact structure, ultra-low sound and stable operation;
• Use a copper alloy housing with better electromagnetic interference protection;
• Coreless Motor can be used in model aircraft helicopter and a variety of electric drive products;
• Powerful motors perform great when speed up, quickly increase or decrease altitude, and stop immediately.

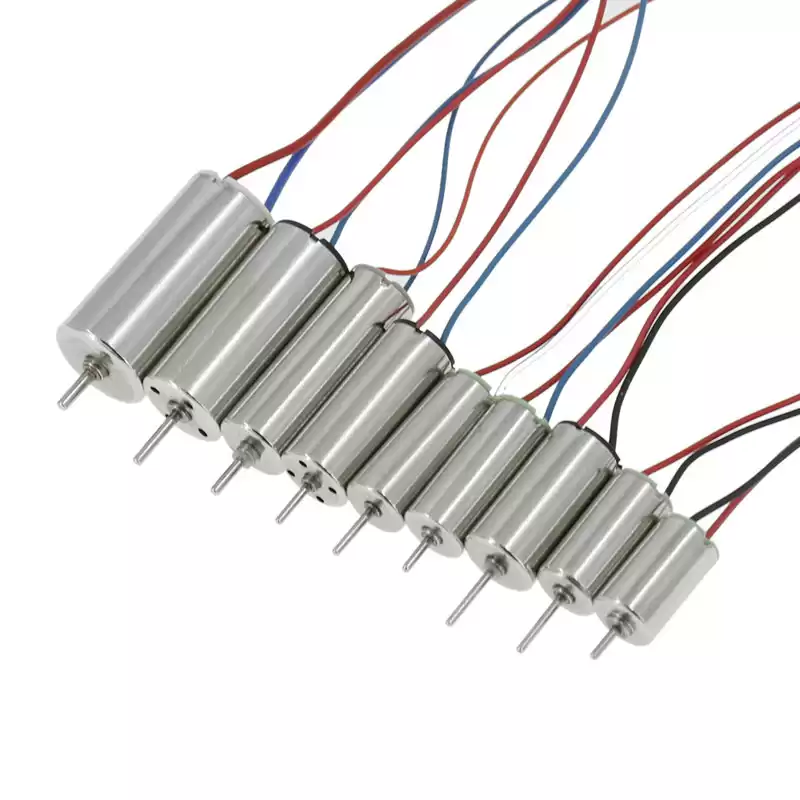

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

Brushes coreless DC micro motor can be mainly applied to various aircrafts, including aviation, aerospace and model airplanes.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
