Item: 3 Axle 40,000L tanker trailer with steel coil for steam heating
1. SUNSKY 40000 liters Tanker Semi-trailer can be designed to carry fuel，diesel，drink water milk and other chemical liquid.
2.Opting for high tensile low carbon alloy steel,heavy duty and extra durability design,ensure the trailers quality and safe transportation.
3.Aluminum alloy discharge with cover
4.Equipping famous brand spare parts，some easily broken parts will be delivered with trailers and you can get cost price of parts from us once you use the SUNSKY trailer.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional
experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa,
Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
30,000L-45,000L 3-axle Tank Semi-trailer
|
|
Feature:
|
Carry Fuel, Oil, Diesel, Drink
water, Milk, Beer and other chemical liquid
|
|
Dimension(L*W*H):
|
11000*2500*3700mm(30,000L)
11700*2500*3750mm(40,000L)
|
|
Model
|
SS9350GRY
|
|
Material:
|
Carbon Steel
|
Stainless Steel
|
Aluminum
|
|
Compartment:
|
3-6
|
|
Capacity(kgs):
|
30,000L-45,000L
|
|
Tare weight(kgs):
|
10,000-11,000kgs
|
10,000-11,000kgs
|
6,000-7,000kgs
|
|
Kingpin
|
The world-famous JOST brand
bolt-in/welded type 3.5”/2”
|
|
Landing gear
|
JOST brand two-speed
manual operation 19”
|
|
Tire size
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle
|
Original BPW-12T/
FUWA-13T
|
|
Leafs spring
|
Germany type with
12 pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag
suspension
|
|
Brake system
|
One unit WABCO RE 4 relay valve; four units T30/30
spring brake chamber; two units T30 spring brake chamber; two units reliable
local brand 45L air tank; two units reliable local brand standard coppery
air-connector.
|
|
Manhole:
|
Aluminum alloy ø500mm(20”) manhole with aluminum
alloy cover; with breather valve;
|
|
Discharge Valve
|
Aluminum
alloy discharge valve with cover
|
|
Foot Valve
|
Pneumatic
control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
2
units 3”×6M factory PVC hose with quick coupling on
both ends
|
|
Vapor Recovery & Overfill system
|
Optional
|
|
Fire Extinguisher Carrier
|
2
units at the left of rear of tanker, include 2 units 8kg dry powder type fire
extinguisher inside
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket;
with brake light, turn light, reverse light, side light, reflector, fog
light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich
& Polyurethane painting
|
|
We can build the
trailers according to customer’s design and requirement
|

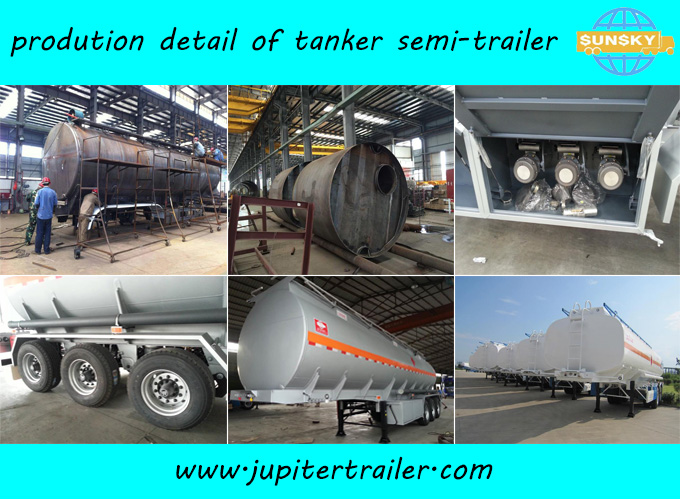

Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china,
one trading company in china and one company in Hong Kong.
We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30 years experience in the trailer manufacturing.
Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas
countries.
2)
We have more than 20 engineers to design the kinds of trailers according to the
requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we
can supply kinds of HOWO brand truck with competitive price.
