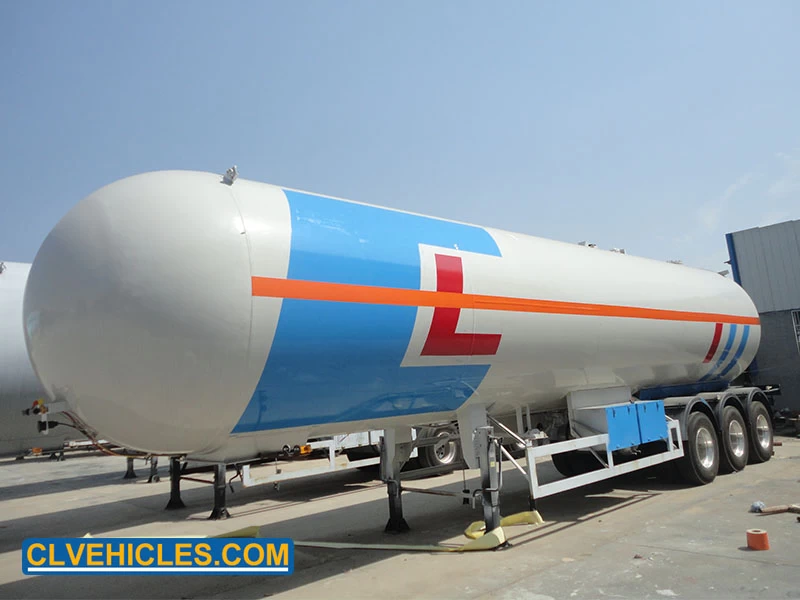

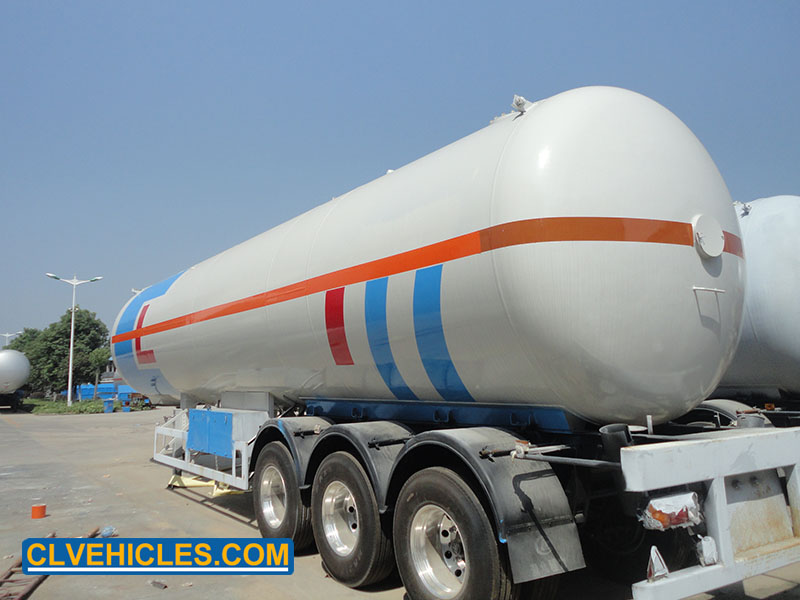

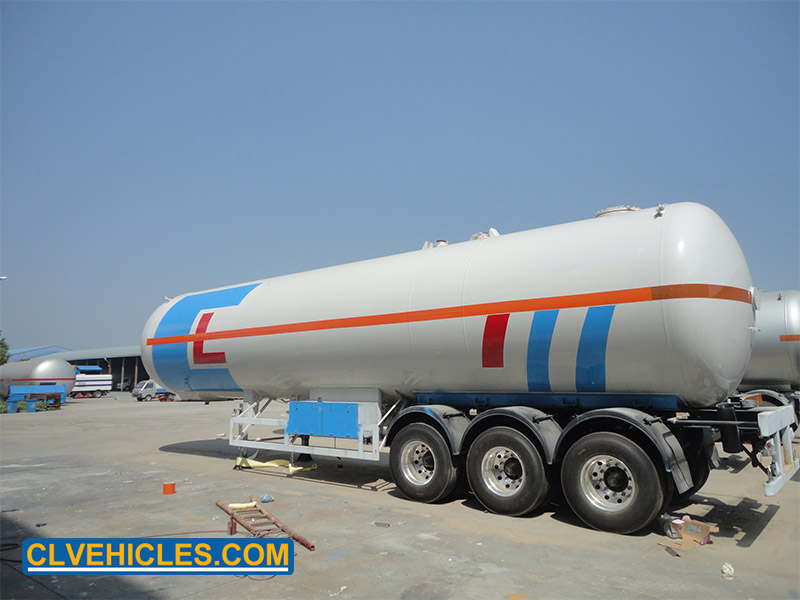

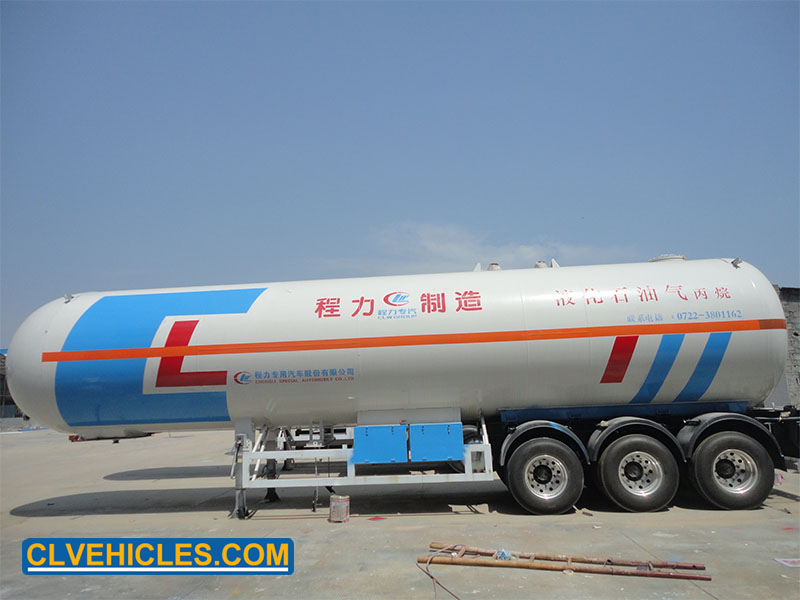

3 axle 49600 liter lpg road tanker semi trailer
The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Quick Details
|
LPG tank trailer size
|
12740*2480*3800
|
|
Propane tank capacity
|
49600 liter
|
|
Design temperature
|
50℃
|
|
Design pressure
|
1.77Mpa
|
|
Leak test pressure
|
1.77Mpa
|
|
Hydraulic test pressure
|
2.3Mpa
|
Applications
LPG tank semi trailer (also called propane storage tank semi trailer , lpg storage tank truck semi trailer ,lpg semi trailer ,lpg tank semi trailer ,lpg road tank semi trailer , propane semi trailer ,lpg gas semi trailer ,lpg transport semi trailer ,propane delivery semi trailer ) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dim-ethyl ether (DME), isobutene, etc
Competitive Advantages
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
|
Emergency shut off valve fore safety
|
|
|
|
Double side for discharge and loading ,double tool box and valve box
|
LPG dispenser optional with automatic fault detection and overload protection
|
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
