Truck description:
CNCSC Aluminium alloy fuel tank semi trailer(include oil tanker trailer,tank semi trailer,fuel tank trailer,trailer,diesel semi trailer,gasoline semi trailer,oil semi trailer,oil fuel tank semi trailer) is applies to transport different type of media,such as chemical liquid ,water,crude oil,lubricant, gasoline,diesel,propane,coal oil,and so on.
Structure:
Chassis frame,tank body,landing gear,euro standard manholes,kingpin,emergency venting device,fire extinguisher,anti-slip walkway,ladders,etc.
Advantage:
1..FUWA ,BPW,and other famous brand Axles.
2. FUWA ,JOST,and other famous brand Landing gear,two-speed manually operating, heavy duty.
3. Different King pin size : 2˝ or 3.5˝ ( 50# or 90 # ).
4. Painting: beautiful and durable. Pretreatment is first step,mechanical sandblasting to remove rust before painting,then two-component paint, two layers of primer and two layers of coat painting.
5. Safety Anti-static System
Technical Specification:
We are able to custom manufacture Aluminium alloy fuel tank semi trailer in a wide range of sizes and capacities as per customers' requirement.

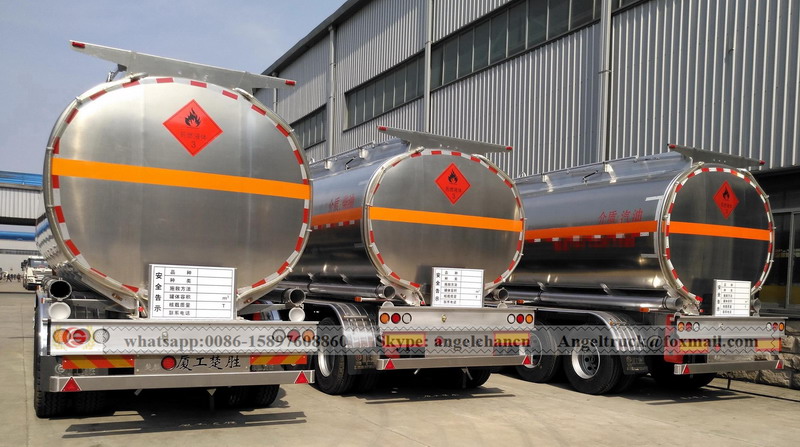

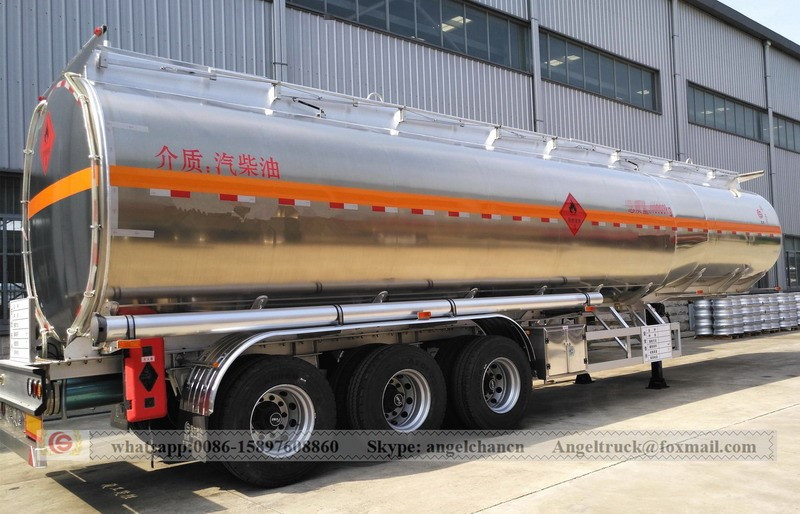

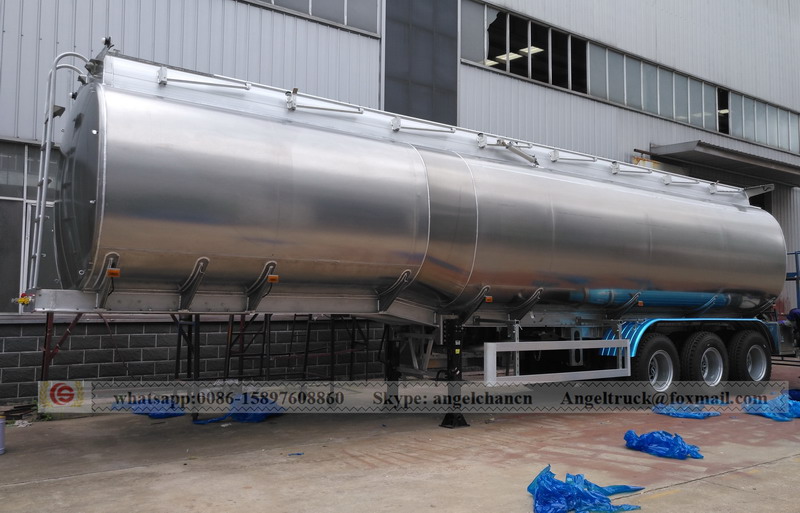

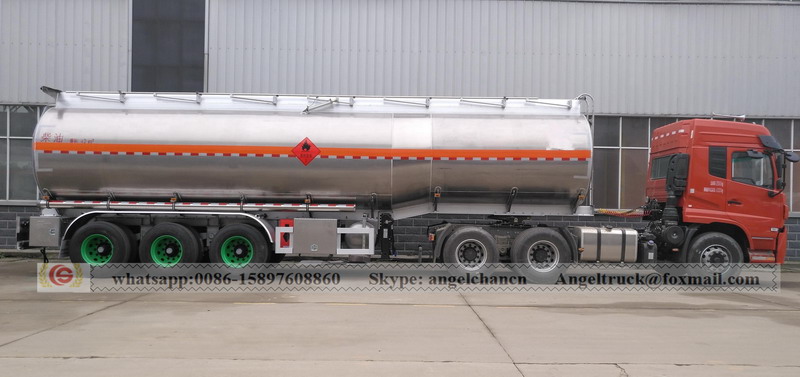

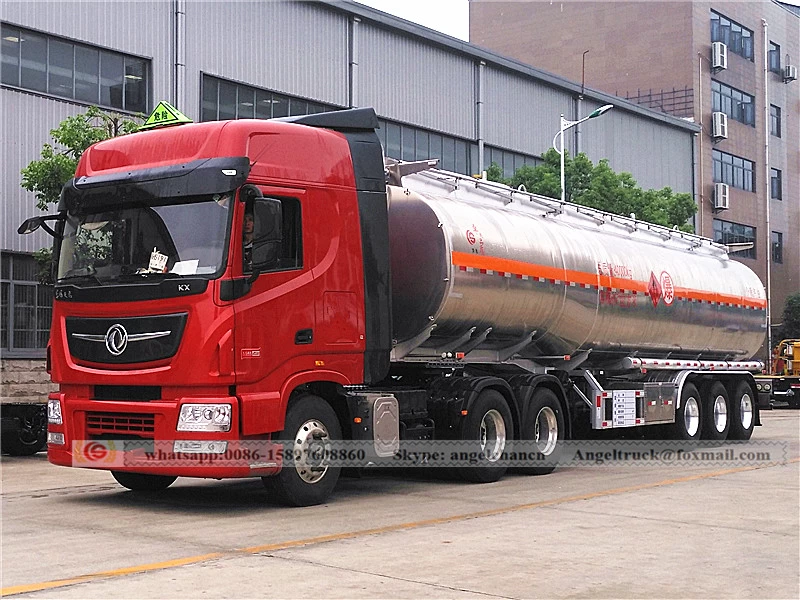

46000 Litres Aluminium alloy gasoline semi trailer
|
Truck Description
|
GVW (kg)
|
40000
|
|
Kerb weight (kg)
|
7000
|
|
Axles
|
3 axles , 13 Ton,FUWA
or BPW brand,or as your request
|
|
Overall
dimension (mm)
|
Length
|
12000
|
|
Width
|
2500
|
|
Height
|
3900
|
|
Tank dimension (mm)
|
Length
|
11500
|
|
Width
|
2495
|
|
Height
|
1940/2140
|
|
Tank and skeleton
|
Wheel base(mm)
|
6200+1310+1310 or as request
|
|
Tank material
|
Aluminium alloy
|
|
King pin
|
90# or 50 #
|
|
Landing gear
|
28T
|
|
Tire specification
|
11.00-20,12.00-20,12.00R20 for option
|
|
Paint spraying method
|
Overall spraying machines
|
|
Ladder
|
1 unit,flat steps, fixing
|
|
Fire Extinguisher Carrier
|
2 units, include 2 units dry powder type fire extinguisher inside
|
|
Tool Box
|
1 pc
|
|
Other remark
|
Above specification is just for reference,please send us your request details.
|
|
