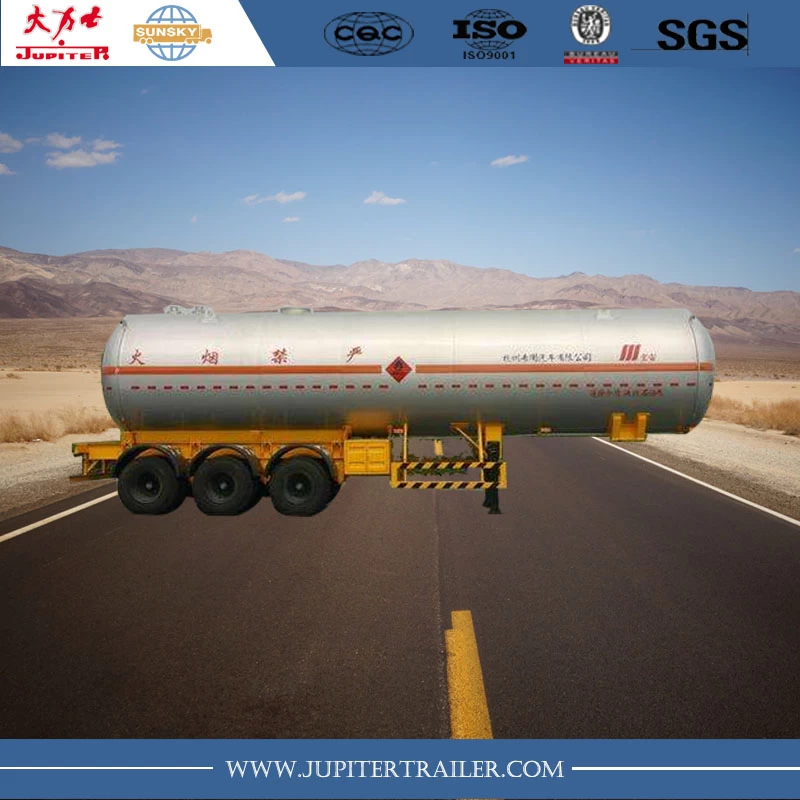

3-Axle LNG Tank Semi-Trailer With Vacuum Insulation
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
3-Axle LNG Tank Semi-Trailer With Vacuum Insulation
|
|
Feature:
|
Carry Liquid Natural Gas
|
|
Dimension(L*W*H):
|
13150*2500*4100mm
|
|
Model
|
SS9403GDY
|
|
Overall Dimension(mm):
|
13000×2500×3900
|
|
Material:
|
Inner Tank：16MnDR(Q345R)
Outer Skin：16MnDR(Q345R)
|
|
Heat Insulation Type:
|
Vacuum Insulation
|
|
Curb Weight:
|
15,200kgs
|
|
Capacity(kgs):
|
27,000Kg(26CBM)
|
|
Tare weight(kgs):
|
42,200kgs
|
|
Kingpin
|
The world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing gear
|
JOST brand two-speed manual operation 19”
|
|
Tire size
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle
|
Original BPW-12T/ FUWA-13T
|
|
Leafs spring
|
Germany type with 12pcs of leafs spring/ Fuwa brand with 10 pcs of leafs spring/ Airbag suspension
|
|
Brake system
|
One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
|
|
Design Pressure:
|
2.28MPa
|
|
Pneumatic Test Pressure:
|
2.63MPa
|
|
Air Test Pressure:
|
2.28MPa
|
|
Design Temperature:
|
-167℃
|
|
Liquid-phase Inlet&Outlet:
|
DN50
|
|
Vapor-phase Inlet&Outlet:
|
DN40
|
|
Pipe of the main safety Valve:
|
2 x 2 safety valves set at 22.0 bar (319.0 PSI)
|
|
Pressure Gauge:
|
2 pressure gauges(front and rear),equipped with isolation valve
|
|
Pump System:
|
Difference Pressure: 3.5 bar
Flow rate: Ca 20,000 Kg/ h
Motor : 220/ 380 V / 50 Hz + 60 Hz / 5.5 kw
|
|
We can build the trailers according to customer’s design and requirement
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
