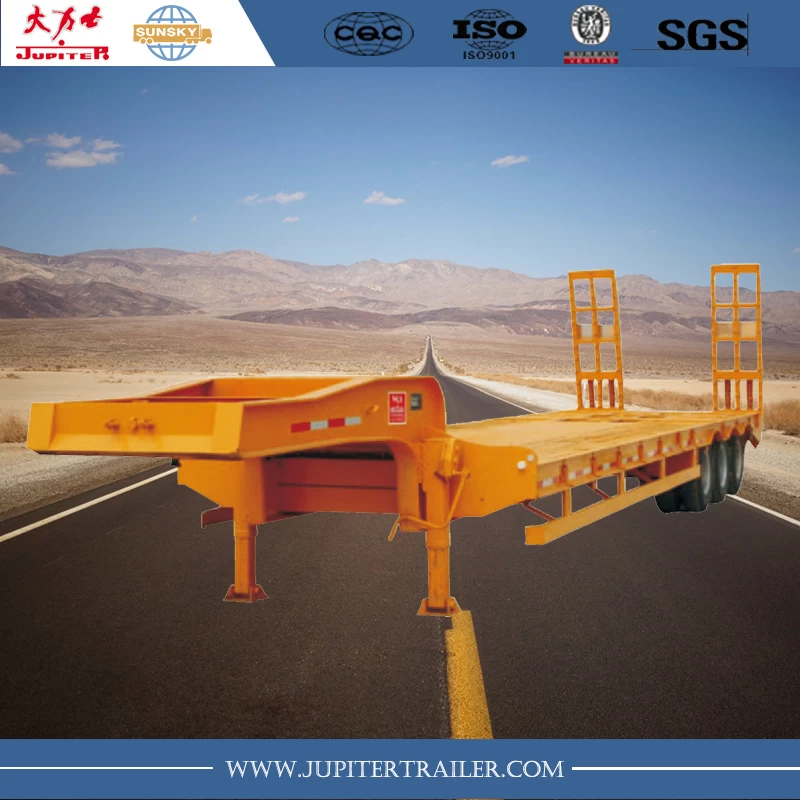

Product Item:Chinese brand 3-axle lowbed semi-trailer for carry equipment
Introduction of 3 axle low bed trailer
1.The main frame of SUNSKY LOW BED SEMI TRAILER is made of 16Mn high-tensile steel,reasonable structure,superior carrying capacity and no permanent deformation;It can be reinforced according to using requirement.The payload of 3 axles low bed trailer can reach to 60 tons.
2.SUNSKY LOW BED SEMI-TRAILER adopts large gooseneck structure,low loading platform and gravity, high roadability,big loading space;it’s suitable for transportation of large mechanical devices,large-scale cargo
3.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
4.The continuous improvement of structure makes it much accord with practical loading and unloading requirements.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional
experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa,
Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
3-axle Low bed Semi-trailer
|
|
Feature:
|
Carry containers, bulk
cargo, equipments
|
|
Dimension(L*W*H):
|
(12000-16000)*(2800-3200)*2500mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low
carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
Model:
|
SS9750TDP
|
|
No. of axle:
|
3
|
|
Payload:
|
40Ton-60Ton
|
|
Kingpin:
|
The
world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing
gear:
|
JOST brand
two-speed manual operation 19”
|
|
Tire size:
|
11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle:
|
Original BPW-12T/
FUWA-13T
|
|
Suspension
|
Germany type with
12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag
suspension
|
|
Brake
system:
|
Dual line
with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber,
46L air tank
|
|
Electric
system:
|
One unit of
24V 7-pin ISO standard socket; with brake light, turn light, reverse light,
side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container
locks
|
12(for
1x20GP,2X20GP,1X40HQ)
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One tool
box; one set of standard tool
|
|
We can
build the trailers according to customer’s design and requirement
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china,
one trading company in china and one company inHong Kong.
We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30years experience in the trailer manufacturing.
Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas
countries.
2)
We have more than 20 engineers to design the kinds of trailers according to the
requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we
can supply kinds of HOWO brand truck with competitive price.
