3-axle U shape tipper trailer

We supply kinds of 2axle, 3-axle, 27cbm-45cbm tipper semi-trailer

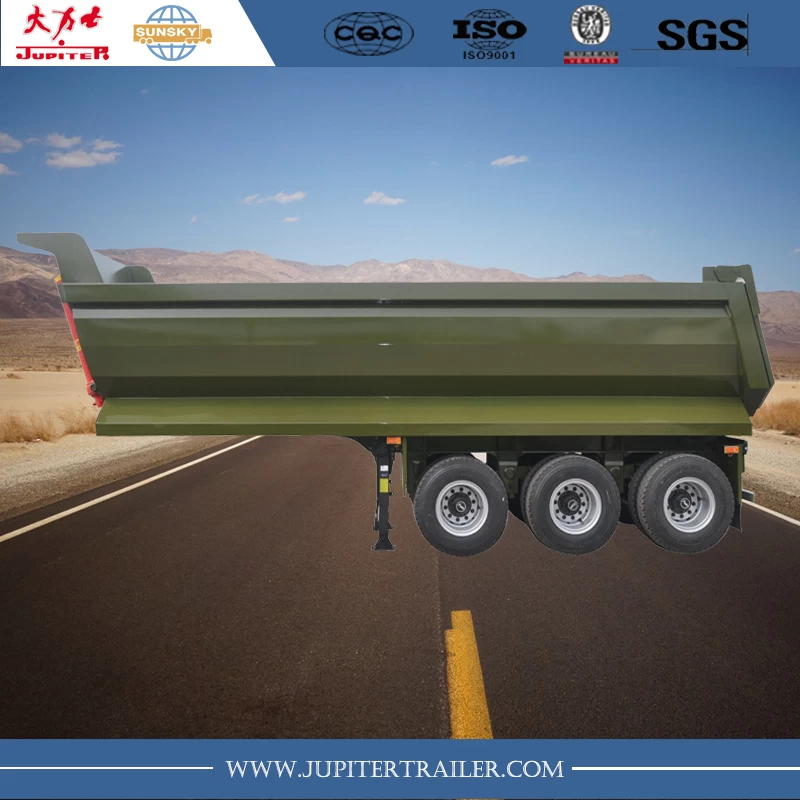

Sunsky brand 3-axle U shape tipper trailer

1.Heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B

steel.I beam welded by automotive arc-submerge process.

2.Equipped famous brand part in alxes,suspension,landing gear.Higher property for your

transportation.More reliable and ensure the long life span of trailers.

3.Full braking and electrical systems at home and abroad in accordance with ISO standard,

optional ABS system, braking, lighting is absolutely safe and reliable.

4.Brake System and Electric system,according to ISO standard.ABS system is optional.

5.SUNSKY Trailer have quality guarantee,some easily broken parts will be delivered with trailers.

Spare parts like tires ,axles etc. can be supplied to you in cost price!


Features:

­­­‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) 3-axle U shape tipper trailer Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:


‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑


27cbm-40cbm 3-axle U shape tipper semi-trailer

Feature:

Carry Sand, Stone, Mine, Garbage and so on

Dimension(L*W*H):

9700*2480*3300mm (27CBM)

10100*2480*3300mm(33CBM)

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

The thickness of body

6mm

Model:

SS9510TJZT

Capacity(CBM):

27CBM-40CBM

Tare weight(kgs):

9,300kgs(27cbm)

10,500kgs(33cbm)

Kingpin:

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

JOST brand two-speed manual operation 19”

Tire size:

11.00R2011R22.512R22.5315/80R22.5385/65R22.5

Rim size:

8.25*22.59.00*22.511.75*22.5

Axle:

Original BPW-12T/ FUWA-13T

Suspension

Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Hydraulic system

Hyva brand

Painting:

S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box; one set of standard tool

We can build the trailers according to customer’s design and requirement

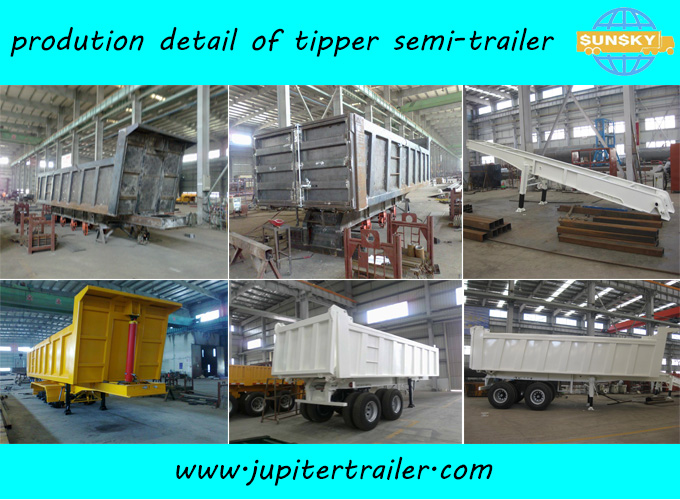

Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑



U shape tipper semi-trailer



Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

U shape tipper semi-trailer



Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

U shape tipper semi-trailer



Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

U shape tipper semi-trailer



What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

U shape tipper semi-trailer




FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
