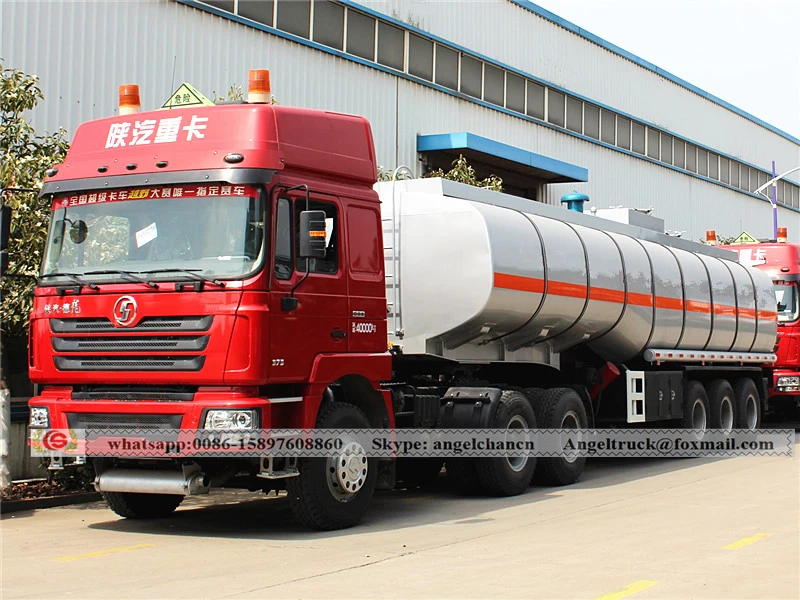

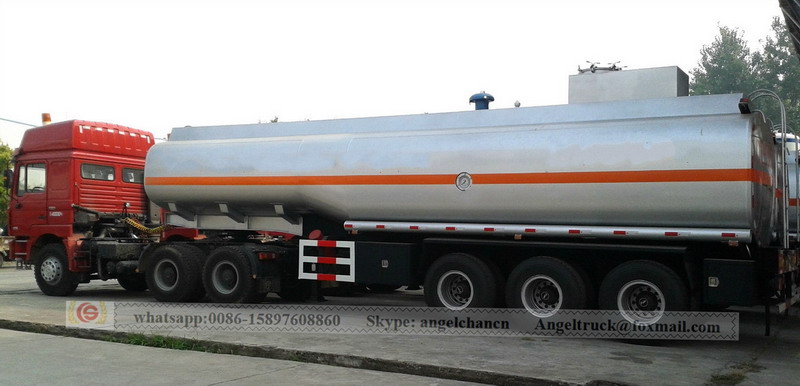

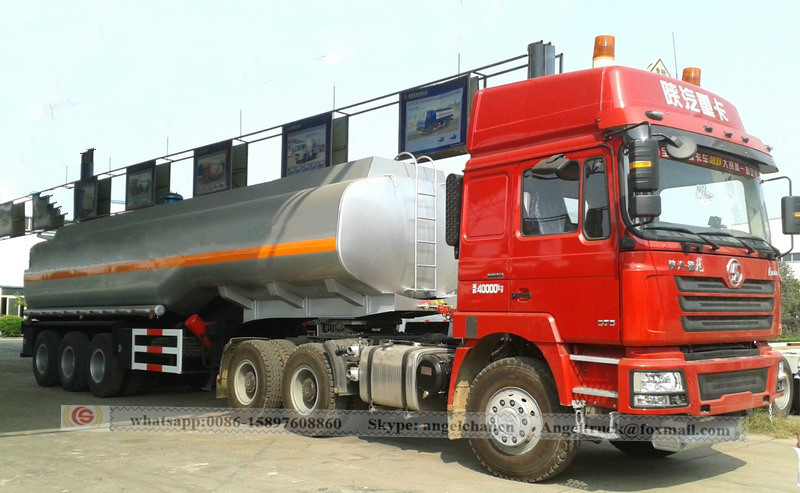

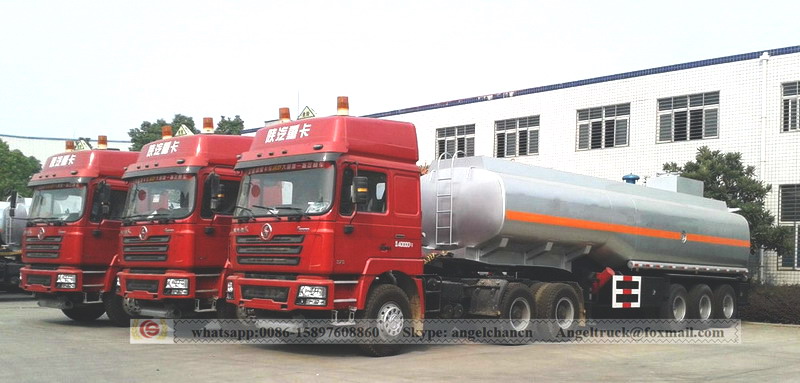

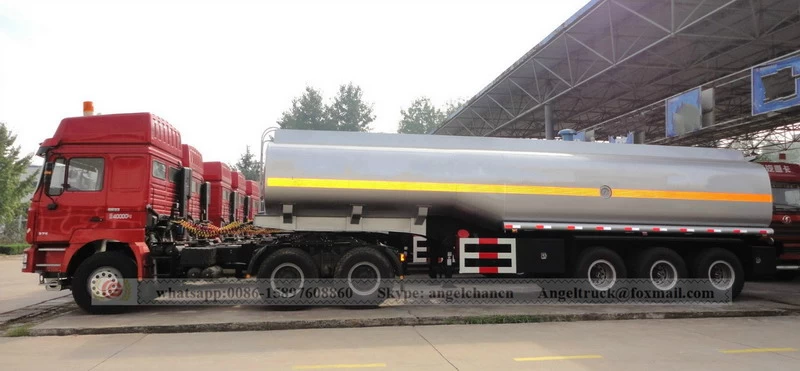

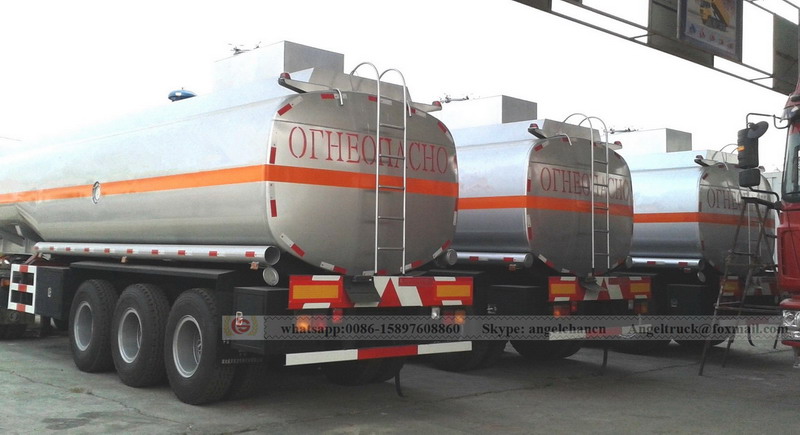

Truck description:
CNCSC fuel tank semi trailer(include stainless oil tanker trailer,tank semi trailer,fuel tank trailer,trailer,diesel semi trailer,gasoline semi trailer,oil semi trailer,oil fuel tank semi trailer) is applies to transport different type of media,such as chemical liquid ,water,crude oil,lubricant, gasoline,diesel,propane,coal oil,and so on.
Structure:
Chassis frame,tank body,landing gear,euro standard manholes,kingpin,emergency venting device,fire extinguisher,anti-slip walkway,ladders,etc.
Advantage:
1. Nice and suitable tank shape: Straight-through structure or Goose neck tank.
2. FUWA ,BPW,and other famous brand Axles.
3. Different King pin size : 2˝ or 3.5˝ ( 50# or 90 # ).
4. Steel net lay down floor anti slide
5. Safety Anti-static System
Technical Specification:
We are able to custom manufacture Semi trailer fuel tank in a wide range of sizes and capacities as per customers' requirement.
3 axles Oil fuel tank semi trailer ( 40,000 Litres)
|
Vehicle
|
GVW (kg)
|
40000
|
|
Kerb weight (kg)
|
9900
|
|
Axles
|
3 Axles,13 Ton,FUWA or BPW brand,or as your request
|
|
Overall
dimension (mm)
|
Length
|
11000
|
|
Width
|
2500
|
|
Height
|
3650
|
|
Tank dimension (mm)
|
Length
|
10900
|
|
Width
|
2460
|
|
Height
|
1930
|
|
Chassis
|
Wheel base(mm)
|
5500+1310+1310 or other
|
|
Tank material
|
Carbon steel
|
|
Tank shape
|
Straight-through structure
or goose neck tank
|
|
King pin
|
90# or 50 #
|
|
Landing gear
|
28T Single action leg
|
|
Tire specification
|
11.00-20,12.00-20,12.00R20 for option
|
|
Paint spraying method
|
Overall spraying machines
|
|
Ladder
|
1 unit , flat steps, fixing
|
|
Fire Extinguisher Carrier
|
2 units,include 2 units dry powder type fire extinguisher inside
|
|
Tool Box
|
1 pc
|
|
Remarks
|
Above specification is just for reference,please send us your request details.
|
|
Contact us
|
Ms.Angel chan E-mail:Angeltruck@foxmail.com
Whatsapp: 0086 15897608860 Skype: angelchancn
|
Optional parts and more information for your reference
1.Reliable API valves.
2.WABCO Valve or other brand .
3.Oil pump can be installed in traction head.
4.Tank can be divided into several compartments to transport different fuels.
5.Gas recovery system,sea valve,fuel charging and discharging system.
6.Anti-corrosion painting for inner tank.
CNCSC truck is China leading professional truck manufacturer, we offer you various heavy duty truck, trailer and truck parts. contact us and get a detail of our trucks.
