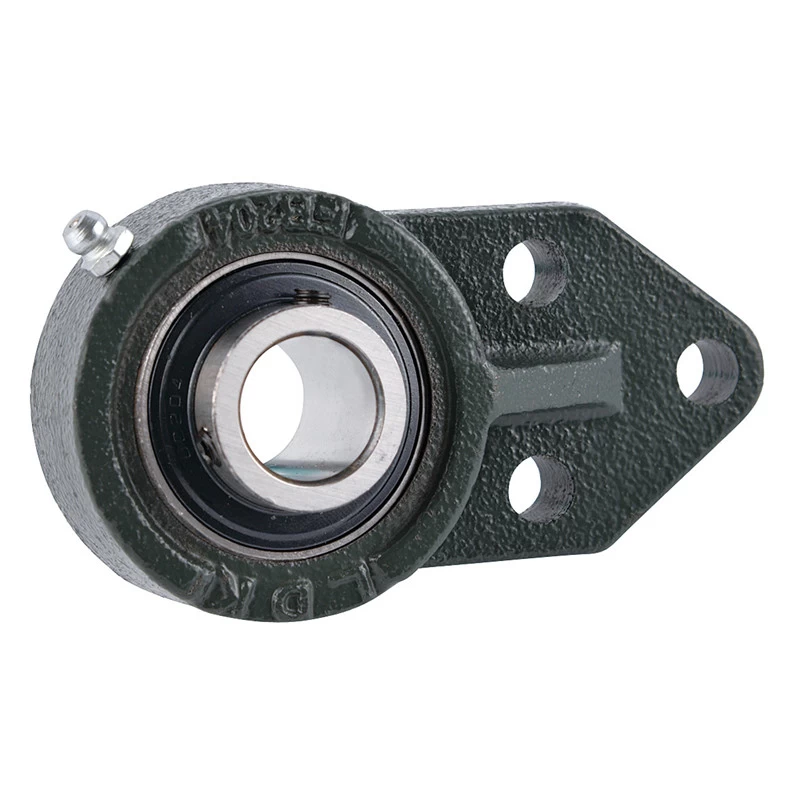

3-Bolt Flange Bearing Units UCFB2

UCFB Standard duty,Flange bracket,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Flange Bearing UCFB205

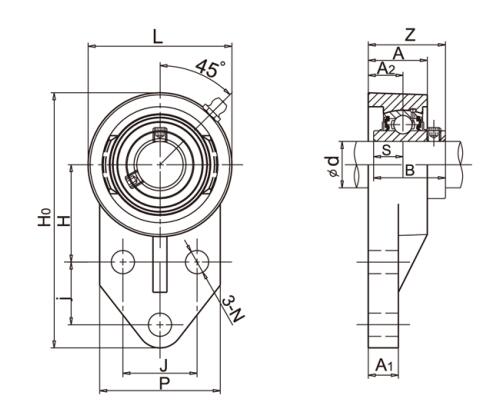

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight
d Ho H J j A2 A1 A N L P B S Z (kg)
(in) (mm)
UCFB201  12 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB201-8 1/2   110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB202   15 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-9 9/16   110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB202-10 5/8   110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.58
UCFB203  17 110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB203-11 11/16   110 42 32 27 15 13 25.5 10 60 52 31 12.7 33.3 M8 0.57
UCFB204  20 110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB204-12 3/4   110 42 32 27 15 13 25.5 10 62 52 31 12.7 33.3 M8 0.62
UCFB205   25 116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-14  7/8    116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-15 15/16   116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB205-16 1   116 45 34 27 16 13 27 10 68 56 34.1 14.3 35.7 M8 0.69
UCFB206   30 130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-17 1-1/16   130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-18 1-1/8   130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-19 1-3/16   130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB206-20 1-1/4   130 50 40 29 18 13 31 10 78 65 38.1 15.9 40.2 M8 0.93
UCFB207   35 144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.30
UCFB207-20 1-1/4   144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.30
UCFB207-21 1-5/16   144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.30
UCFB207-22 1-3/8   144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.30
UCFB207-23 1-7/16   144 55 46 32 19 15 34 10 90 70 42.9 17.5 44.4 M8 1.30
UCFB208   40 164 60 50 41 21 16 36 12 100 78 49.2 19.0 51.2 M10 1.80
UCFB208-24 1-1/2   164 60 50 41 21 16 36 12 100 78 49.2 19.0 51.2 M10 1.80
UCFB208-25 1-9/16   164 60 50 41 21 16 36 12 100 78 49.2 19.0 51.2 M10 1.80
UCFB209   45 174 65 54 43 22 18 38 12 106 80 49.2 19.0 52.2 M10 2.00
UCFB209-26  1-5/8    174 65 54 43 22 18 38 12 106 80 49.2 19.0 52.2 M10 2.00
UCFB209-27 1-11/16   174 65 54 43 22 18 38 12 106 80 49.2 19.0 52.2 M10 2.00
UCFB209-28 1-3/4   174 65 54 43 22 18 38 12 106 80 49.2 19.0 52.2 M10 2.00
UCFB210   50 184 68 58 46 22 18 40 12 112 86 51.6 19.0 54.6 M10 2.30
UCFB210-30  1-7/8    184 68 58 46 22 18 40 12 112 86 51.6 19.0 54.6 M10 2.30
UCFB210-31 1-15/16   184 68 58 46 22 18 40 12 112 86 51.6 19.0 54.6 M10 2.30
UCFB210-32 2   184 68 58 46 22 18 40 12 112 86 51.6 19.0 54.6 M10 2.30
