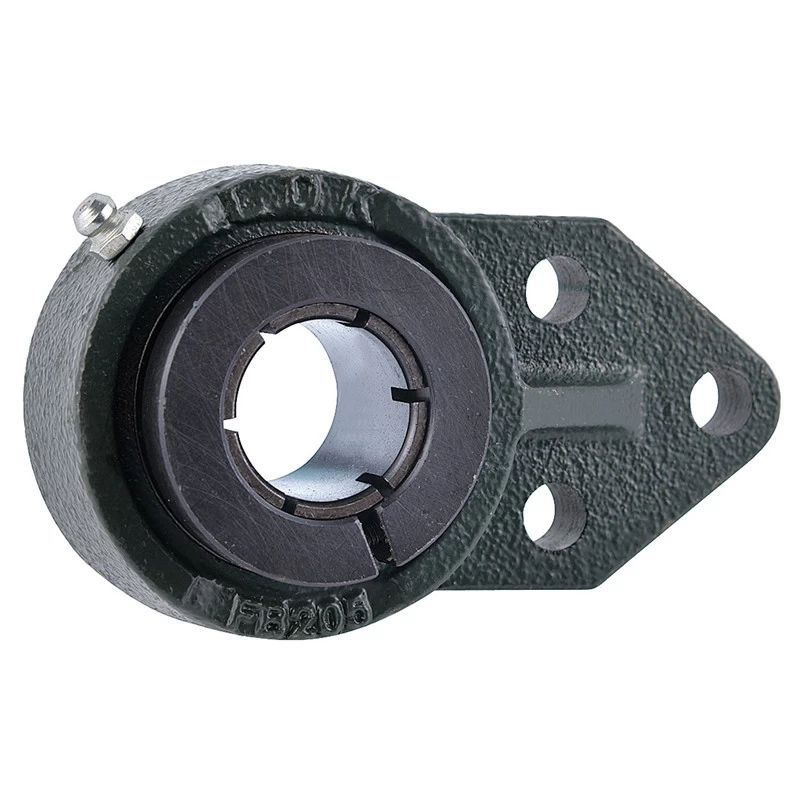

3-Bolt Flange Bearing Units UEFB2



UEFB Standard duty,Flange bracket,Wider inner ring bearing,Concentric locking,Cast gray iron housing .

Cast ductile iron housing available upon request.





3-Bolt Flange Units UEFB207

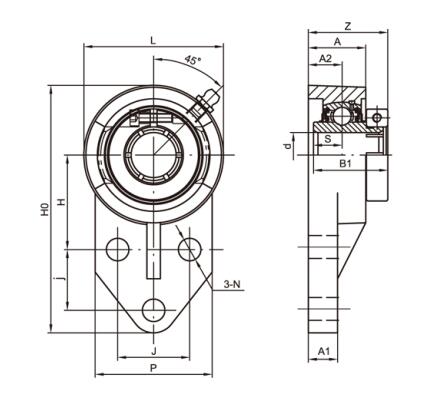

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight
d Ho H J j A2 A1 A N L P B1 S Z (kg)
(in) (mm)
UEFB204  20 110 42 32 27 15 13 25.5 10 62 52 33 12.7 35.3 M8 0.692
UEFB204-12 3/4
UEFB205 25 116 45 34 27 16 13 27 10 68 56 35.4 14.3 37.1 M8 0.87
UEFB205-14  7/8
UEFB205-15 15/16
UEFB205-16 1
UEFB206 30 130 50 40 29 18 13 31 10 78 65 39.8 15.9 41.9 M8 1.13
UEFB206-17 1-1/16
UEFB206-18 1-1/8
UEFB206-19 1-3/16
UEFB206-20 1-1/4
UEFB207 35 144 55 46 32 19 15 34 10 90 70 43.9 17.5 45.4 M8 1.5
UEFB207-20 1-1/4
UEFB207-21 1-5/16
UEFB207-22 1-3/8
UEFB207-23 1-7/16
UEFB208 40 164 60 50 41 21 16 36 12 100 78 50.2 19.0 52.2 M10 2.07
UEFB208-24 1-1/2
UEFB208-25 1-9/16
UEFB209 45 174 65 54 43 22 18 38 12 106 80 50.2 19.0 53.2 M10 2.43
UEFB209-26  1-5/8
UEFB209-27 1-11/16
UEFB209-28 1-3/4
UEFB210 50 184 68 58 46 22 18 40 12 112 86 52.6 19.0 55.6 M10 2.8
UEFB210-30  1-7/8
UEFB210-31 1-15/16
UEFB210-32 2
