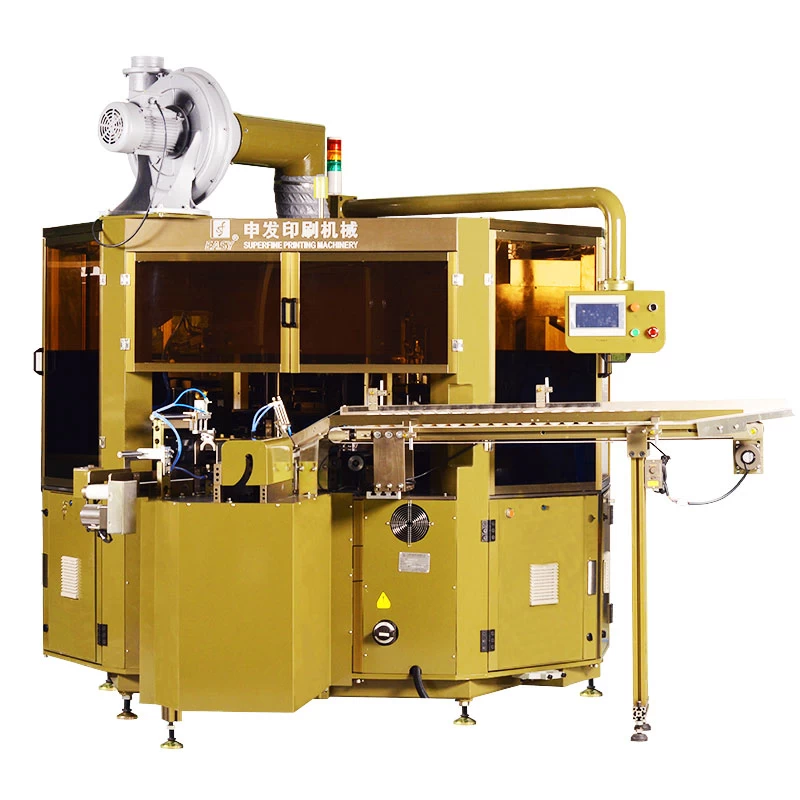

3-Color Screen Printing,hot stamping and labeling Machine
Features
◆ Screen turntable utilize reliable PLC system and touch screen control with its carousel transport system makes it the most advance screen printing system available.
◆ To satisfy different printing needs, to fulfill the purpose of multi-functional, and all-in-one production line.
◆ Automatic feeder can be designed for specific products to increase efficiency.
◆ To satisfy different requirements, auto cursor positioning, varnish system, stamping system or ink jet-direct systems are optional
Technical Data
Product size: φ（16-60）xL（50-220）mm----for Tube
φ（20-80）xH (20-55)mm----for Jar
Max. speed:60pcs/min
Air pressure:5-6bar
Power:AC380V 50/60Hz 18Kw
Dimensions:2900x2300x2500mm
Optional loading and unloading robots

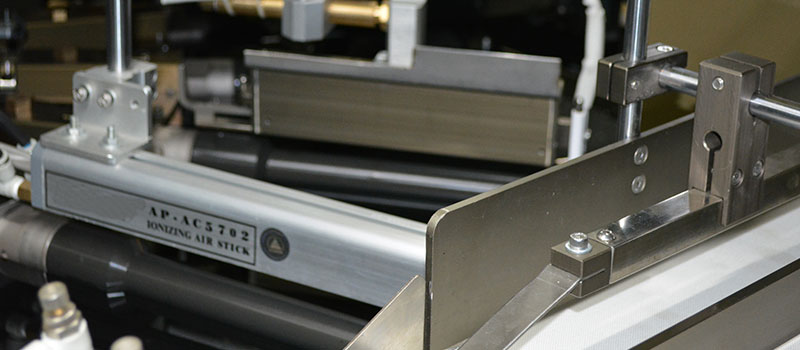

Anti-static Flaming System
Auto Registration System
Optional Varnish System

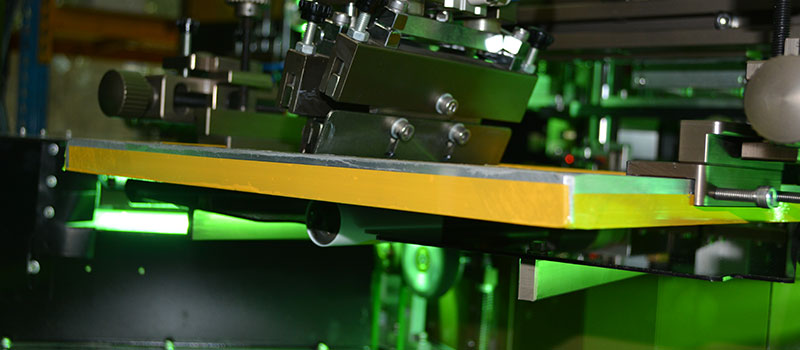

Screen Printing

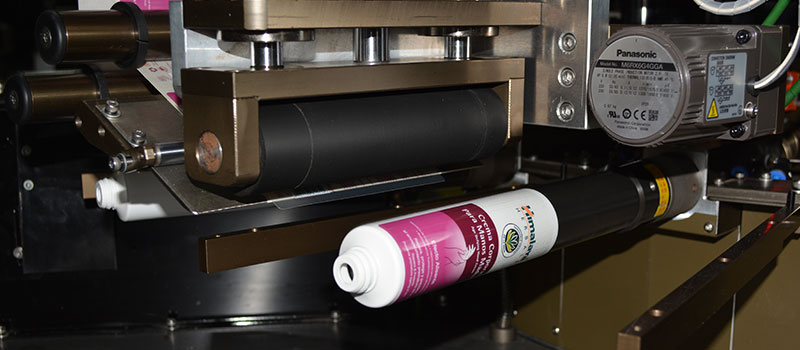

Hot-Stamping

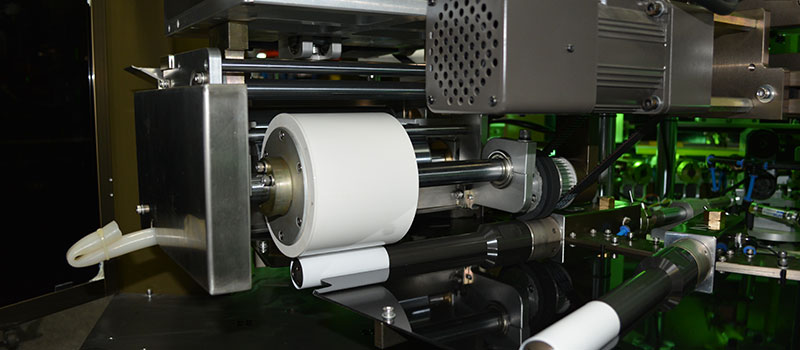

Labeling

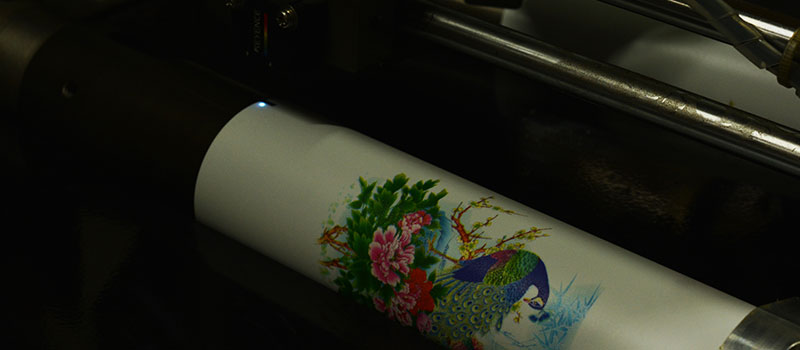

Printing samples
Machine running video
