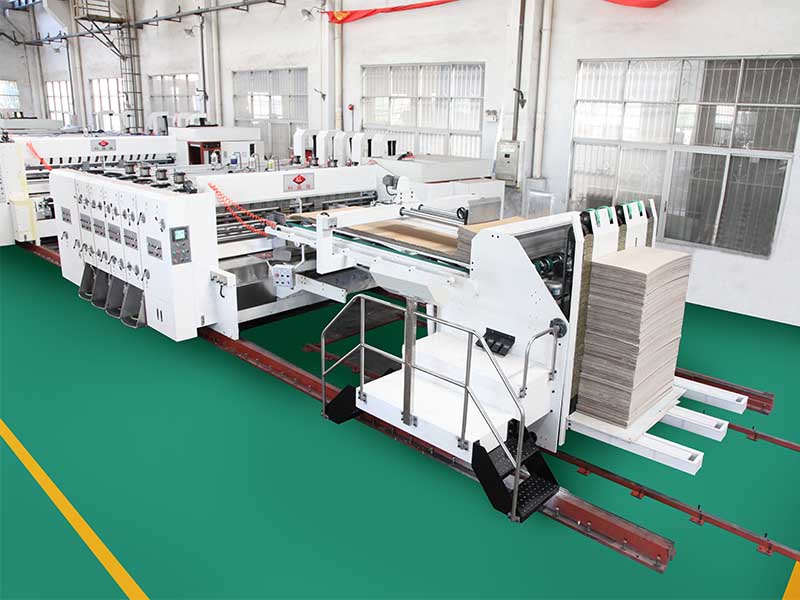

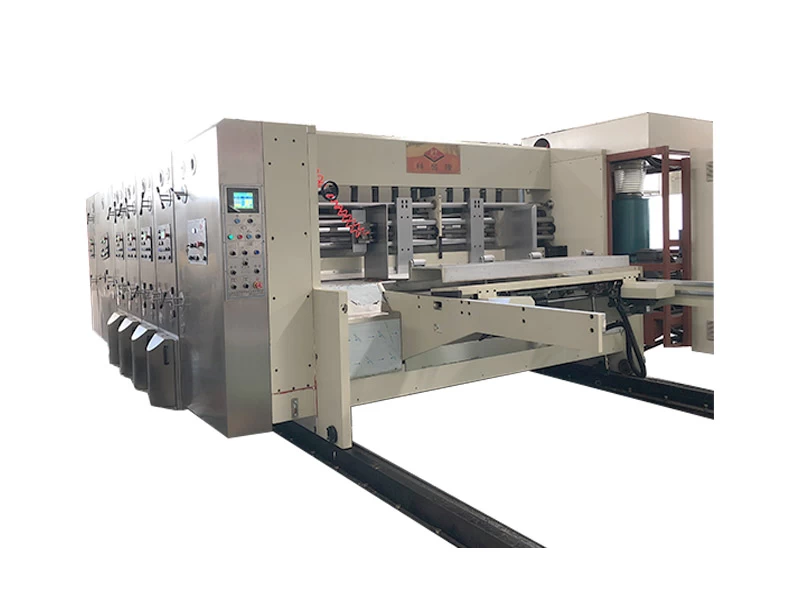

3 Colour Carton Box Flexo Printing Die Cutting Machine
Semi Automatic Carton Printing Machine Features：
·Printing machine slotter die cutting machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.

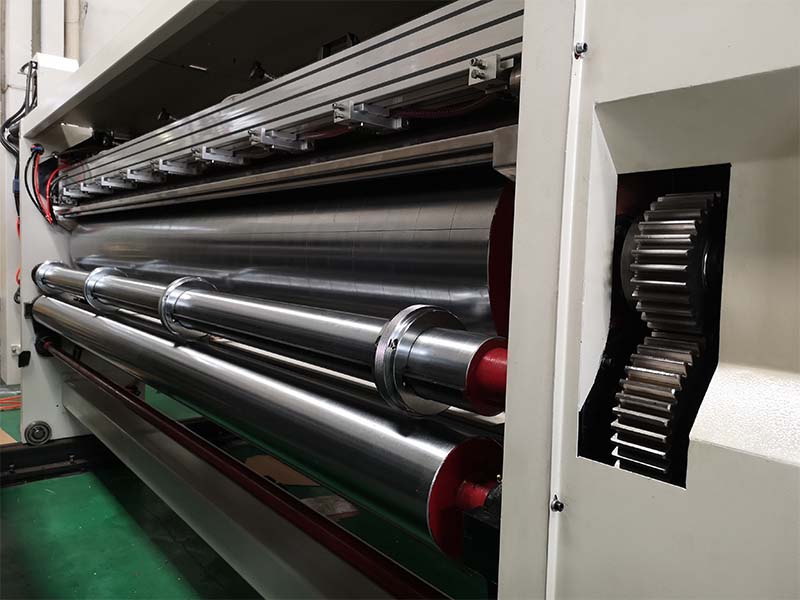

·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are manual adjusted,squagging after adjustment.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Flexo Printing Slotting Die Cutting Specification：
|
Data/Model
|
900*2000
|
1200*2000
|
1200*2400
|
1200*2800
|
1400*2400
|
1400*2800
|
1600*2800
|
1600*3200
|
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
|
Max. Machine Speed(pcs/min)
|
300
|
250
|
250
|
220
|
220
|
220
|
200
|
180
|
|
Max.Feeding Size(mm)
|
880x2000
|
1180x2000
|
1180x2400
|
1180x2800
|
1380x2400
|
1380x2800
|
1540x2800
|
1570x3200
|
|
Min.Feeding Size(mm)
|
280x640
|
320x700
|
320x700
|
320x700
|
350x700
|
350x700
|
420x760
|
420x760
|
|
Skip Feeding(mm)
|
1100x2000
|
1500x2000
|
1500x2400
|
1500x2800
|
1700x2400
|
1700x2800
|
1900x2800
|
1900x3200
|
|
Max. Printing Area(mm)
|
800x2000
|
1150x2000
|
1150x2400
|
1150x2800
|
1350x2400
|
1320x2800
|
1540x2800
|
1540x3200
|
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
Min.Panel(mm) Slot Type L.
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
280x100x280x100
|
280x100x280x100
|
|
Max Slotting Depth(mm)
|
250
|
320
|
320
|
320
|
320
|
320
|
560
|
560
|
|
Max. Thickness of Sheet(mm)
|
8
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Dimension(LxWxH)
T
F
|
T:11659x4240x3200
F:12079X4240X3200
|
T:13015x4400x3500
F:13550x4400x3500
|
T:13015x4800x3500
F:13550x4800x3500
|
T:13015x5220x3500
F:13550x5220x3500
|
T:13570x4830x3500
F:14028x4820x3500
|
T:13570x5220x3500
F:14028x5220x3500
|
T:14021x5220x3500
F:14071x5220x3500
|
T:14021x5719x3500
F:14071x5719x3500
|
Our Research and Development:
KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.
