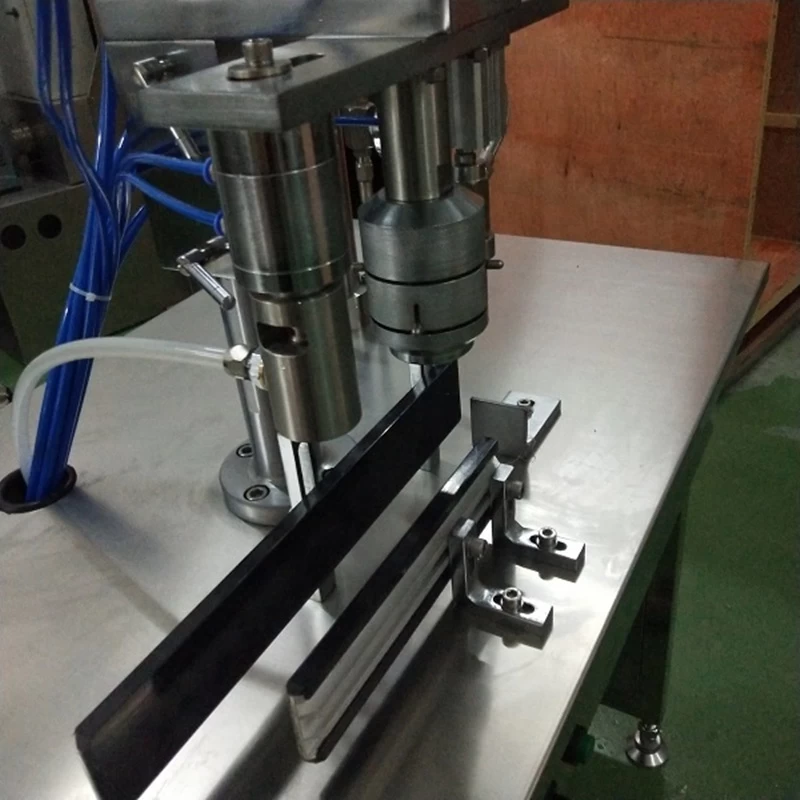

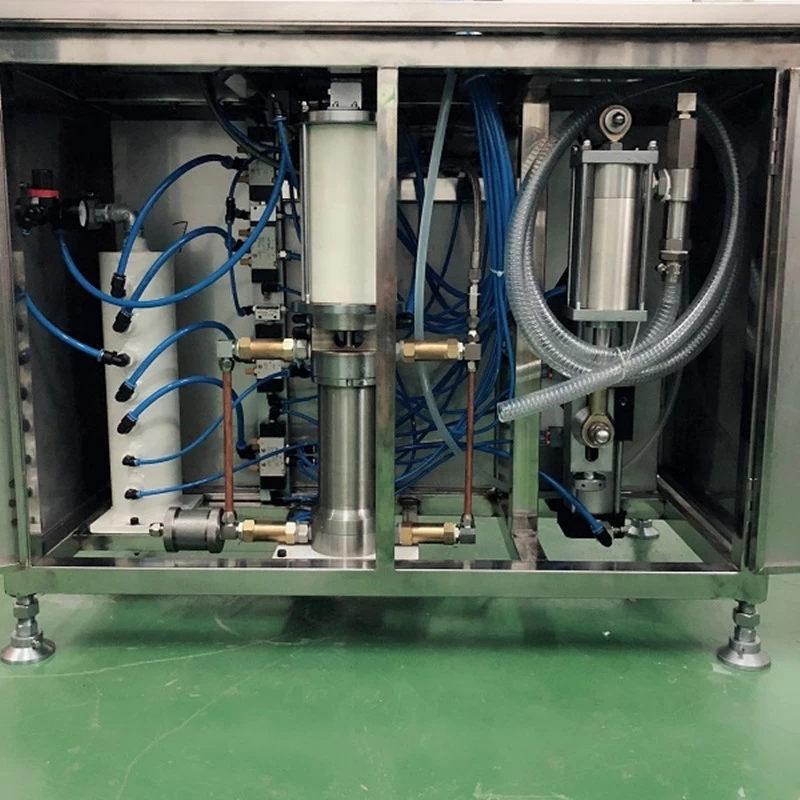

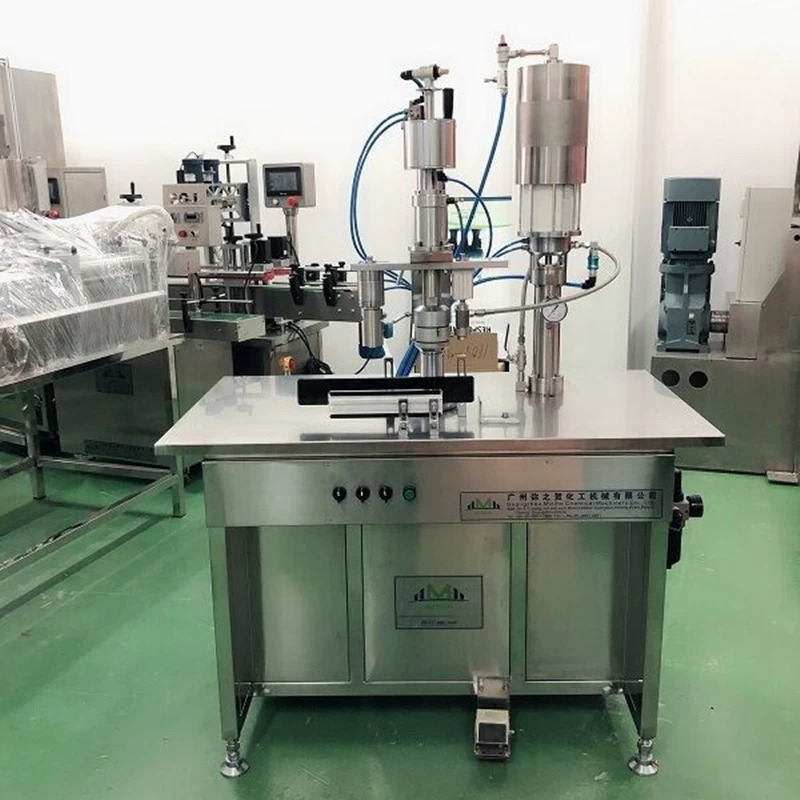

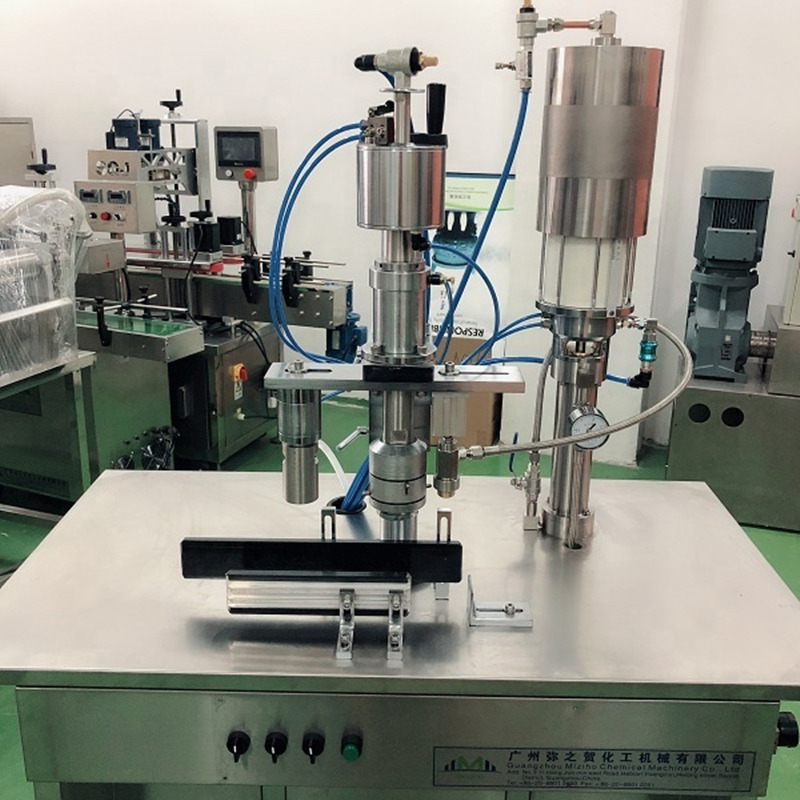

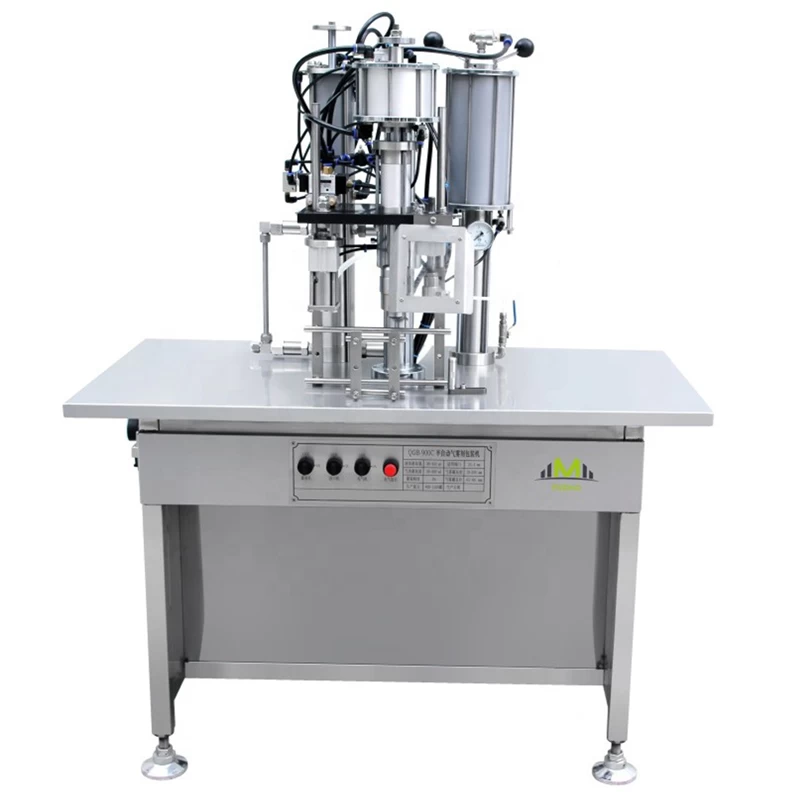

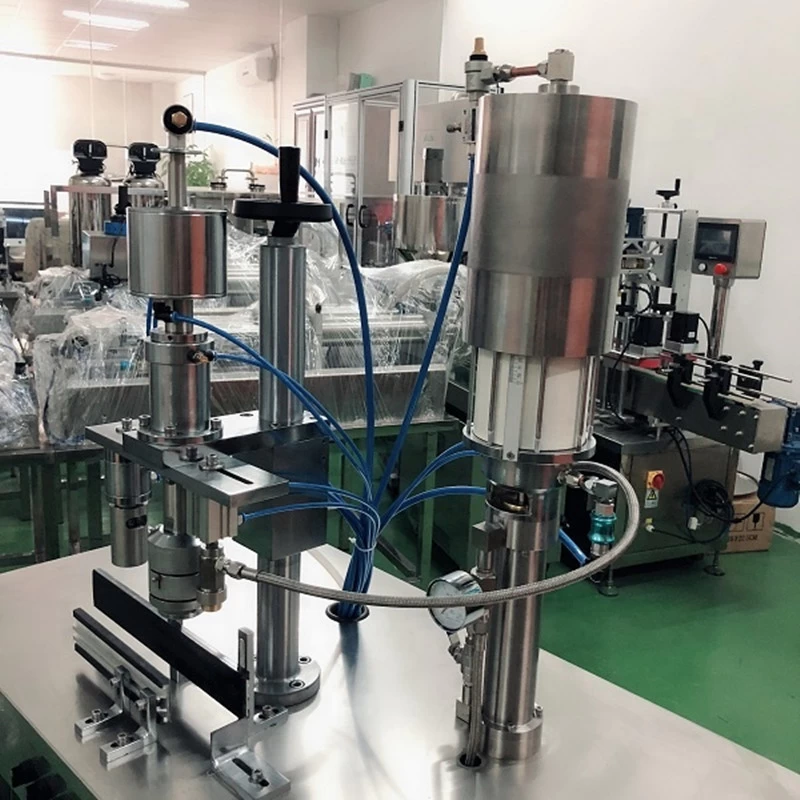

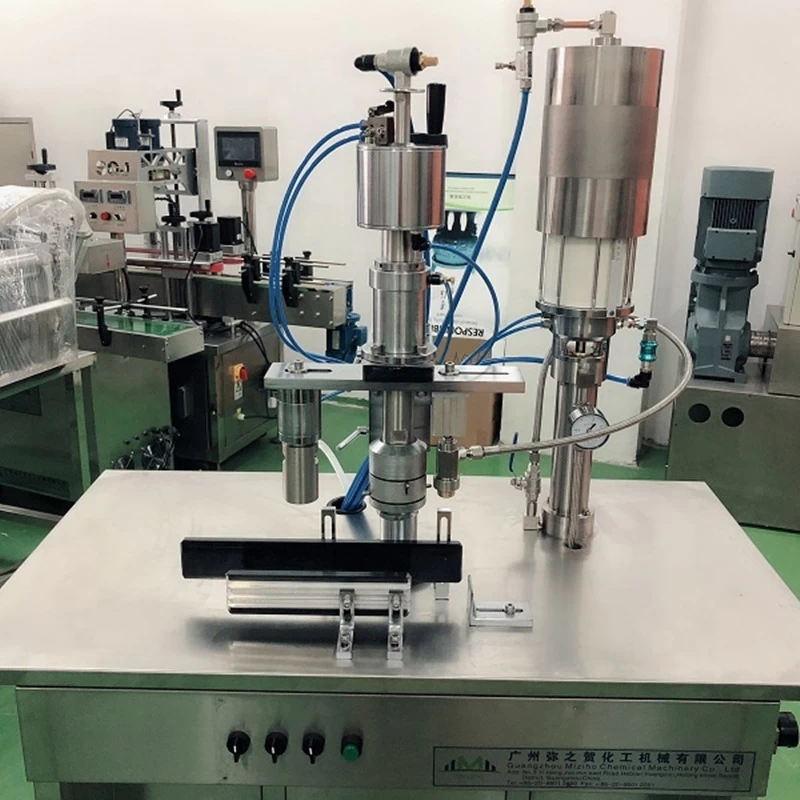

3 in 1 Air freshener aerosol filling and sealing machine
Customized And OEM Service Available
Details introduced
This 3 in 1 Air freshener Aerosol Filling And Sealing Machine is transformed from the former semi-automatic Aerosol Filling Machine.Liquid filling, filling, sealing in the same work table, only one worker can operate.It has the characteristics of high speed, high accuracy and good stability.Suitable for small and medium enterprises.
Technical parameters
|
Filling Capacity：
|
30-500ml
|
|
Capping Dia. (mm)
|
Φ26.5-Φ27.5
|
|
Capping Depth. (mm）
|
5.0-6.0
|
|
Aerosol Can Applied
|
Heigh
|
80-315mm
|
|
Dia
|
35-70mm
|
|
Filling Accuracy ：
|
≤±1%
|
|
Max. liquid filling capacity
|
500ml
|
|
Working pressure
|
0.50-0.70Mpa
|
|
Max. exhausting
|
0.6m3/min
|
|
Producing Speed ：
|
800-1200cans/h
|
|
Sizes
|
1200×650×1600mm
|
|
Suitable Valve：
|
1〞
|
|
Weight
|
250KG
|
