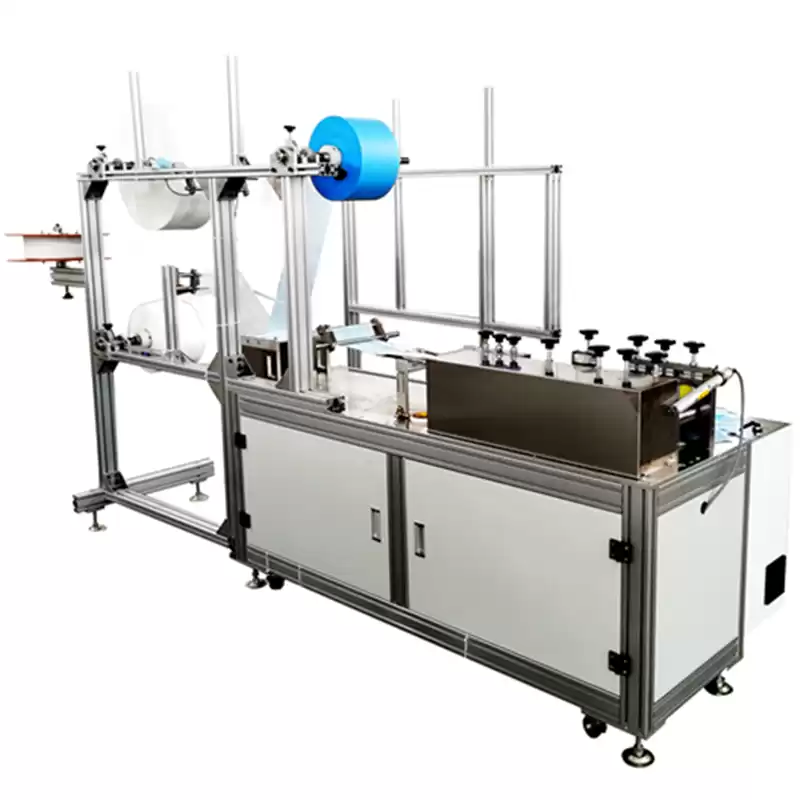

3 layer flat masking machine ultrasonic mask machine mask making machine
Customized And OEM Service Available
Details Introduced
1. This Ultrasonic Mask Machine material cloth frame: manually put three layers of cloth into the material frame, the nose line into, adjust after you can boot.
It can produce 2/3/4 layers of masks. Each shelf is equipped with sensors. When the cloth is not available, it can sense and stop automatically.
2. The Masking Machine Folding shaping group: Feeding according to the shaping shape.
3. Nose feed group: automatically connect the nose line and cut
4. Knurled group: according to the knurled pattern printed and sealed edge, if the customer needs to add LOOG on the mask piece, need to customize knurled in advance.
5. cut out material: according to the length of the need to cut out material
Technical parameters
|
Equipment size
|
L2080mm*W1080mm*H1850mm
|
|
Equipment efficiency
|
About 130-180 PCS/min
|
|
Non-woven fabric parameters
|
175mm
|
|
Upper level 25g/M2
|
Width 175mm (non-woven)
|
|
Middle level 25g/M2
|
Width 175mm (melt spray non-woven)
|
|
Lower leve 20g/M2
|
Width 200mm (non-woven)
|
|
Nose strip, rol
|
width about 3mm, thickness about 0.6~0.8mm
|
|
Ear band outward, 3 layers unlined
|
Size 175*95mm
|
|
Equipment weight
|
385KG
|
