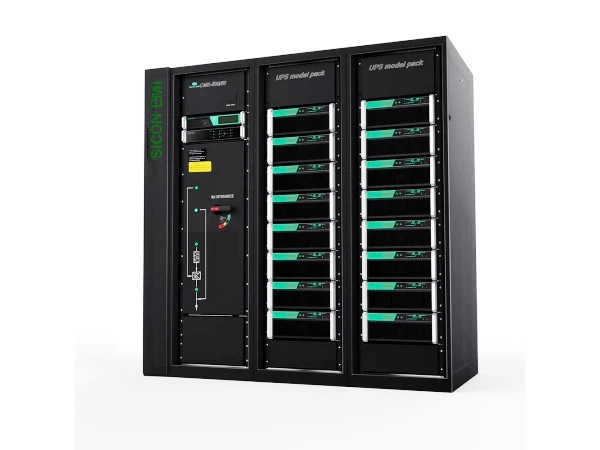

3 Phase Online Data Center UPS System 800kVA

True Modular UPS
Adaptable 50 to 800 kVA power capacity
50 kVA UPS module (CM50)
Configuration: 16 slots
Top or bottom feed
Hot-swappable, field-replaceable Bypass module, Display module, UPS module
Key Application: Data Center

3 Phase UPS power protection, solving today’s energy challenges while setting the standard for quality and innovation with fully integrated solutions for enterprise-wide networks, data centers, mission-critical systems, and industrial/manufacturing processes.

single chassis 800kVA, max 3200kVA via parallel.




UPS Overview

CMS Ture Modular No-break, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into Modern Data Center designs. Online Double Conversion UPS, industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

Non-isolated 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability · Sicon CMS Modular Uninterruptible Power Supply

CMS 380VAC 400VAC 415VAC 3 Phase UPS Products: 7 system frame, 3 ups module, which is designed basing on rational redundancy and projects requiement.

System frame: 50kva, 100kva, 150kva, 250kva, 350kva, 500kva, 800kva. Power module: 10kva, 25kva, 50kva. With full range ups, Sicon offer the most reasonable, cost-effective solution for projects.

Meantime, basing on rack-mount ups solution requirement, Sicon launched CMS/A Rack-Independent Technology Modular UPS basing on 25kva ups module with 100kva/200kva base unit in 2015, leading in Market.

800kVA UPS is good for Data Center projects. Sicon Data Center Solution Installation Samples:

Key Projects - 43.6MVA UPS Installed at a Cloud Data Center in Beijing

China Unicom Data Center Works with Sicon


800kVA Sicon Modular UPS Features

3/3// Uninterruptible Power Supplies 50kVA- 100kVA -150kVA -200kVA -250kVA -300kVA -350kVA -400kVA -450kVA to -to 800kVA

UPS module: 50 kVA

System frame/chassis: 350kVA, 500kVA, 800kVA

Excellent power capability

800kVA single chassis, parallelable up to 3200kVA

Transformer Free UPS technology,  lower space and weight

Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy

High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency

Input low current harmonic distortion · THDI ≤ 3%

High input power factor · input PF ≥ 0.99

High output power factor · Output PF = 0.9

Static and Maintenance bypass switch

Short circuit and overload protection

RS232 serial ports and dry contacts

Multi-level decentralized control technology and Master-slave synchronization in sequency control

Each module automatically even shares the input and output current, all UPS modules share batteries

Selectable input/ output voltage/ frequency range

Split by-pass

Battery management:

Battery discharge management

Auto-transfer between floating and even charging

Temperature compensation

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

2 year warranty

10 years spare parts support

high frequency ups

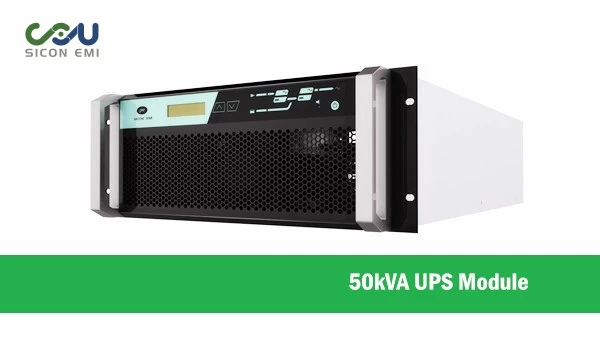

50kVA UPS module

4U with readable LCD screen · Isolated airflow with redundant fans · High power density · High efficiency · Autonomous Start-up · Cold start

Full functioned UPS, delivering a combination of converter, inverter, charger and controller


STS Module

Parallel of SCR and AC Contactor

Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock


Application


IDC date center · Government · Telecom · Bank · Security · Transportation · Broadcast&TV network · HealthCare · Communication · E-business · Finance · etc.
