3 ton Electric Multi-directional Forklift with Four Fork

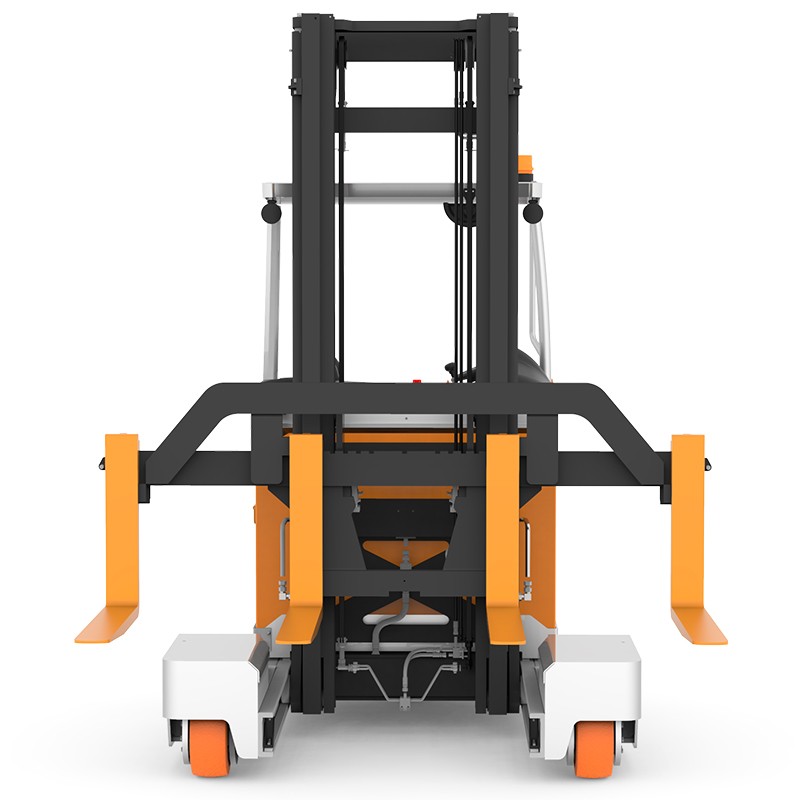

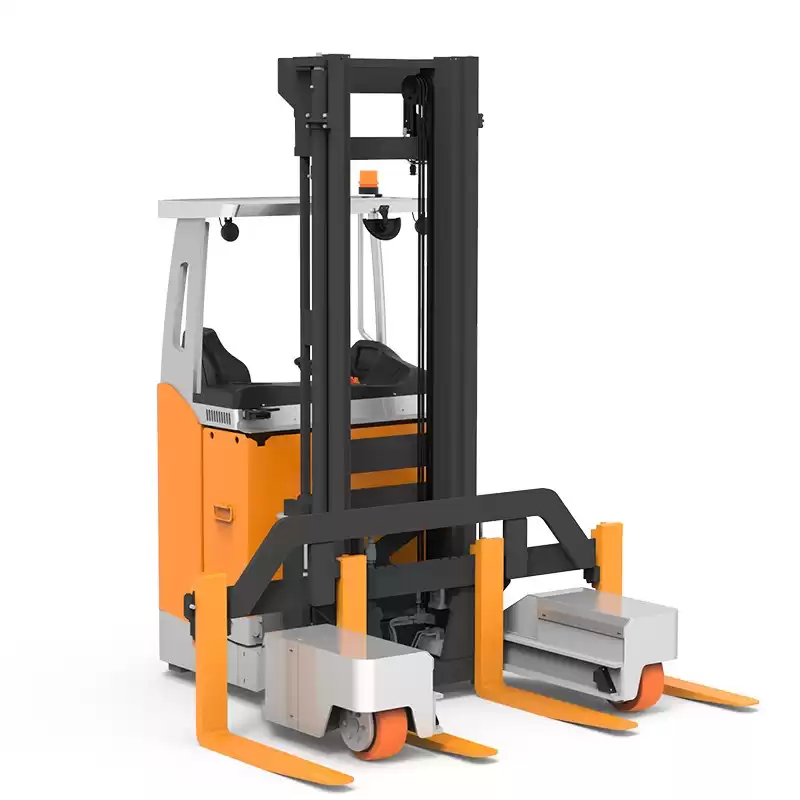

Four forks + wide fork
Fork length is optional, the maximum fork outer distance is 2300mm; it can be customized;

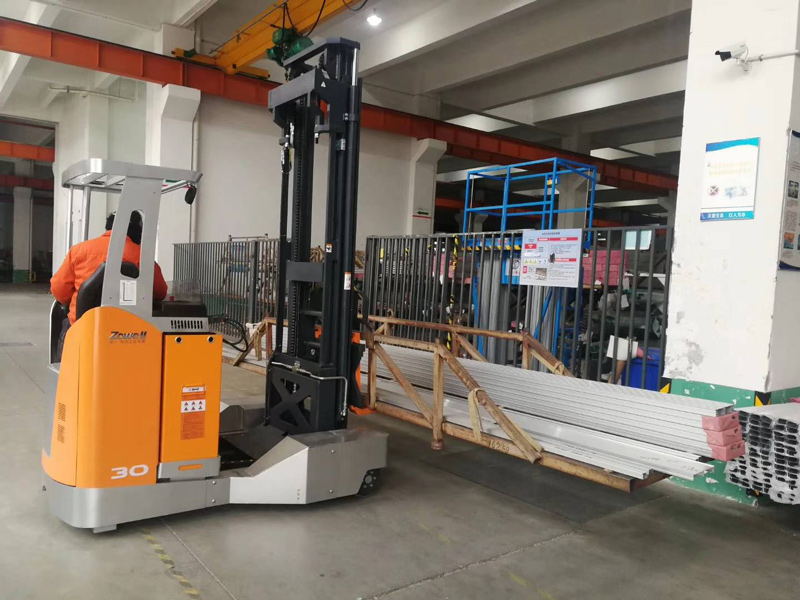

It is suitable for long cargos and fix goods length.
Advantages: low cost, simple structure, no additional aisle width.
Straight mode
Features: Drive single-wheel steering (the angle of the two front wheels remains unchanged, and the rear drive wheel controls the steering)
Application: In this mode, the function is the same as that of an ordinary reach truck.
Sidewalk mode
Features: Sideways driving (90° full wheel rotation)
Application: Long material handling and stacking in extremely narrow passages greatly increase storage capacity.
In-situ rotation mode
Features: 180° U-turn in place
Application: U-turn in the tunnel to improve handling efficiency.
All-wheel steering mode
Features: all-wheel independent steering
Application: Right-angle turning, cornering, obstacle avoidance.
Minimum right angle steering
Feature: Overturn of 90 with the smallest aisle width
Application: Turning in extremely narrow passages.
▶▶▶The minimum right-angle turning mode is integrated in the all-wheel steering mode, and automatically switches to the minimum right-angle turning mode after the steering wheel is deadlock.
Specification
