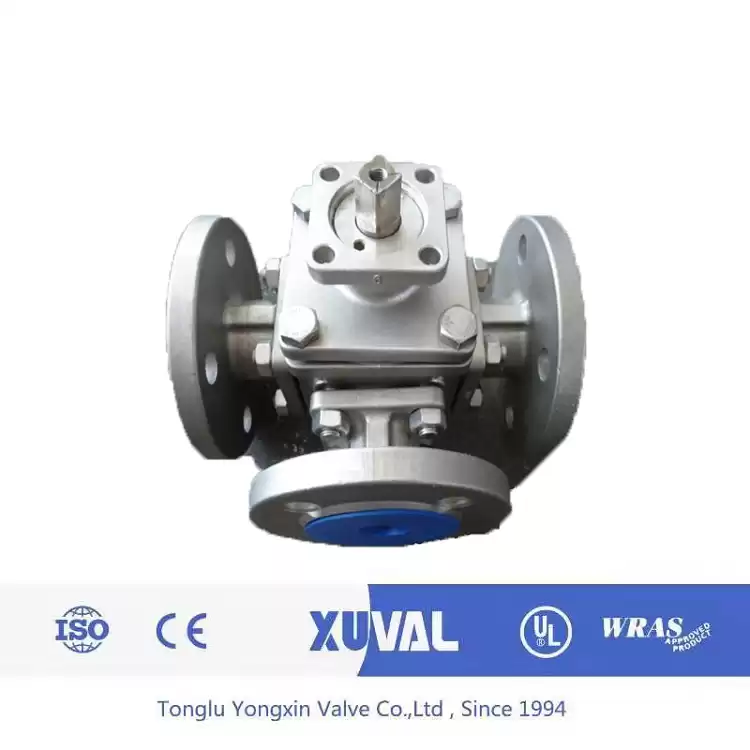

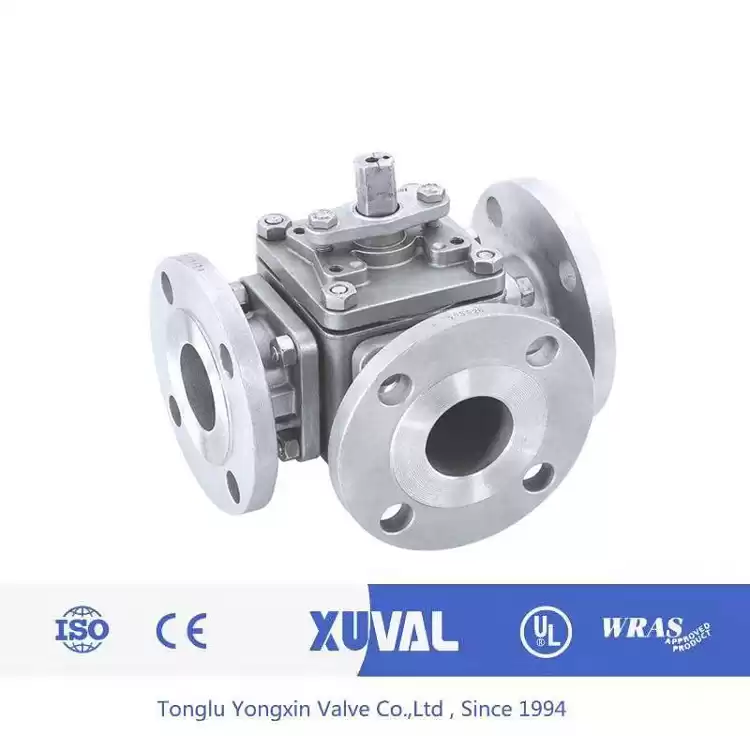

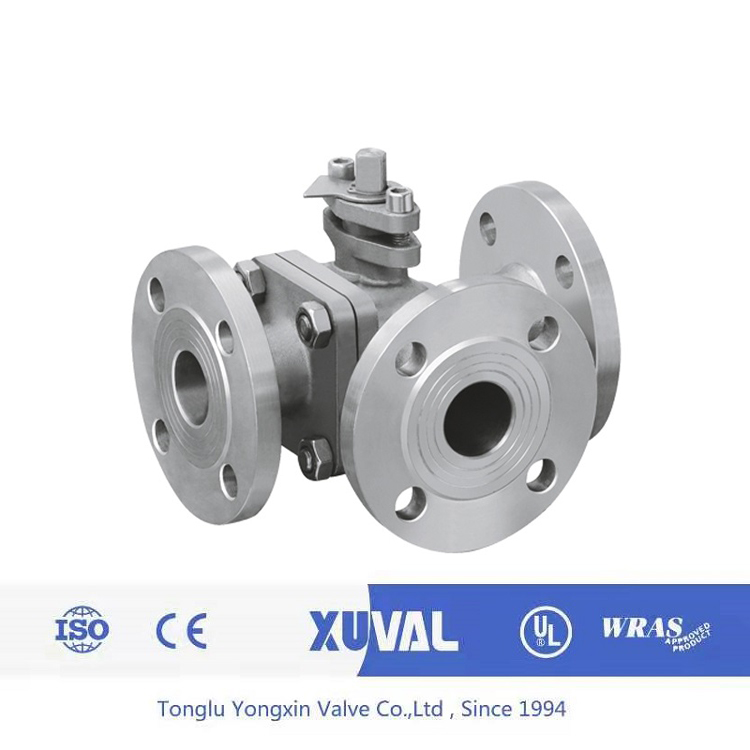

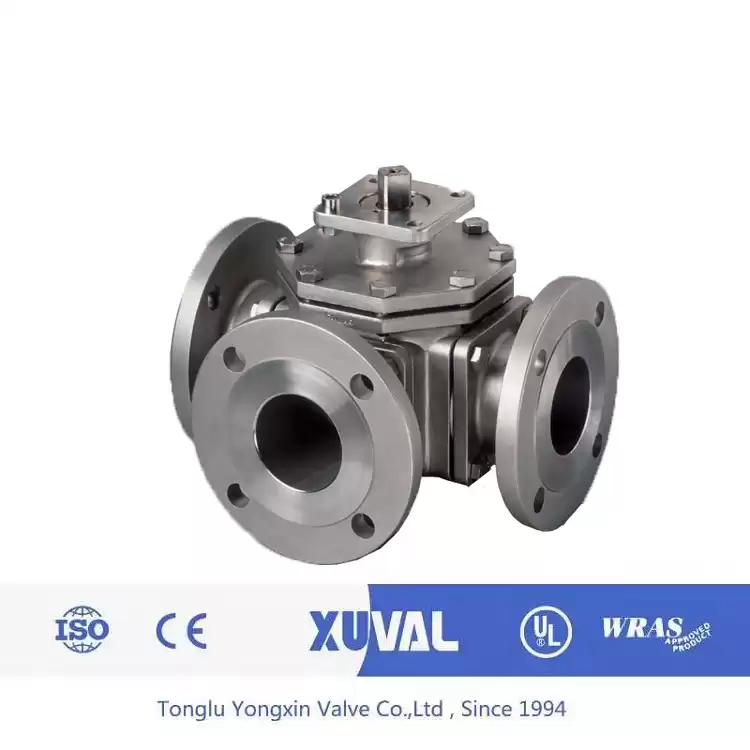

3 way ball valve flange end direct mounting pad

3/4 Way ball valve has T type,L type and X type. T type can make three orthogonal pipes connect with each other and cut off the third channel, and play the role of shunt and confluence. L type way ball valve type can only connect two pipes with each other orthogonal, can not keep the third pipe interconnected at the same time, only play the role of distribution.



3 way ball valve flange end direct mounting pad

Ball valve characteristics:

1. pneumatic 3/4 way ball valve, three way ball valve in the structure of the integrated structure, four-sided seat sealing type, less flange connection, high reliability, designed to achieve lightweight

2. 3/4 way ball valve long service life, large circulation capacity, small resistance

3. 3/4 way ball valve is divided into two types according to action type and double action type. The characteristic of single action type is that once the power source fails, the ball valve will be in the state required by the control system


Ball valves and gate valves are valves of the same type, except that the closing part is a ball, and the ball rotates around the center line of the valve body to achieve opening and closing. Ball valve in the pipeline is mainly used to cut, distribute and change the flow direction of the medium. Ball valve is a new type of valve widely used.


3 way ball valve Advantages:

1. the fluid resistance is small, its resistance coefficient is equal to the pipe section of the same length.

2. structure is simple, small size and light weight.

3.Close and reliable good sealing, in the vacuum system has been widely used.

4. operation is convenient, open and close quickly, from full open to full close as long as rotating 90°, easy to remote control.

5. maintenance is convenient, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.

6. when fully open or closed, the sealing surface of the ball and seat is isolated from the medium, and when the medium passes, it will not cause erosion of the valve sealing surface.

7. wide range of application, diameter from small to a few millimetres, large to a few meters, from high vacuum to high pressure can be applied.


High platform ball valve can be divided into straight-through type, three-way type and right-angle type according to its channel position. The latter two ball valves are used to distribute the medium and change the flow direction of the medium.


Working methods:

L type of three-way 4-sided valve seat valve with 2-sided valve seat. mainly used for commutation of flow paths.

T type of three-way four-sided valve seat ball valve, using four-sided valve seat, force balance, to ensure reliable sealing on the closed channel. Mainly used for diversion, mixing, reversing and the complete opening of the three channels.


3 way ball valve features:

1. Reduced port T port/ L port/ X port, 1/2"~6" (DN15~DN150)

2. W.P.: CLASS 150/300 PN16/40 10K


3. W.T.: -20℃~180℃                         ANSI CLASS 150

4. Investment casting                         Design: ASME B16.34,API608,API6D

5. Blow-out proof stem                       Flange dimension: ASME B16.5

6. Live-loading design                         Inspection & testing:API 598

7. Anti-static device (option)                DIN PN16

8. There are four seats                        Design: EN 1983,EN 12516-1

9. 360° Rotary handle                         Flange dimension: EN1092-1,PN16/40

10.Locking device handle                     Inspection & testing: EN12266-1

11.ISO 5211 Direct mounting pad         JIS 10K

12.Automation accessories (option)       Design: JIS B2071

                                                        Flange dimension: JIS B2071

                                                        Inspection & testing: JIS B2003


Material List

No.
PARTS
MATERIAL
1
BONNET WCB
CF8
CF8M
2
GASKET PTFE
3 SEAT PTFE
4
BALL CF8 CF8 CF8M
5 BODY WCB CF8 CF8M
6 BOLT 304
7
STEM 304 304 316
8 STEM WASHER PTFE+25% GF
9
O-RING FPM
10 PACKING PTFE
11 WEAR WASHER PTFE+25% GF
12 GLAND 304
13
DISC SPRING 304
14
HEX SOCKET BOLT 304
15
NUT 304
16
HANDLE WCB/CF8
17 STOPPER 304
18 GLAND FLANGE CF8
19 BOLT 304
20 NUT 304
21 TEE WCB/CF8
22 HEX SOCKET SET SCREW 304
23 HANDLE Q235A


3 way ball valve stainless steel            3 way ball valve

Unit:mm

Dimensions

Nominal

Diameter

L
d
D2
D1
D
b
f
n-φd1
H
h
H1
W
Ra
Rb
A
B
KxK
15
1/2"
150 15 35 60.3 90 10 2 4-16 50 9 82 140 3.0 3.5 36 50 9X9
20
3/4" 165 20 43 70 100 10.5 2 4-16 60 9 92 140 3.0 3.5 36 50 9X9
25
1" 181 25 51 79.4 110 10.5 2 4-16 65 11 100 170 3.0 3.5 42 50 11X11
32
1-1/4" 190 32 63.5 88.9 115 11.2 2 4-16 80 11 115 170 3.0 3.5 42 50 11X11
40
1-1/2" 212 40 73 98.4 125 12.7 2 4-16 90 14 128 200 3.5 4.5 50 70 14X14
50
2" 229 50 92 120.7 150 14.3 2 4-19 106 14 144 200 3.5 4.5 50 70 14X14
65 2-1/2" 290 65 105 139.7 180 15.9 2 4-19 118 17 162 300 4.5 5.5 70 102 17X17
80
3" 310 80 127 152.4 190 17.5 2 4-19 128 17 172 300 4.5 5.5 70 102 17X17
100
4" 368 100 157 190.5 230 22.3 2 8-19 165 25 250 650 5.5 6.5 102 125 22X22
125 5" 420 125 185 216 255 22.3 2 8-22 212 30 297 800 5.5 6.5 102 125 27X27
150 6" 480 150 216 241.3 280 22.3 2 8-22 243 30 328 800 5.5 6.5 102 125 27X27
