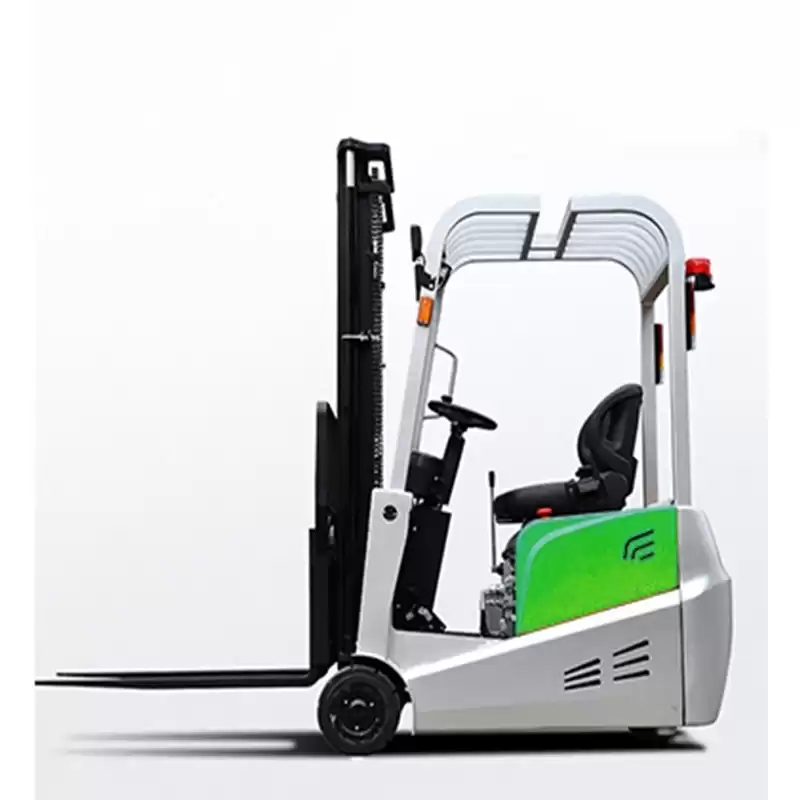

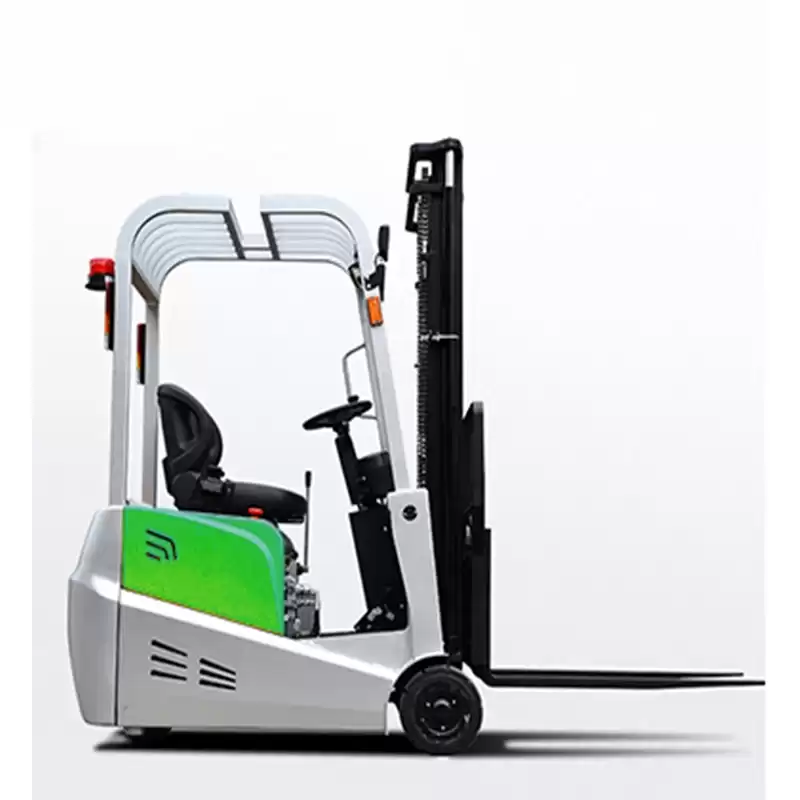

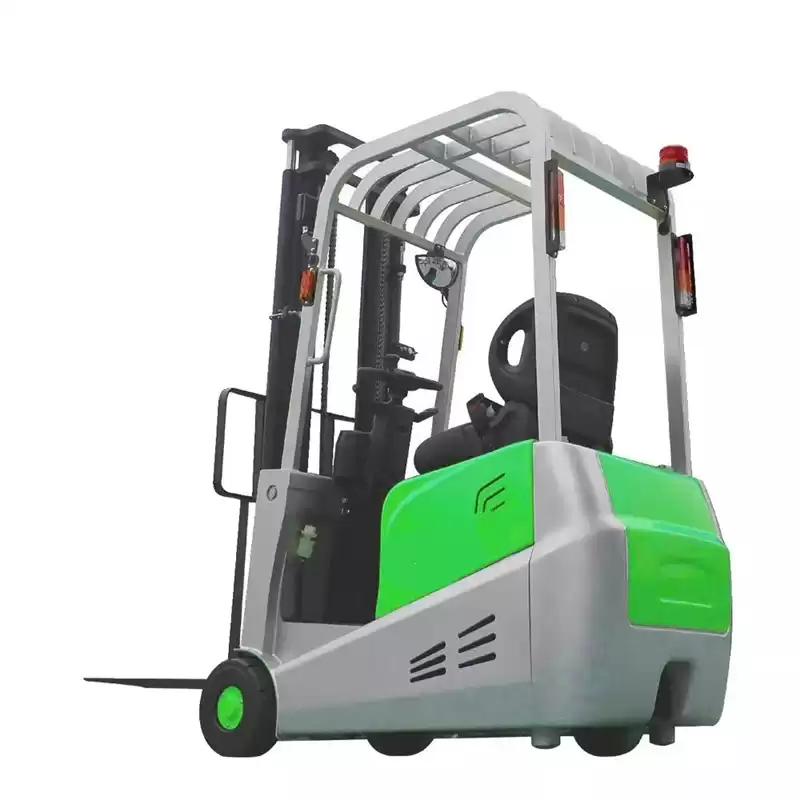

3 Wheel 1.0-1.5 t Counterbalance Forklift Truck For Warehouse
3-wheel mini counterbalanced forklift,loading capacity 1000-1500kg with lifting height 3.0-4.5 meters.Electric steering operation is more convenient.Imported controller(curtis/zapi/immotion).AC drive more powerful.Equipped lead acid or lithium battery.Small in size and light in weight, it is suitable for intensive warehouse operations and floor operations. Widely used in medical, electronics, hardware, food and other industries.
Features:
1.Light forklift, small size and light weight
2. Maintenance-free AC drive system makes the vehicle respond more quickly and accurately
3. Imported controller, more stable and safer
4. Small diameter bearing wheel, lower front overhang, more safety
5. Pure electric steering, small steering force, comfortable and energy-saving
6. Multi-way valve controls the lift and tilt of the fork, with high control accuracy
7. Standard cornering speed limit and high lift speed limit
8. Standard maximum lift height electrical limit
9. Mast buffer technology

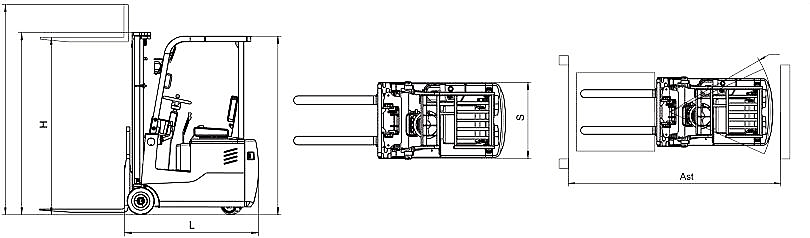

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NPM15 |
| Power type |
|
Full-electric |
| Load capacity |
kg |
1500 |
| Total weight(including battery) |
kg |
2150 |
| Lifting height |
mm |
3000 |
| Overall length(with Fork) |
mm |
2657 |
| Overall length(without Fork) |
mm |
1587 |
| Overall width |
mm |
850 |
| Fork size |
mm |
35/100/1070 |
| Drive motor |
kw |
AC 2.5 |
| Lifting motor |
kw |
DC 3.0 |
| Battery capacity |
V/Ah |
24V/300Ah |
| Charger |
V/A |
24V40A |
| Drive controlling type |
|
AC |
| |

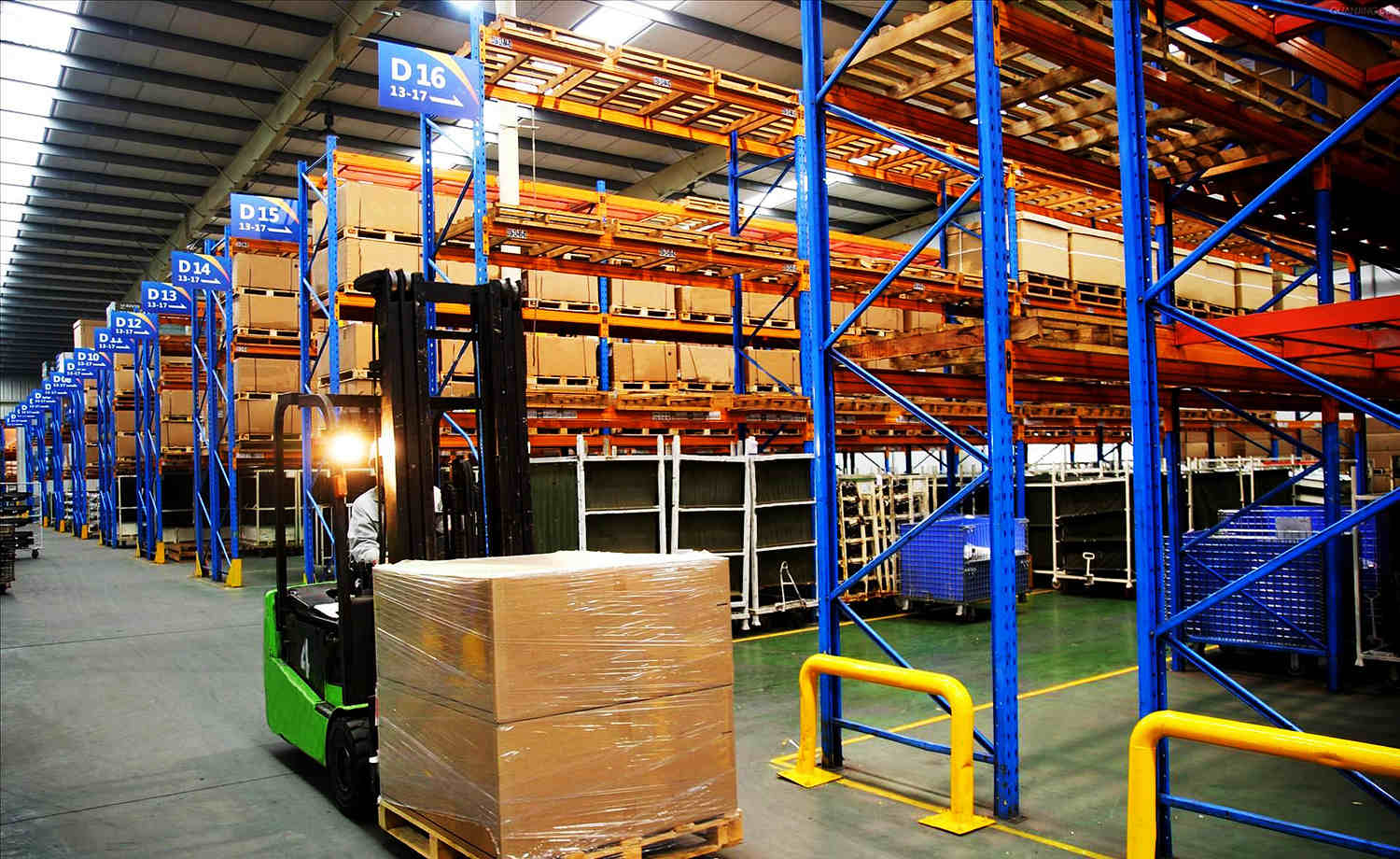

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
