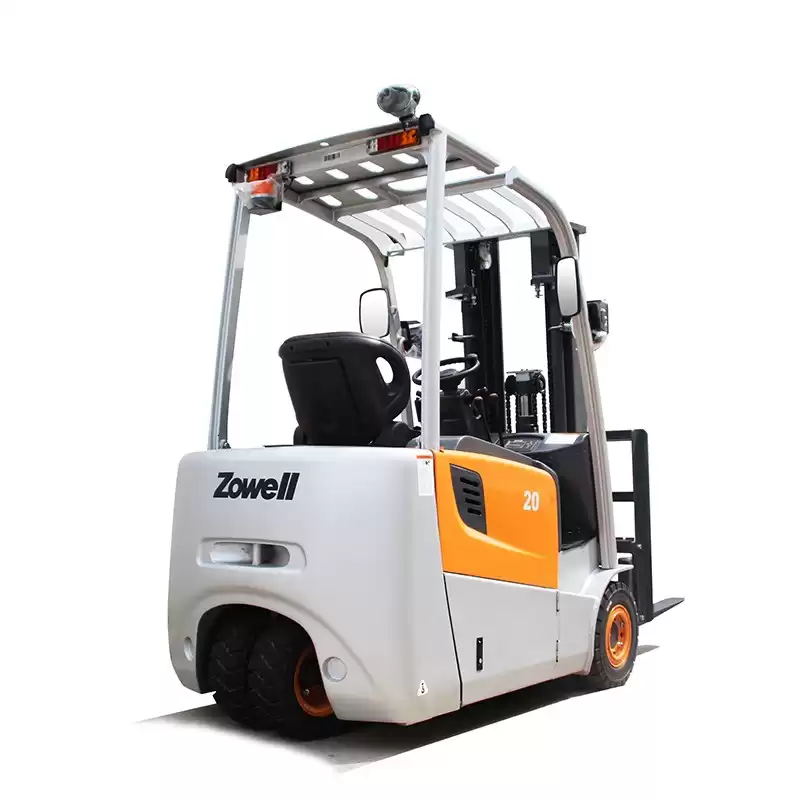

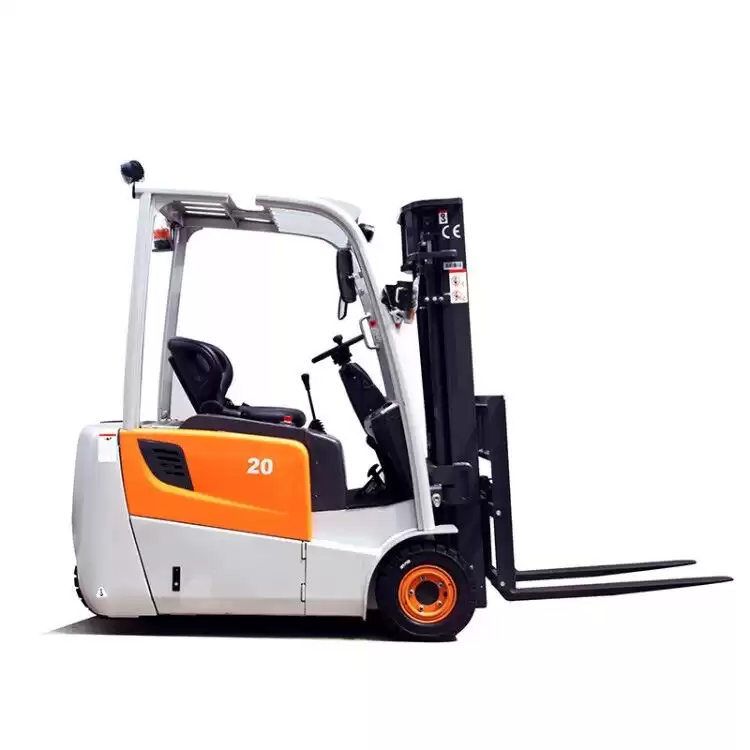

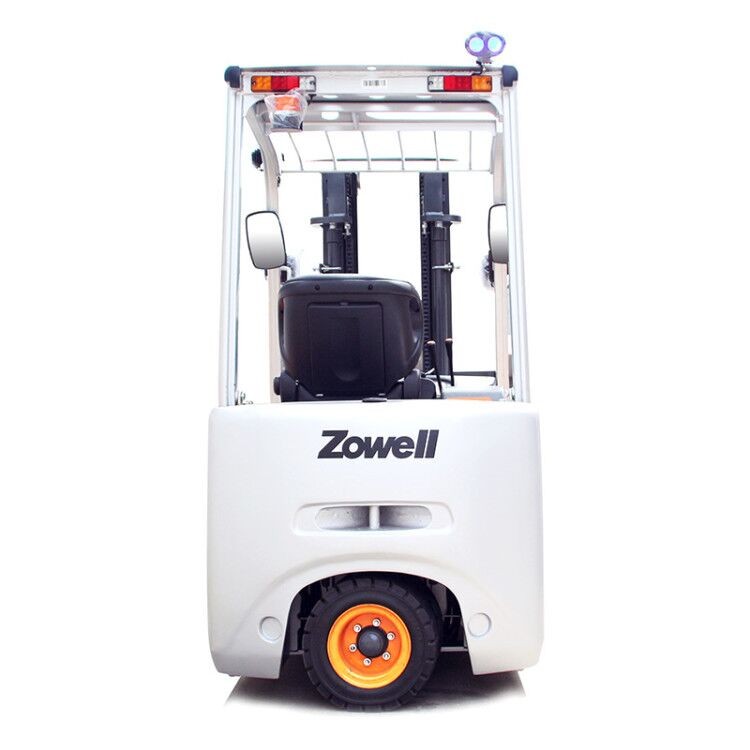

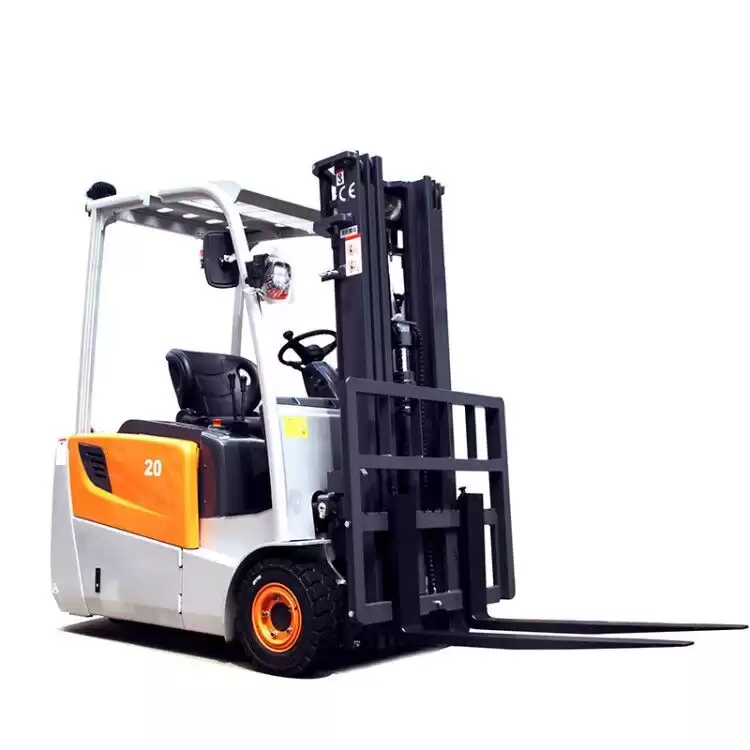

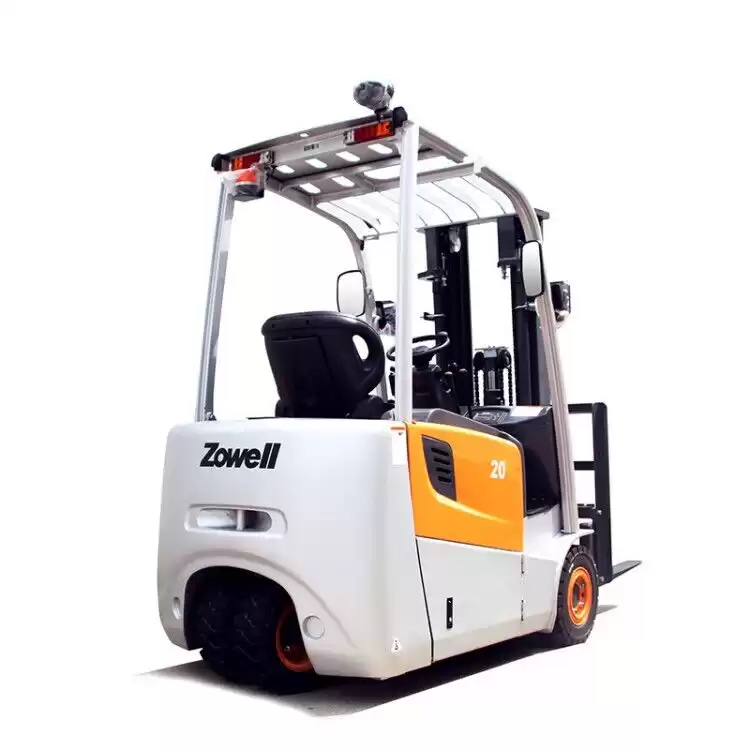

3-wheel Electric Forklift Truck

                                                       Electric Forklift Truck

Features of electric 3 wheel counterbalance forklift trucks

• The electric 3 wheel counterbalance forklift truck adopts a 3-point supporting system. The turning radius is 1690mm. The forklift can realize smooth turning to navigate narrow warehouse layouts. With durability, efficiency and quality as the top priorities, electric forklifts are designed to help you with all your material handling needs. Our forklift electrics are used in a variety of applications including manufacturing, warehousing, distribution, beverages and retail
• The forklift adopts a full AC drive motor which has no carbon brush, no contacts and delivers large output power.
• The rear axle drive performs the functions of bearing weight, speed reducing, and differential effect. Meanwhile, the maintenance and protection cost is quite low.
• This forklift is equipped with CURTIS water and dust-proof intelligent LCD meters which can display the running state, failure testing and some other human-machine interactive information of the whole truck. Which means that it can reflect the truck condition in real-time.
• This electric 3 wheel counterbalance forklift truck adopts a dual motor driving unit which features large torque and strong lifting power. When it is fully loaded, the moving speed of the forklift truck can be 13km/h. And the max gradeability can be 15%.
• The structure of rear turn single supporting dual wheel can not only improve the lateral stability of the rear of the truck, it can also help the forklift realize 90° turns. The minimized turning radius enables easy transportation in tight areas.
• The full hydraulic turning system can make the turning faster and more stable. It can also improve the safety performance of the forklift.
• The gearbox is a GP21 unit imported from ZF Friedrichshafen AG, Germany. It adopts a planetary gear transmission design. The structure is compact and the quality is outstanding. Meanwhile, transmission efficiency is high.
• The storage battery is equipped with a lifting eye on the top and fork groove at the bottom. You can choose either lifting appliances or forks to transport according to the practical conditions. The operation is easy, so only simple training is needed.
• The equipped DC voltage converter can be used to balance the battery so that it can sufficiently prolong the service life of the battery.
• The driving cab of electric 3 wheel counterbalance forklift truck adopts a fully sealed design which can effectively protect the operators from severe conditions. There is also an additional fan heater to increase the temperature in the driving cab to improve the operating environment of the drivers.
• The high intensity frame carriage of the forklift truck is made of welding finished steel so that it features good driving stability and safety.
• The driving cab adopts design of large glass area which can significantly improve the view of the operator, thus increasing operating safety.
• The forklift truck has a unique steering wheel and adjusting handle design. The instrument desk is protected by covering parts so that the internal parts are water, dust and rust proof.
• There is large storing space in the driving cab which can be used for storing cups, papers, tools and personal belongings.
  With durability, efficiency and quality as the top priorities, electric forklifts are designed to help you with all your material handling needs. Our forklift electrics are used in a variety of applications including manufacturing, warehousing, distribution, beverages and retail
