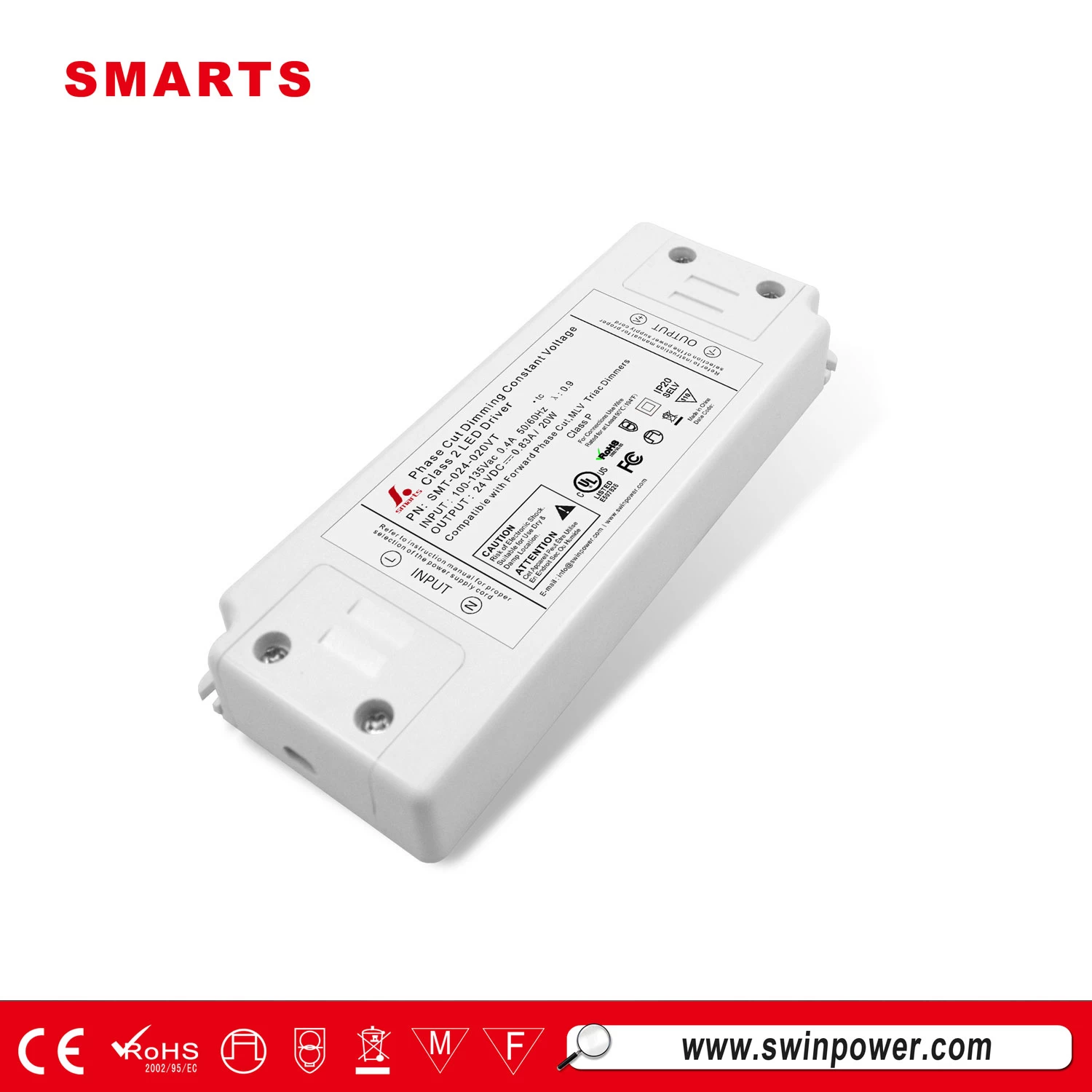

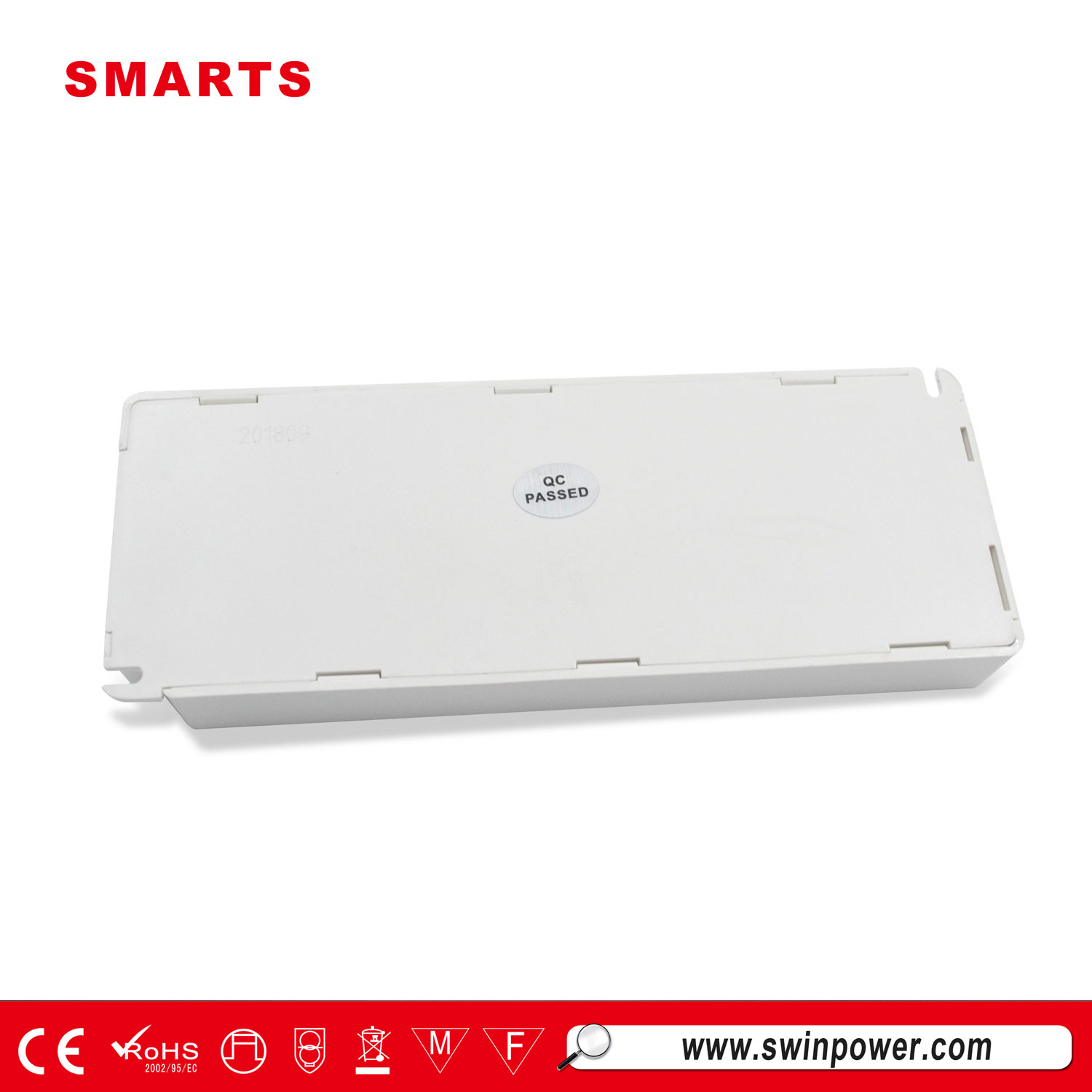

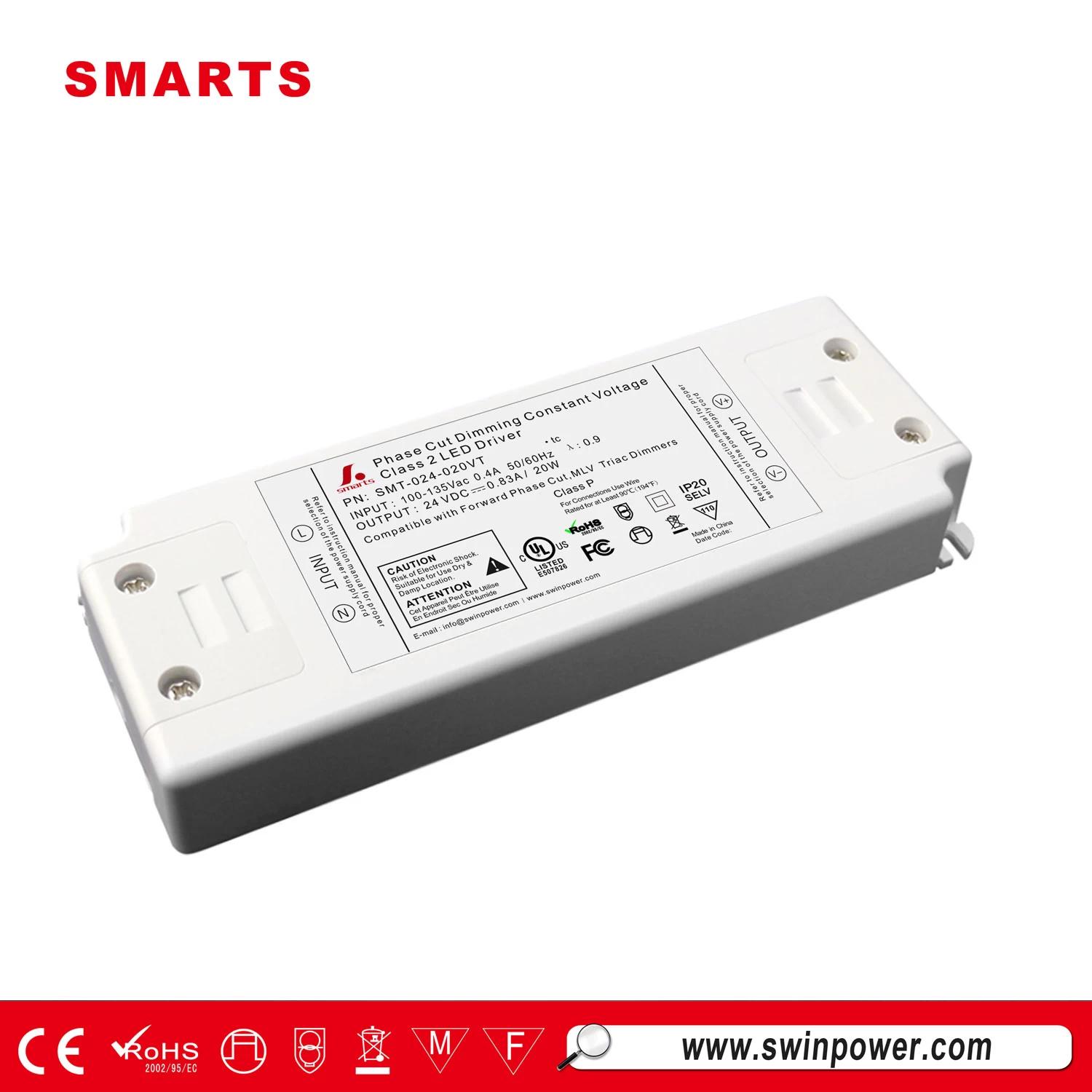

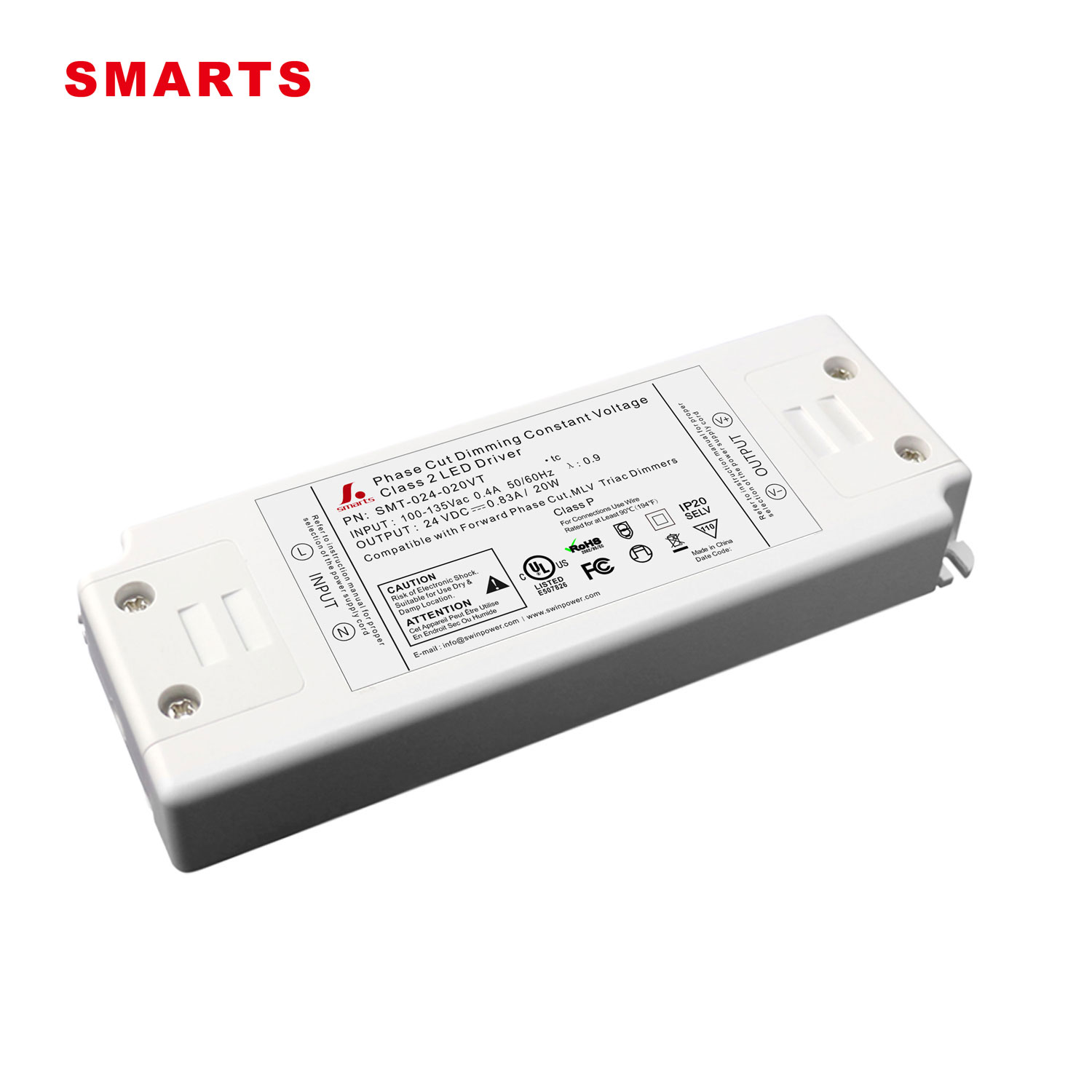

3 years warranty 24v 20w triac dimmable constant voltage led driver for led lighting
UL list triac dimmable 24v 20w led driver are high efficiency,high reliability,save energy.It has short circuit/overload/over voltage/over temp protections.
Product Spec.
|
Model
|
SMT-012-020VT
|
SMT-024-020VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
1.67A
|
0.83A
|
|
Rated Power
|
20W
|
20W
|
|
Input
|
Voltage Range
|
100~130VAC / 170~265VAC
|
100~130VAC / 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
47~63HZ
|
|
Power Factor
|
PF≥0.80
|
PF≥0.80
|
|
Efficiency
|
>84%
|
>84%
|
|
AC current
|
0.34A@120VAC, 0.18A@220VAC
|
0.34A@120VAC, 0.18A@220VAC
|
|
Leakage current
|
less than 0.70mA/110VAC / less than0.5mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic
|
|
Environment
|
Working temp.
|
-40~+60℃
|
|
Working humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1500KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
other information
|
Warranty
|
3 years
|
|
Case material
|
plastic
|
|
Cetificate
|
CE/ROHS/FCC/UL
|
|
Waterproof rate
|
IP 20
|
Packaging & Shipping
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
-
MOQ: 1 pcs
-
Delivery: 7 working days for sample order,12 working days for 500pcs.
-
Shipping freight are quoted under your requests.
-
Loading port: Xiamen
