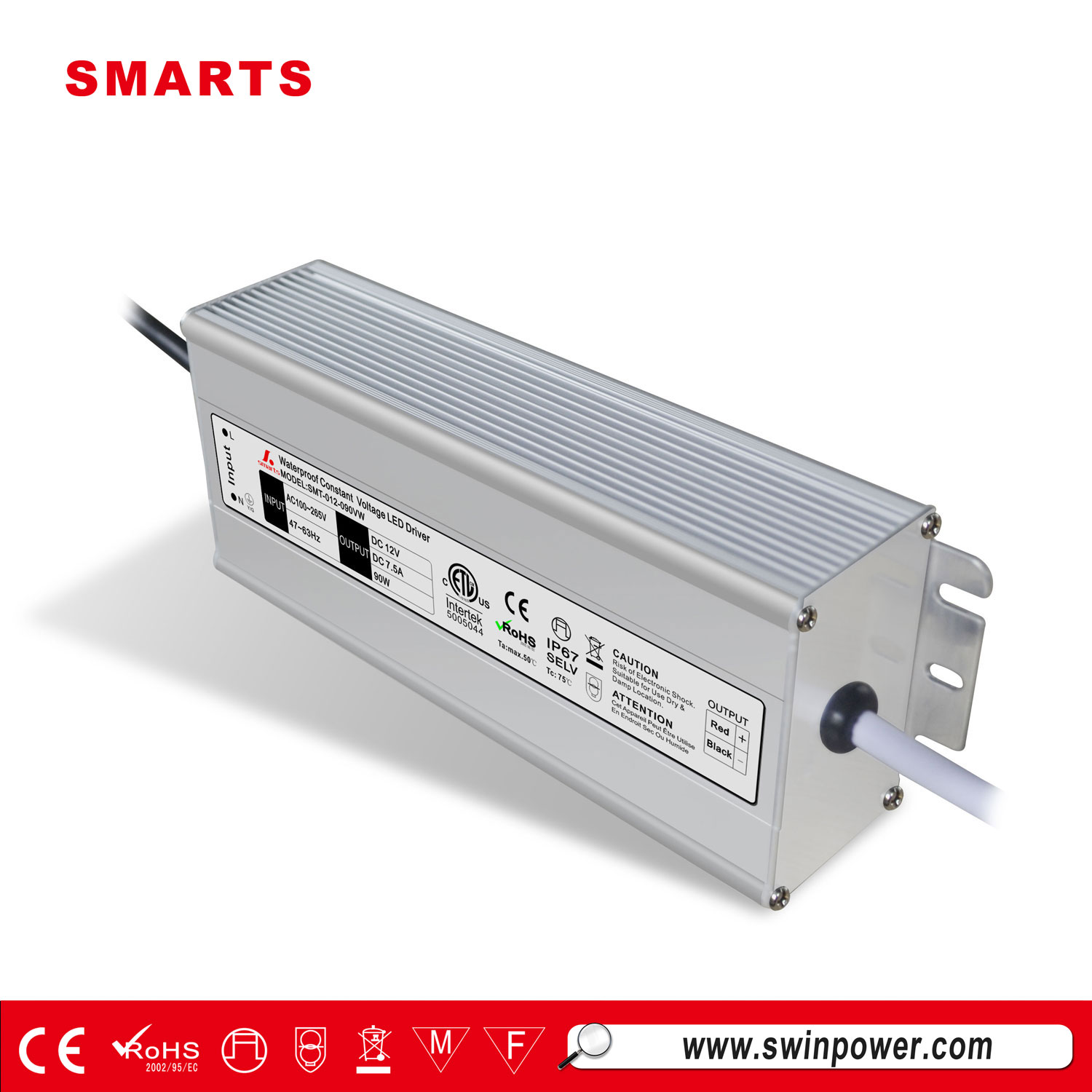

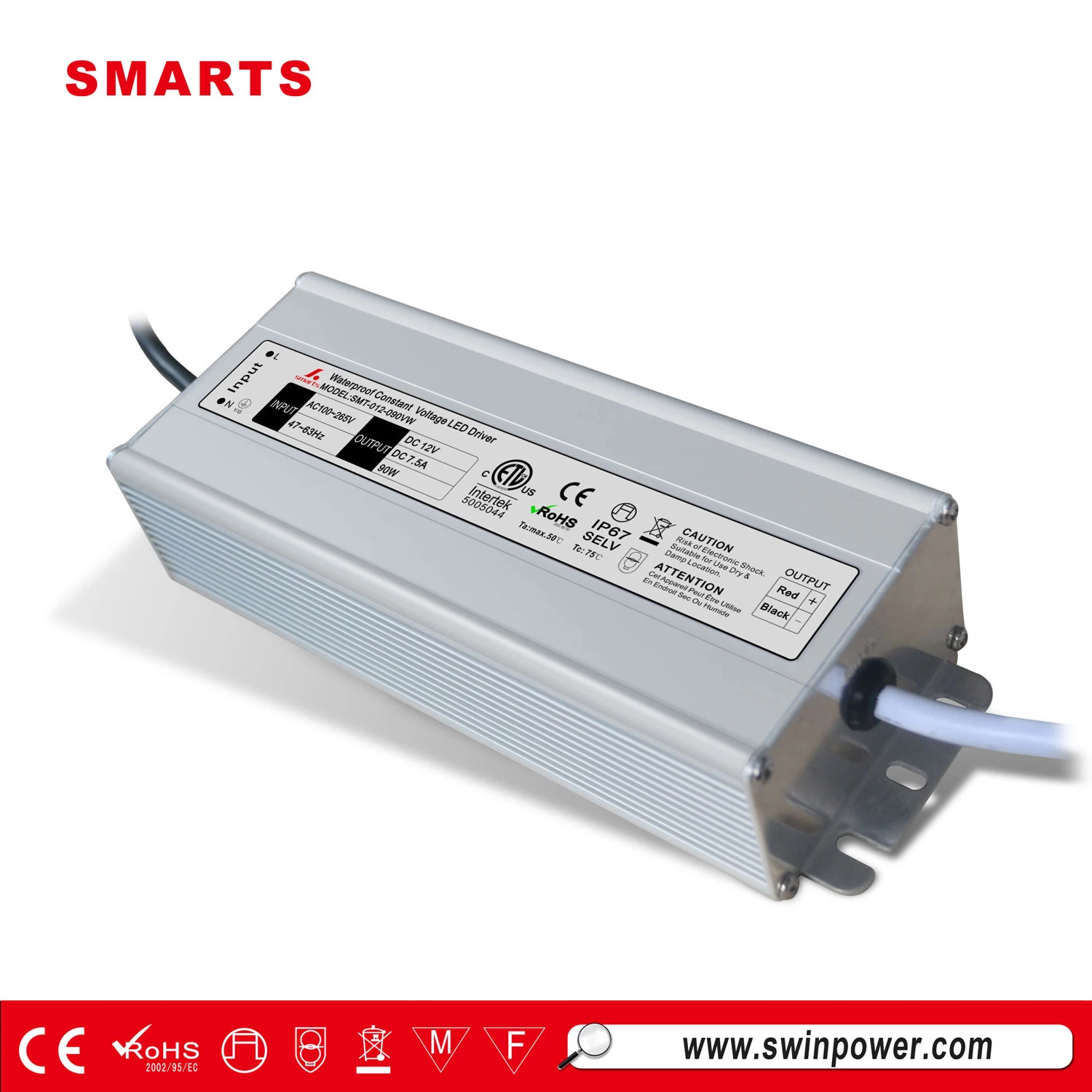

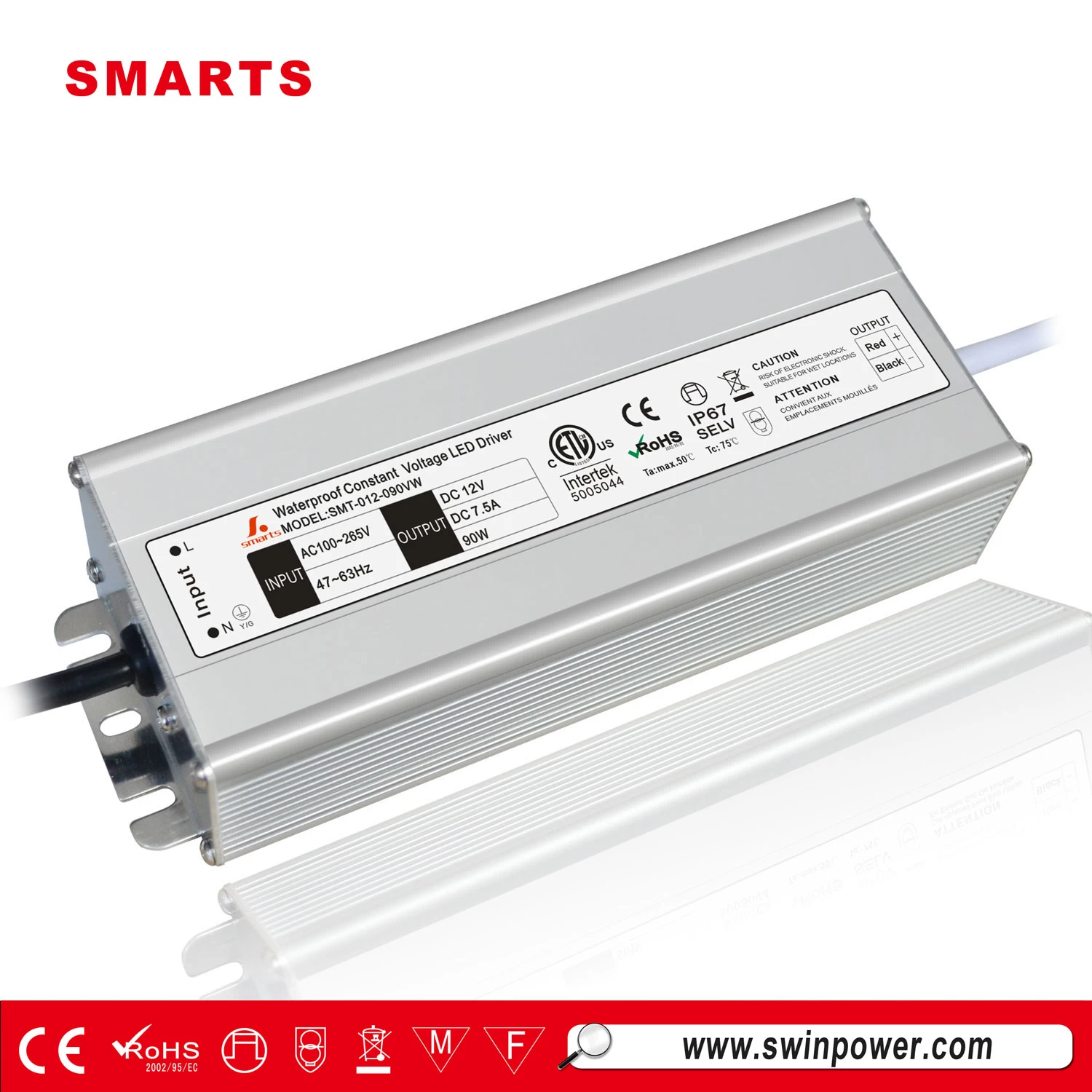

3 years warranty 90W IP67 Waterproof ac dc outdoor led power supply
IP67 waterproof led power supply SMT-012-090VW could be used for indoor and outdoor installation, 100% QC inspection before shipping.
Parameter
|
MODEL
|
SMT-012-090VW
|
SMT-024-090VW
|
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
|
RATED CURRENT
|
7.5A
|
3.75A
|
|
|
|
CURRENT RANGE
|
0~7.5A
|
0~3.75A
|
|
|
|
RATED POWER
|
90W
|
90W
|
|
|
|
RIPPLE&NOISE(max)
|
150mV
|
140mV
|
|
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
|
|
SETUP RISE TIME
|
80ms/110VAC
|
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110VAC
|
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
|
|
|
AC CURRENT(Typ.)
|
0.92A/110VAC, 0.86A/220VAC
|
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110VAC, 220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof IP67)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
How many LEDs can you run with a driver?
The maximum number of LEDs you can run from a single driver is determined by dividing the maximum output voltage of the driver by the forward voltage of your LED(s). When using LuxDrive drivers, you determine the maximum output voltage by subtracting 2 volts from your input voltage. This is needed because the drivers need a 2 volt overhead to power the internal circuitry. For example, using the Wired 1000mA BuckPuck driver with a 24 volt input, you would have a maximum output voltage of 22 volts.
