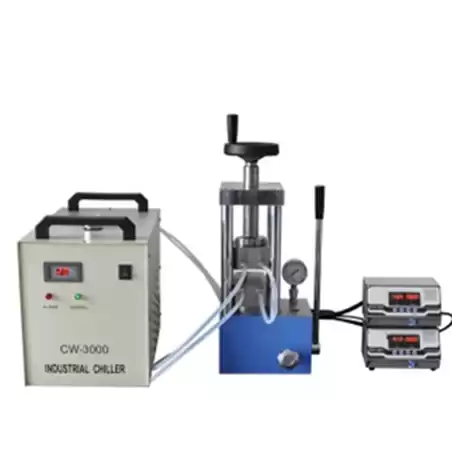

The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.

It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.

It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.

It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.

Technical parameters

Product Name	Lab Press Machine
Module	TMAX-RT-24D
Pressure range	0-24T（0-34MPa）
Piston diameter	Chrome plating cylinder
Standard pressure gauge type	Analog type, Ton and Mpa double-scale display
Optional pressure gauge	Digital display 0.00-40.00 MPa, accuracy 0.01 MPa at extra fee
Pressurization method	manually pressurization
Temperature Controller Type	PLC Programmed Temperature Controller (Double Temperature Controller)
Temperature Control Range	RT-600.0℃
Heating Temperature of Die	RT-300.0℃(can be customized to 500℃ high temperature die)
Control accuracy	0.1℃
Insulation mode	Imported insulation plate
Cooling mode	Rapid cooling by water cooling (water cooler is optional)
Overall structure	Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point
Heating Die Size	Double Heating Plate 100 x 100mm
Power supply power	220V/1000W
Main Machine Size	405 x 260 x 525mm (excluding optional)
Size of the whole machine	1000×470×500mm
Weight	About 58kg
Instrument description	Workspace can be increased, special hot press can be customized according to user needs
