300°C 25T Automatic Flat Hot Press Featured by Temperature Control Accuracy 0.1°C

Features

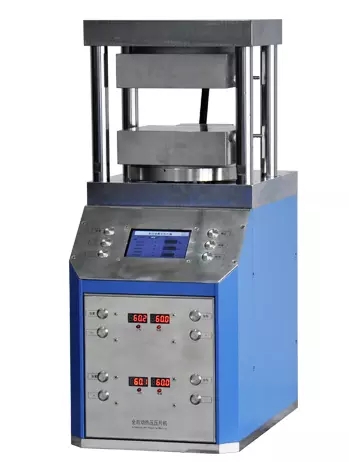

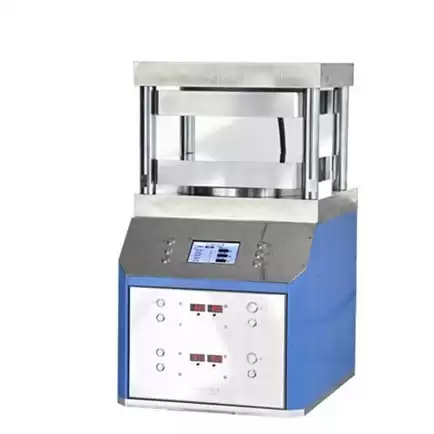

RYJ-300 automatic high temperature hot press is an integrated, widened and double plate high temperature hot press developed on the basis of the original manual hot press and fully automatic split hot press. This kind of hot press has a wide range of applications, meeting the needs of some customers for large tonnage pressure and large area sample heating.

The hot press is mainly used in some laboratories and units that need to prepare or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved, which is not easy to be broken and is conducive to cutting and preservation.

It is perfectly suitable for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.

Technical Parameter

Pressure range	0-25T
Pressurization process	Program Pressurized--Holding pressure--Pressure relief
Pressure holding time	0-999s
Thermostat temperature control	RT-600℃
Abrasive heating temperature	RT-300℃ (recommended temperature is not more than 450 ℃)
Temperature control accuracy	0.1℃

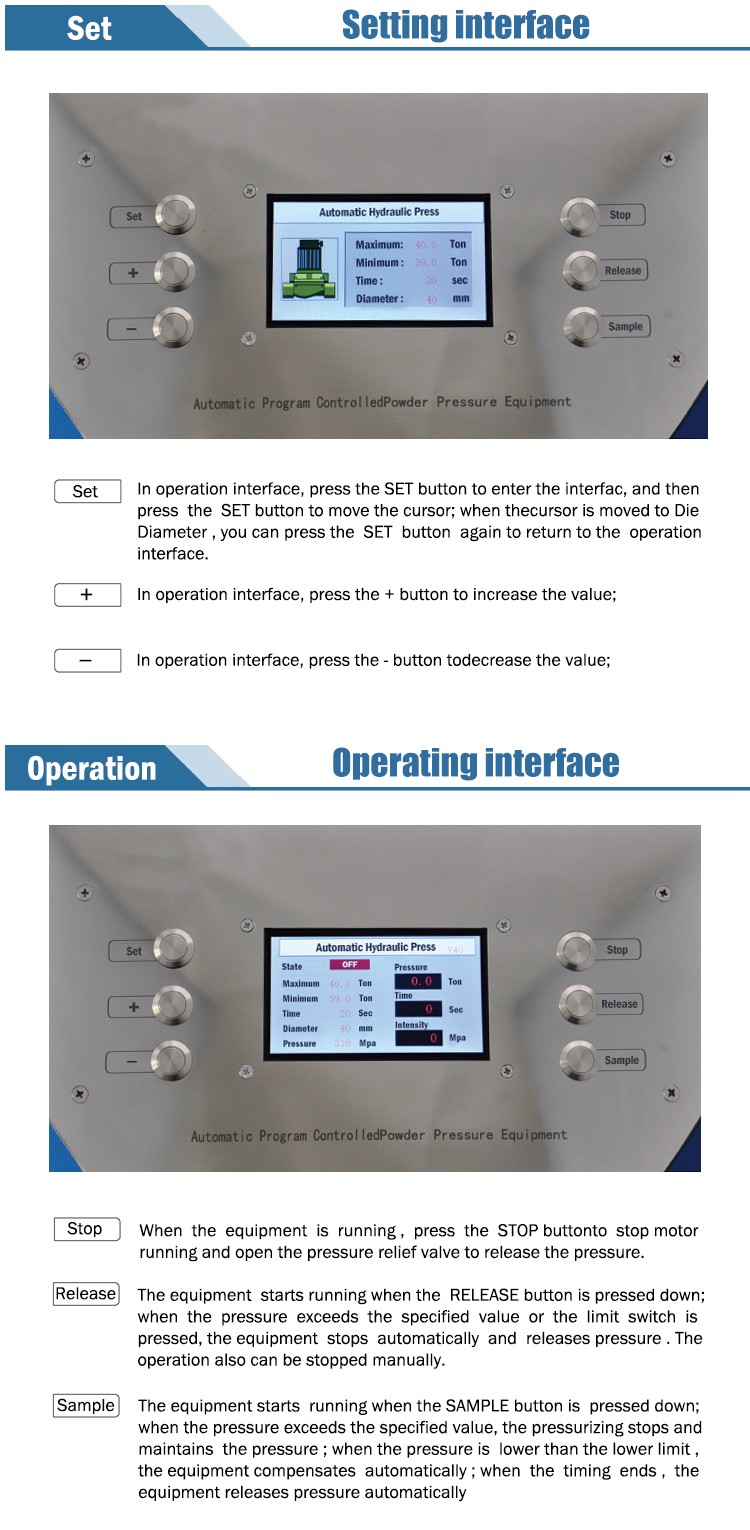

Control mode	LCD display, touch screen control
Pressure control	Automatic controlled by touch screen
Temperature control	Controlled by touch screen
Equipment insulation method	Imported heat plate + stainless steel water-cooled heat plate
Mold cooling mode	Water cooling quick cooling (water cooler is optional)
Machine structure	Integrated structure, fully automatic temperature and pressure control
Number of heating dies	Up and down 2 flat plates total, polished surface
Platen Area	200 x 200mm or 300 mm x 300 mm
Machine dimensions	420×550×680mm
Power supply	220V/4000W
Machine weight	About 300kg
