300℃ 12T Lab Electric Hydraulic Hot Press with Double Heat Plate
RYJ-600E series electric heating tablet press is a brand-new integrated, small tonnage, widened, double-plate hot tablet press developed by our company in accordance with market demand. This manual hot press is suitable for users who have strict pressure control accuracy and need wide-size mold compression test. It can perform high-temperature compression test on some solid samples such as powder, rubber, plastic film, and can also be used as a small vulcanizer It has been widely used in scientific research, teaching, persistence, pharmacy, catalysis, chemical industry and other industries, and can replace similar imported products
Specification
|
Model
|
RYJ-600E1
|
RYJ-600E2
|
RYJ-600EG1
|
RYJ-600EG2
|
|
Pressure range
|
0-12T（0-30MPa）
|
|
Piston diameter
|
Ф70mm chrome-plated cylinder
|
|
Pressure gauge type
|
Pointer type, 0-40Mpa, double scale display of pressure and pressure
|
|
Pressure method
|
Manual Pressure
|
|
Thermostat type
|
XNNETS PLC program temperature controller
|
|
Temperature control range of thermostat
|
RT --600.0℃/0.1℃
|
|
Mold heating type
|
Heating of upper and lower two plates (double plate/polished surface)
|
|
Mold heating temperature
|
RT-300.0℃
|
RT-500.0℃
|
|
Mold cooling method
|
Water cooling
|
Water cooling
|
|
Insulation method
|
Imported insulation board
|
Imported heat insulation board + stainless steel water-cooled heat insulation board
|
|
Heating mold size
|
80×180mm
|
200×200mm
|
180×180mm
|
200×200mm
|
|
Power
|
220V/1800W
|
220V/2500W
|
|
Dimension
|
280×320×520mm
|
|
Weight
|
95kg
|
|
standard configuration
|
1 hot press (water cooler optional)
|

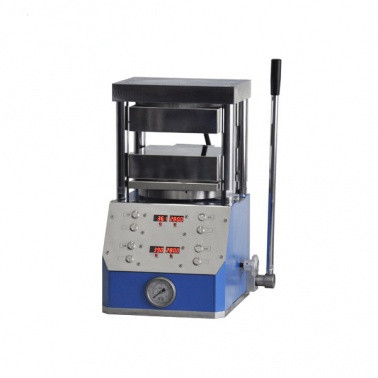

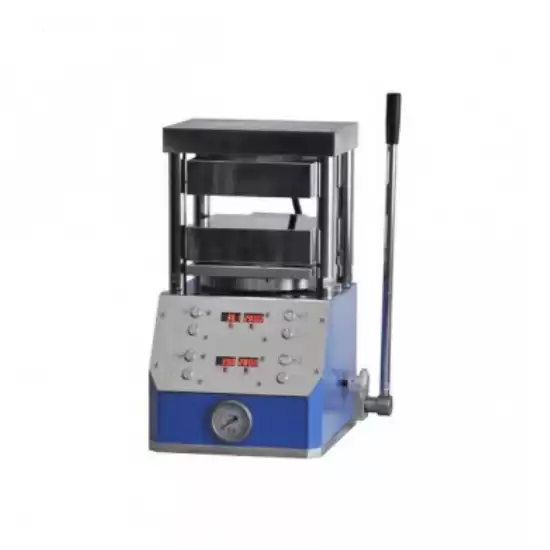

Product Images
