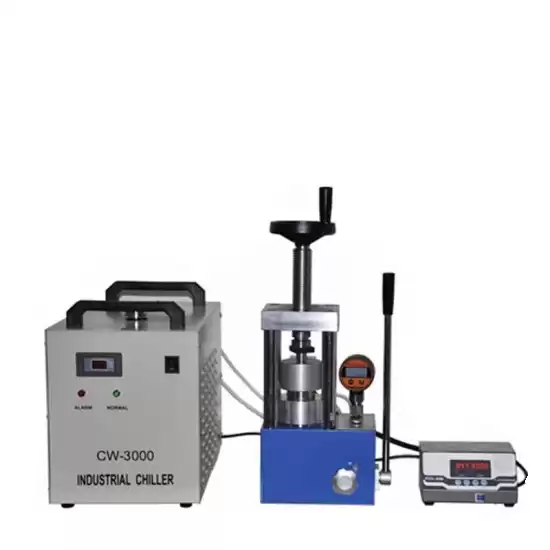

300℃ 24T Lab Hot Manual Hydraulic Press with Φ110mm Chrome-plated Cylinder and Double Heating Plate
The hot press is mainly used by laboratory users who need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films, rubber materials and other solid materials. The particles or powders of the samples are heated and pressurized to make chemical It has the advantages of improved stability, not easy to break, and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of universities and research institutes to perform spectroscopy detection and analysis. This machine can be used as a machine for multiple purposes, equipped with suitable pressure molds, and can also be used as an ordinary manual powder tablet press. At the same time, the machine is also suitable for other working occasions that require corresponding pressure, as a press to test various objects The degree of pressure resistance and so on.
The RYJ-600D series double-plate electric heating tablet press is a high-temperature double-plate heat press developed by our company in accordance with market demand and based on the original old heat press. This hot-pressing tablet press has a wide range of applications and meets the needs of some customers for large tonnage pressure, especially for heating samples at high temperatures. The main engine adopts integrated patented technology, the main board, oil sump, and oil cylinder are on the same main body. There is no sealed connection, which reduces the oil leakage point and reduces the oil leakage probability of the heat press. It is deeply loved by users at home and abroad.
Specification
|
Model
|
RYJ-600D1
|
RYJ-600D2
|
RYJ-600DG1
|
RYJ-600DG2
|
|
Pressure range
|
0-30T（0-31.5MPa）
|
|
Pressure conversion
|
1T=1.05Mpa
|
|
Piston diameter
|
Φ110mm chrome-plated cylinder
|
|
Max. cylinder stroke
|
40mm
|
|

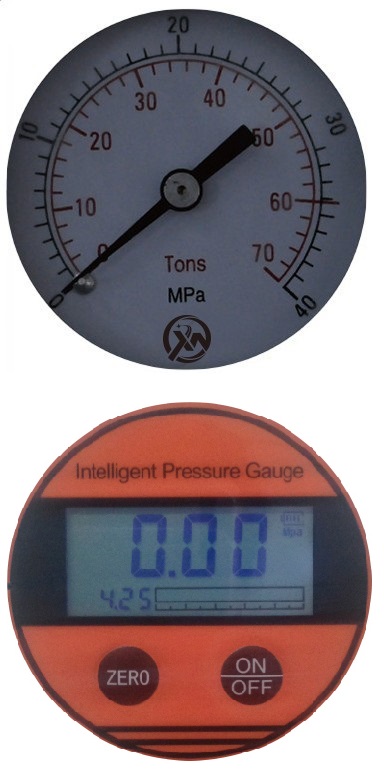

Pressure gauge Type
|
Pointer gauge, double scale display of pressure tonnage and pressure MPa
|
|
Digital pressure gauge
|
Digital display 0.00-40.00Mpa/0.01Mpa (optional, only "S" type)
|
|
Pressure method
|
Manual pressure
|
|
Thermostat type
|
XNNETS PLC program temperature controller
|
|
Number of thermostats
|
2 sets
|
|
Temperature control range of thermostat
|
RT -600.0℃/0.1℃
|
|
Mold heating type
|
Heating of upper and lower two plates (double plate/polished surface)
|
|
Mold heating temperature
|
RT-300.0℃
|
RT-500.0℃
|
|
Mold cooling method
|
Water cooling
|
Water cooling
|
|
Equipment insulation method
|
Imported heat insulation board
|
Imported heat insulation board + stainless steel water-cooled heat insulation board
|
|
Heating mold size
|
180×180mm
|
200×200mm
|
180×180mm
|
200×200mm
|
|
Power
|
220V/1000W
|
220V/2000W
|
|
structure
|
Split structure
|
|
Host size
|
405×260×525mm
|
|
over dimension
|
1200×470×525mm
|
|
Weight
|
About 200kg
|
|
Standard configuration
|
1 electric tablet press, molds are purchased separately
|
Product Images
|
Model No.
|
RYJ-600D manual heat press pressure conversion table
|
|
Actual output pressure
|
Pressure gauge system pressure
|
Pressure gauge type
|
|
1 T
|
1.05 MPa
|
|
|
3 T
|
3.10 MPa
|
|
5 T
|
5.20 MPa
|
|
8 T
|
8.40 MPa
|
|
10 T
|
10.5 MPa
|
|
15 T
|
15.7 MPa
|
|
20 T
|
21.0 MPa
|
|
25 T
|
26.3 MPa
|
|
30 T
|
31.5 MPa
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
