300℃ 24T Lab Small Electric Hydraulic Hot Press with Double Heating Plate
Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Advantages
a.Small size, light weight,No oil, easy to carry.
b.High speed steel imported from Japan
c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.
d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage
Specification
|
Product Name
|
Lab Pressing Machine
|
|
Type
|
TMAX-Heat24T
|
|
Pressure range
|
0-24T (0-34 MPa)
|
|
Piston diameter
|
Chrome cylinder 95mm OD
|
|
Thermostat temperature control
|
RT-600℃
|
|
Abrasive heating temperature
|
RT-300℃
|
|
Temperature control accuracy
|
0.1℃
|
|
Insulation method
|
Imported heating plate
|
|
Cooling method
|
Rapid cooling water
|
|
Mold cavity size
|
<20mm
|
|

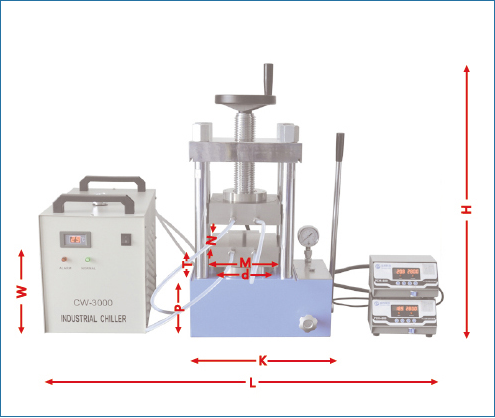

Main engine Size
|
254*175*415mm(K*P*H)
|
|
over dimension
|
800*470*415mm(L*W*H)
|
|
Power
|
220V 50Hz
|
|
Main engine weight
|
47kg
|
Product Images
|
Actual pressure
|
System pressure
|
Double display pressure gauge
|
|
0.2[Tons]
|
1.25[MPa]
|
|
|
0.4[Tons]
|
2.51[MPa]
|
|
0.6[Tons]
|
3.77[MPa]
|
|
0.8[Tons]
|
5.03[MPa]
|
|
1[Tons]
|
6.28[MPa]
|
|
2[Tons]
|
12.5[MPa]
|
|
3[Tons]
|
18.8[MPa]
|
|
4[Tons]
|
25.1[MPa]
|
|
5[Tons]
|
31.4[MPa]
|
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
