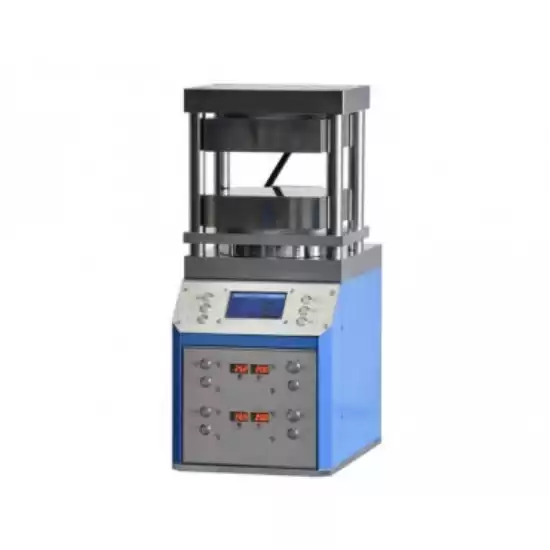

300℃ 25T Lab Automatic Hydraulic Press with Widened Double Heating Plate
RYJ-600Z series electric heating tablet press is a fully automatic, integrated, widened hot press developed by our company in accordance with market demand, based on the original manual hot press and split hot press . This hydraulic machine is widely used to meet the needs of some customers for large tonnage pressure and large area sample heating. The hot press is mainly used in some laboratories and units that need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films and other solid samples. The particles or powders of the samples are heated and pressurized to make them chemically stable It has the advantages of improved performance, not easy to break and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectroscopy detection and analysis.
Specification
|
Model
|
RYJ-600Z1
|
RYJ-600Z2
|
RYJ-600Z3
|
RYJ-600Z4
|
|
Pressure range
|
1-25T/0.1t
|
1-30T/0.1t
|
1-50T/0.1t
|
|
Pressurization process
|
XNNETS fully automatic, program pressurization/slow pressurization-program pressure maintenance-program pressure compensation-timing pressure relief
|
|
compress time
|
0-999.59(min, s)
|
|
Temperature control range of thermostat
|
RT -600℃
|
|
Thermostat display accuracy
|
0.1℃
|
|
Mold heating temperature
|
RT-300.0℃
|
|
Insulation method
|
Imported insulation board
|
|
Mold cooling method
|
Rapid cooling by water cooling cycle (optional for water cooler)
|
|
Heating mold size
|
80×180mm
|
200×200mm
|
300×300mm
|
400×400mm
|
|
Dimension
|
280×420×620mm
|
280×420×620mm
|
400×500×720mm
|
500×600×760mm
|
|
Power
|
220V/2000W
|
220V/2000W
|
220V/3000W
|
220V/6000W
|
|
Weight
|
About 150kg
|
About 160kg
|
About 300kg
|
About 400kg
|
|
structure
|
Integrated structure, fully automatic program control pressure and temperature
|
|
Heating mold type
|
Double plate heating up and down
|
|
Number of heating mold
|
Two heating plates up and down, polished surface
|
Note: A larger size double-plate heat press can be customized according to customer needs! ! !]
