300/500V Low Voltage PVC Insulated Home Application Flexiable wire cable
Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.

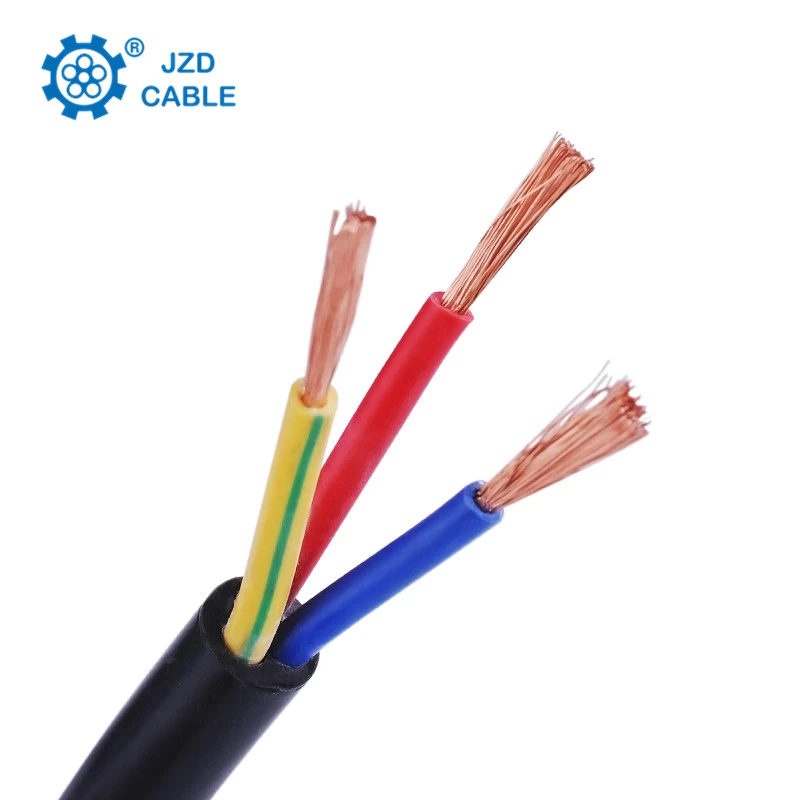

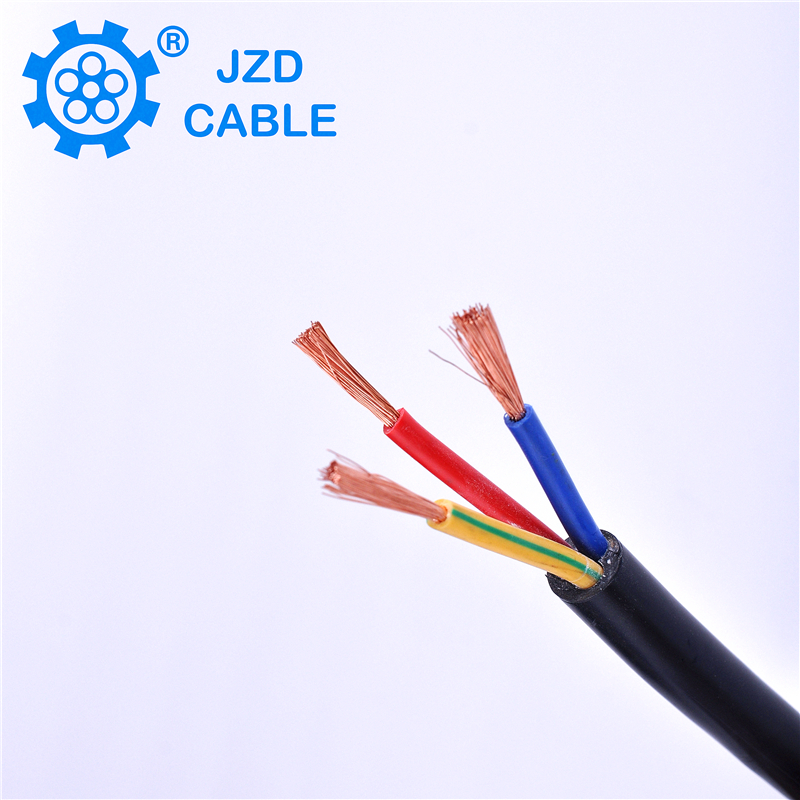

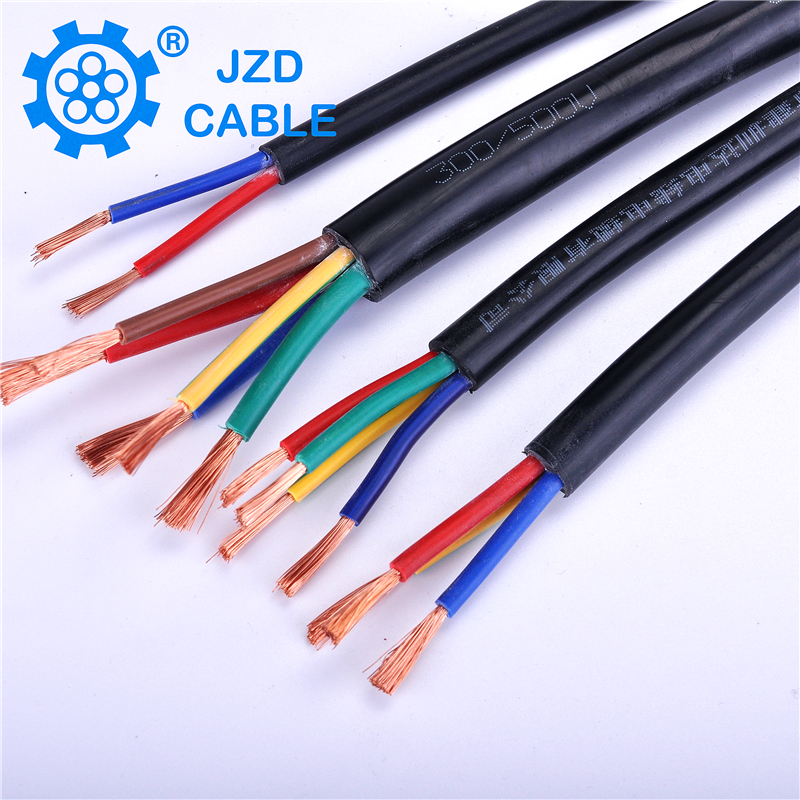

Brief construction
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3)Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Service performance
1) Rated voltage: 300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
|
Model No.
|
Conductor
|
Insualtion
|
Jacket
|
|
Cores × Nom. Area
|
Max. Resistance at 20°C
|
Thickness
|
Min. Resistance at 70°C
|
Thickness
|
Min. Dia.
|
Max.
|
|
mm²
|
MΩ/km
|
mm
|
MΩ/km
|
mm
|
mm
|
mm
|
|
RVV2×0.75
|
2×0.75
|
26
|
0.6
|
0.011
|
0.8
|
6
|
7.6
|
|
RVV2×1.0
|
2×1.0
|
19.5
|
0.6
|
0.01
|
0.8
|
6.4
|
8
|
|
RVV2×1.5
|
2×1.5
|
13.3
|
0.7
|
0.01
|
0.8
|
7.4
|
9
|
|
RVV2×2.5
|
2×2.5
|
7.98
|
0.8
|
0.009
|
1
|
8.9
|
11
|
|
RVV3×0.75
|
3×0.75
|
26
|
0.6
|
0.011
|
0.8
|
6.4
|
8
|
|
RVV3×1.0
|
3×1.0
|
19.5
|
0.6
|
0.01
|
0.8
|
6.8
|
8.4
|
|
RVV3×1.5
|
3×1.5
|
13.3
|
0.7
|
0.01
|
0.9
|
8
|
9.8
|
|
RVV3×2.5
|
3×2.5
|
7.98
|
0.8
|
0.009
|
1
|
9.6
|
12
|
|
RVV4×0.75
|
4×0.75
|
26
|
0.6
|
0.011
|
0.8
|
6.8
|
8.6
|
|
RVV4×1.0
|
4×1.0
|
19.5
|
0.6
|
0.01
|
0.9
|
7.6
|
9.4
|
|
RVV4×1.5
|
4×1.5
|
13.3
|
0.7
|
0.01
|
1
|
9
|
11
|
|
RVV4×2.5
|
4×2.5
|
7.98
|
0.8
|
0.009
|
1.1
|
10.5
|
13
|
|
RVV5×0.75
|
5×0.75
|
26
|
0.6
|
0.011
|
0.9
|
7.4
|
9.6
|
|
RVV5×1.0
|
5×1.0
|
19.5
|
0.6
|
0.01
|
0.9
|
8.3
|
10
|
|
RVV5×1.5
|
5×1.5
|
13.3
|
0.7
|
0.01
|
1.1
|
10
|
12
|
|
RVV5×2.5
|
5×2.5
|
7.98
|
0.8
|
0.009
|
1.2
|
11.5
|
14
|
