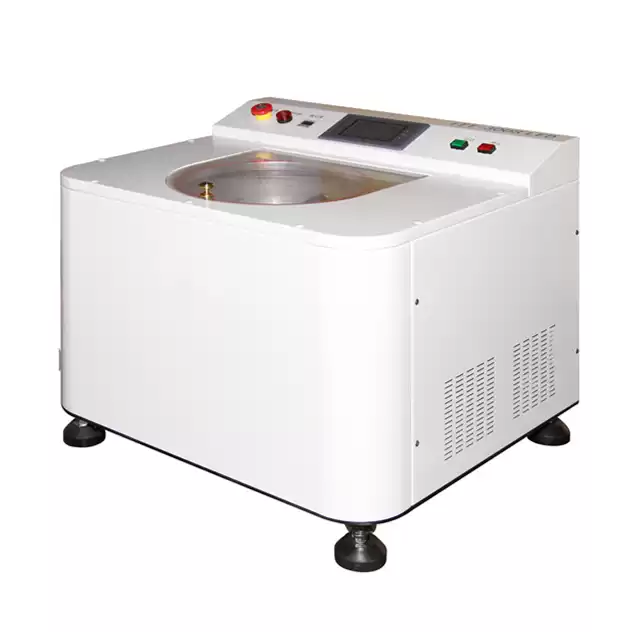

300 ML Vacuum Planetary Centrifugal Mixer With Two Containers & Fixed Speed Ratio
The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.
Detailed technical parameters
|
Name
|
300 mL Vacuum Planetary Centrifugal Mixer
|
|
Equipment type
|
TMAX-TP300S
|
|
Container Capacity
|
300ml*2（Cup)
|
|
The optimal capacity of mixing material
|
2-180ml*1（Cup)
|
|
Operation Type
|
Human-machine Interaction Mode
|
|
Revolution Speed
|
100-2000RPM
|
|
Rotation Speed
|
Invariableness
|
|
Vacuum
|
60L/min、About -98KPa 60/Minute,APROX.-98KPa
|
|
Storage Program
|
5 storage programs (each program can be set to five steps)
|
|
Protection
|
Door Cover ,Breakdown, Overload
|
|
Dimension(mm)
|
650L*580W*550H
|
|
Voltage
|
0.5-1.0KW,220V
|
|
Weight
|
150KG Net Weight:120 KG
|
|
Power Supply
|
（Uniphase),AC220V.50-60Hz
|
|
Clamp
|
Option
|
|
Syringe
|
Max30CC
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
