Intelligent 5Ply Corrugated Cardboard Production Line
300 Pro 5ply Corrugated Cardboard Production Line
Cardboard thickness: 5Ply (2ply, 3ply, 4ply, 5ply can be made)
Width: 1400-2500mm
Speed: 200-300meters /min
Servo Control + inverter control
Intelligent Control System
Features:
• Servo + inverter control system, intelligent corrugated cardboard line. Fast change or cassette type single facer for option
• Speed 200-300m/min, width 1400-2500mm. • Pro design Capacity: Able to handle 1200 order changes with production over 600000m2 in 24 hours• Average speed: Single Layer production: 220m/min, Double Layer production: 200m/min• Digital managerment of the production line, instelligent control system according to the paper, speed, environment, materails, temperature and auto statistics difference.• Automatically control the tension, paper temperature, glue making and application, intelligent order arrangement in production of combinations• DCS center control system with complete integration of electrical, electronic and mechanical manufacturing that truly complies with Germany Industrial 4.0• Using EtherCat communication technique for logic, simple and high machinery functionality concept for complete line• Can be customized according to different customer's situation

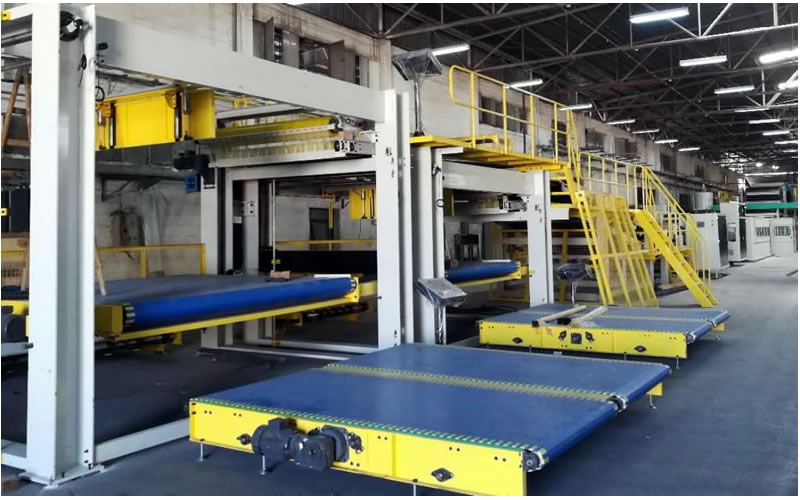

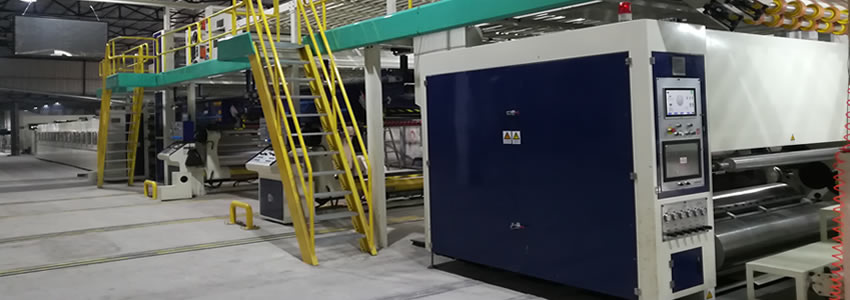

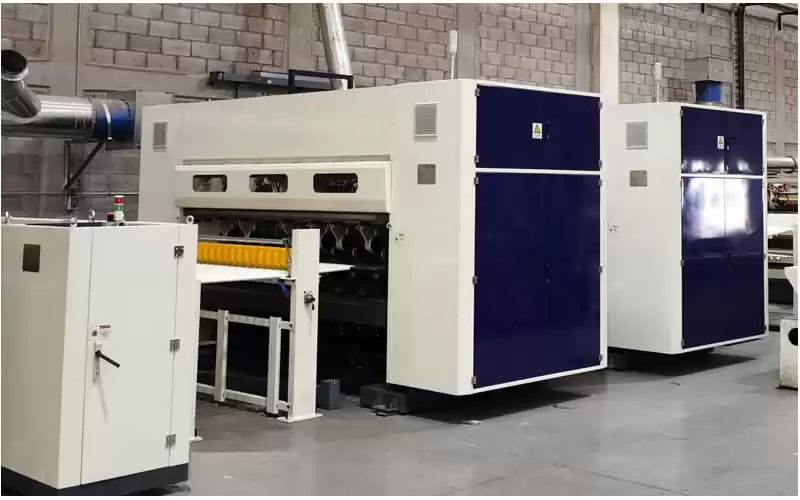

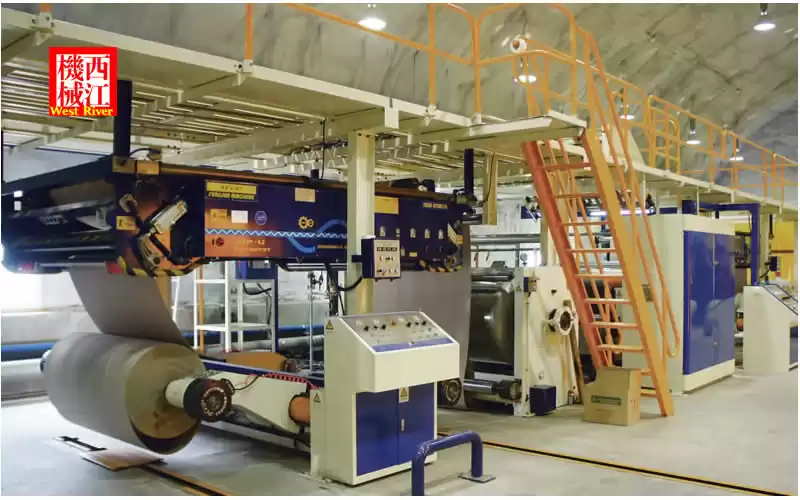

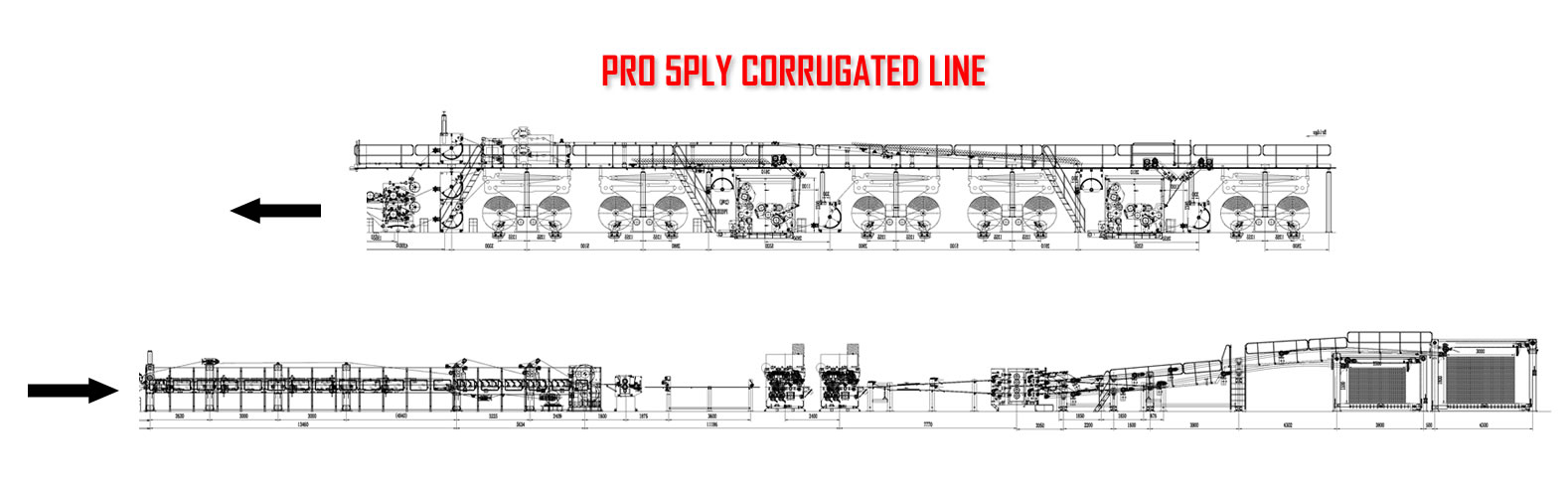

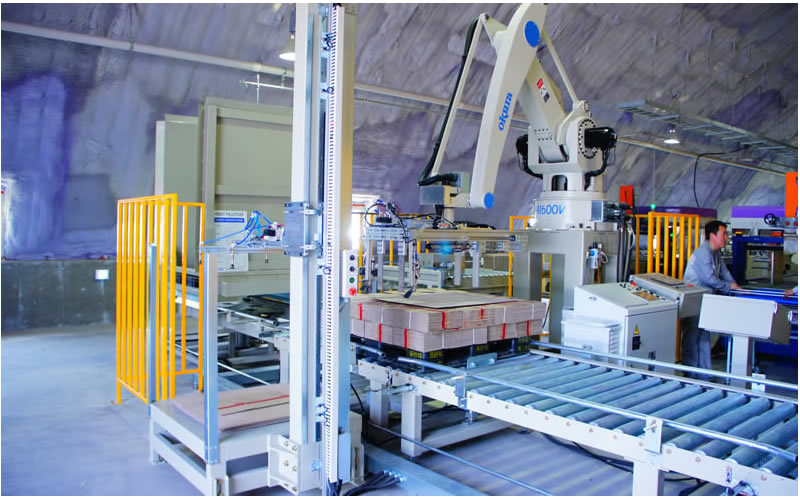

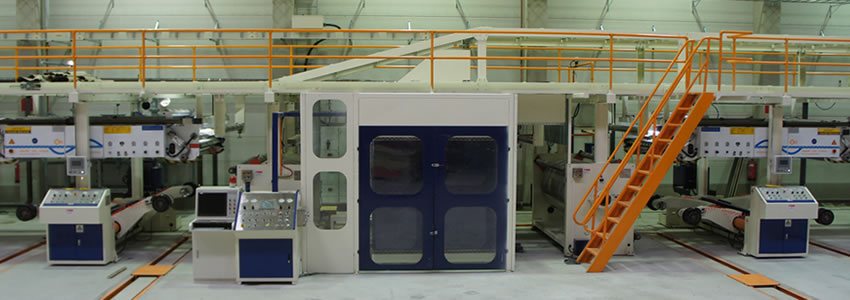

Product Show
FAQs
1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer combined with WEST RIVER, KL&Japan Shinko, Nantai & Japan Asahi, Jiayi, Guanwei, Jinshun brand machines.
2Q: Where are your factory located in ?
A: Our factories located in Shanghai, Guangzhou, Foshan, Zhaoqing Cities in China
3Q: How to choose the corrugated machine ?
A: According to your market requirement for the cardboard thickness, your target requirement, raw material size, we will give you the best choice of the corrugated machine.
4Q: What can you do for me?
A: Usually the customer need to choose the corrugated machine, flexo printer, die cutter and other converter machine separately by different supplier, but we will give you the whole plan design solution from A to Z, what you need to do is just tell us your target, then you will get the most suitable proposal from us.
5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution, We have professional technicists to supervising to production, Our professional department to examine about every production process
6Q:What can you do if the machine face problem?
A: We provide the machine remote service system, and the warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we will charge for the maintanance, and we supply the technical support for the whole life of the equipment.
