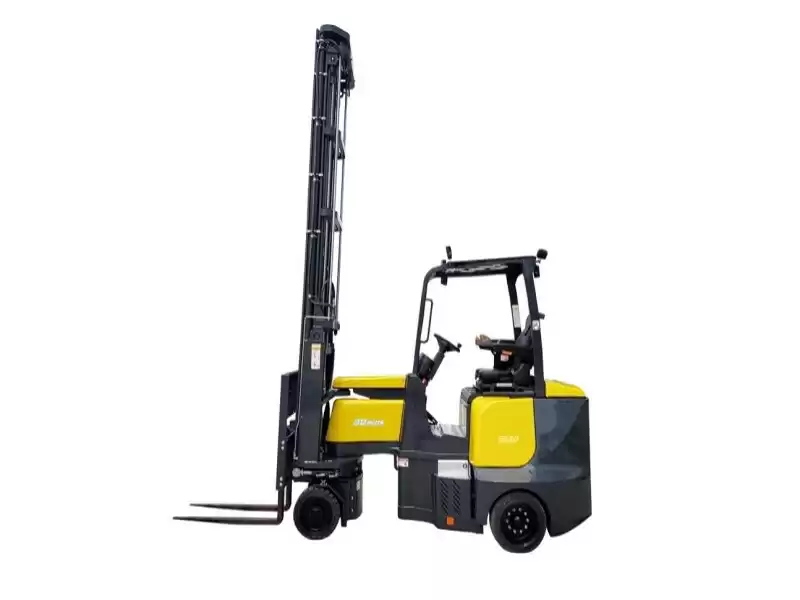

Li-ion battery powered narrow aisle forklifts has the fingertip armrest, 80V
full AC control system, wireless camera, guiding lasers, cooling fans, smart
charger station, 80V 405ah Li-ion battery which is 5 years warrantied, OPS
system, proportional valve, 5 LED lights and 1 back-up warning light, triplex
full free mast, integral side shift, black solid tyres, suspension seat etc.
All configurations are top-level.
Configurations
|
Standard parts
|
Optional parts
|
|
Fingertip
armrest
|
Wireless camera
and monitor
|
|
Electro-hydraulic
proportional valve
|
Lithium ion
battery
|
|
80V AC ZAPI
controller
|
Double deep
forks
|
|
80V AC
lifting&;driving motor
|
Weighing forks
|
|
80V 400AH lead
acid battery and customized charger station
|
Height
pre-selector
|
|
LED &; warning
light
|
Cabin
|
|
Cooling fans
|
White tyres
|
|
Triplex full
free mast
|
Quad mast
|
|
Integral side
shift
|
Fork positioner
|
|
Load backrest
|
|
|
Black solid
tyres
|
|
|
Backup mirror
|
|
|
Suspension seat
with safety belt and OPS system
|
|
|
Guiding lasers
|
|
Specifications
|
Model
|
Unit
|
NA30
|
|
Capacity
|
KG
|
3000
|
|
Mast lift
height
|
MM
|
4300-12400
|
|
Mast free lift
height
|
MM
|
1365-4686
|
|
Mast closed
height
|
MM
|
2265-5665
|
|
Mast full extended
height
|
MM
|
5561-13739
|
|
Overall
length(excluding forks)
|
MM
|
2780
|
|
Ground clearance
|
MM
|
50
|
|
Overhead guard
height
|
MM
|
2270
|
|
Chassis width
rear
|
MM
|
1600
|
|
Chassis width
front
|
MM
|
980
|
|
Load center
|
MM
|
600
|
|
Wheelbase
|
MM
|
1735
|
|
Seat height
|
MM
|
1220
|
|
Mast tilt
angle(back/fwd)
|
DEGREE
|
3/1
|
|
Front chassis
rotate angle(left/right)
|
DEGREE
|
220
|
|
Ground speed
|
KM/H
|
16
|
|
Lift
speed(load/unload)
|
M/S
|
0.44/0.5
|
|
Front tyre size
|
MM
|
412x174
|
|
Rear tyre size
|
MM
|
457x170
|
|
Grade
ability(load/unload)
|
%
|
18/20
|
|
Battery voltage/capacity
|
V/AH
|
80/500
|
|
Weight including
battery
|
KG
|
5150
|
|
Weight excluding
battery
|
KG
|
7900
|
|
Traction motor
|
KW
|
19.5
|
|
Lifting motor
|
KW
|
15
|
|
Min net working
aisle width
|
MM
|
2100
|
|
Transfer aisle
width
|
MM
|
2700
|
