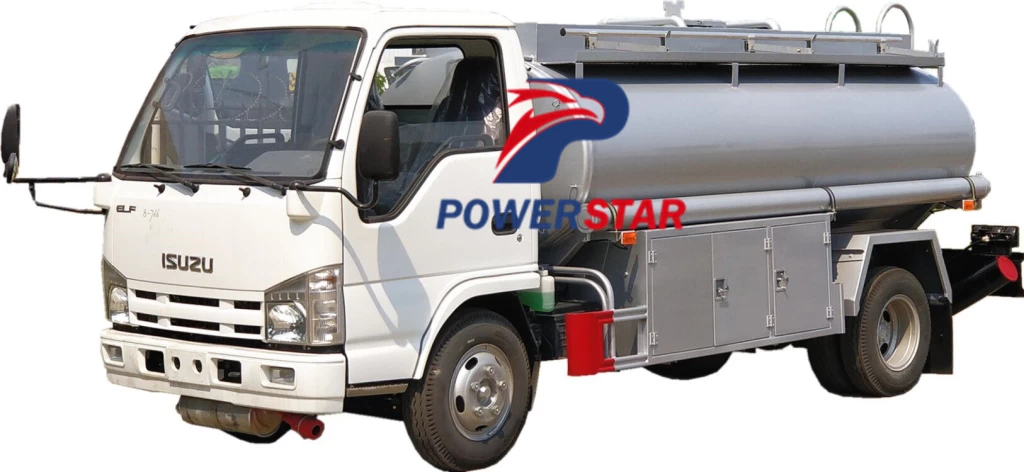

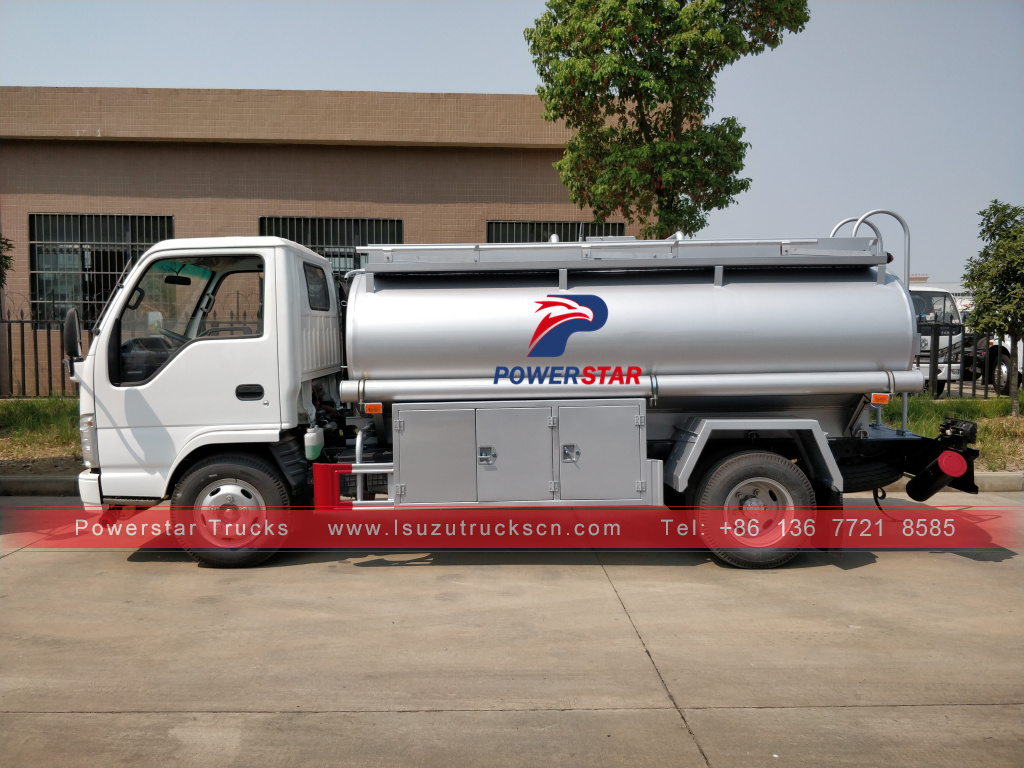

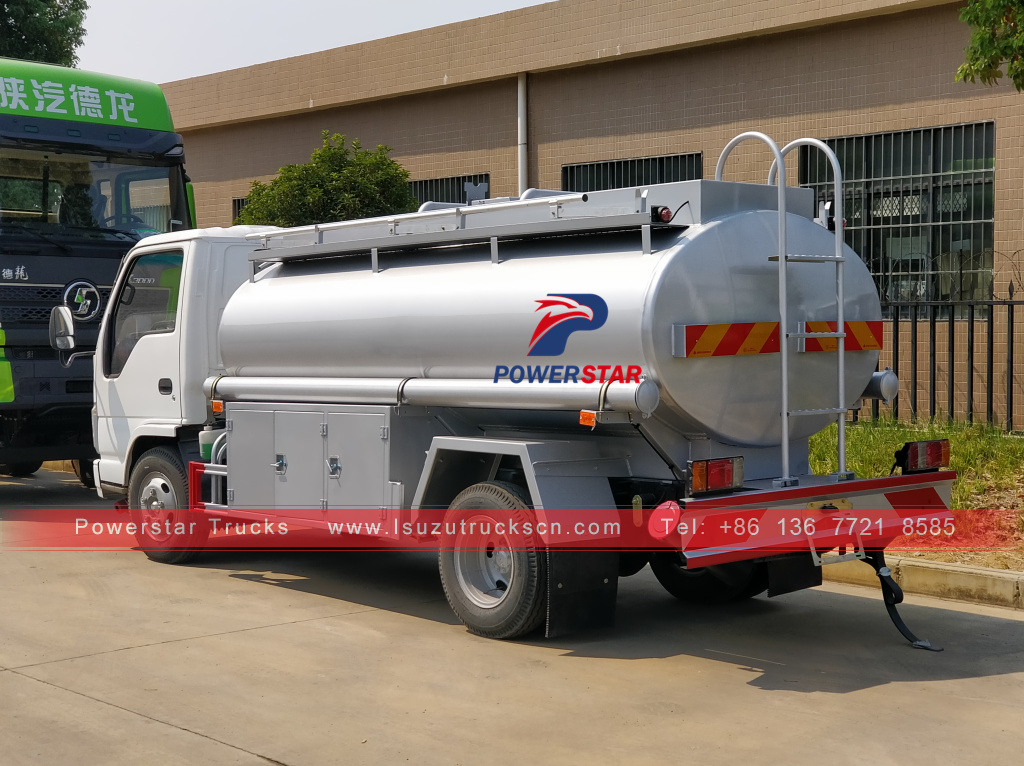

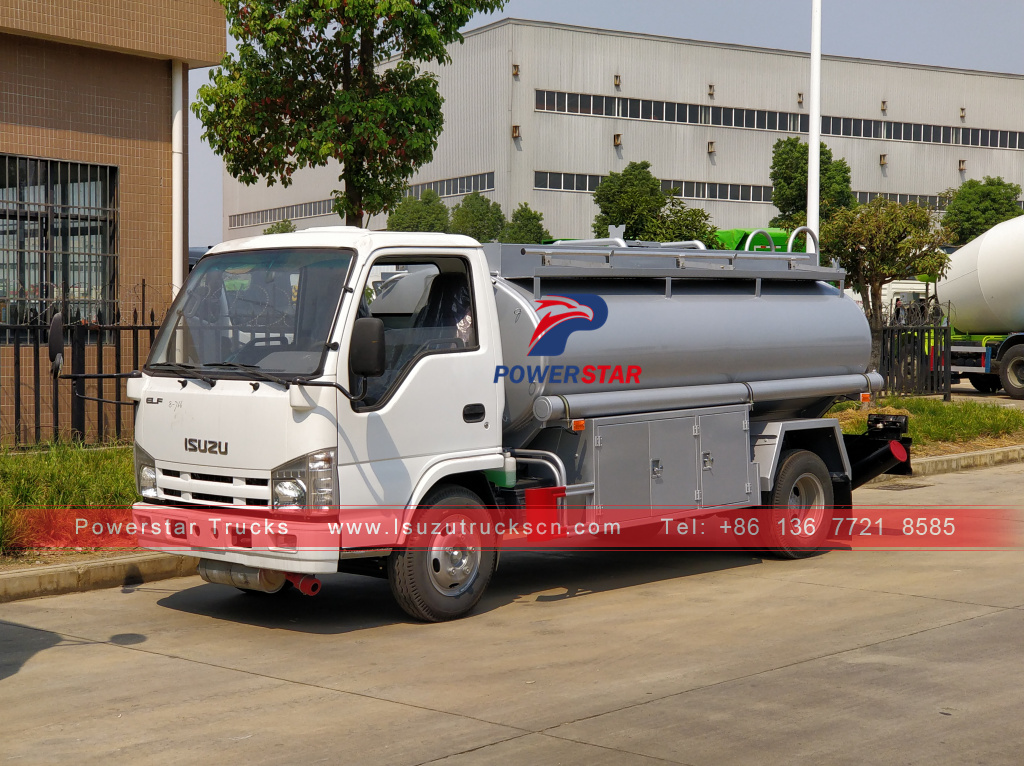

Isuzu Mobile Refueling Tank Truck 3,000L
Applications:
Refueling Tanker Truck Isuzu(also called Oil tank truck Isuzu, Crude oil tank vehicle, Oil refueling truck, Fuel refueling tank truck, Mobile oil refueling truck, Mobile refueling truck) is designed for the transport and storge of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc.
The Isuzu oil tank truck has a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filing stations and transport companies.
ISUZU brand fuel tank truck is equipped with Isuzu high quality chassis, which is well know for its high strength and high durability.
Key Features:
---- ISUZU light duty chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Fuel pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|
Isuzu Refueling Tanker Trucks (3,000L)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
5960 * 1900 * 2250 mm
|
|
GVW / Kerb Weight
|
7,000kg / 2,670kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
98 HP (72 KW)
|
|
Displacement
|
2771 ml
|
|
Emission Standard
|
Euro 3,4 or 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
5 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3360 mm / 2
|
|
Tire Specification
|
7.00-15
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Tank Capacity
|
3,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 5mm
|
|
Body Material
|
Weather resisting
steel
|
|

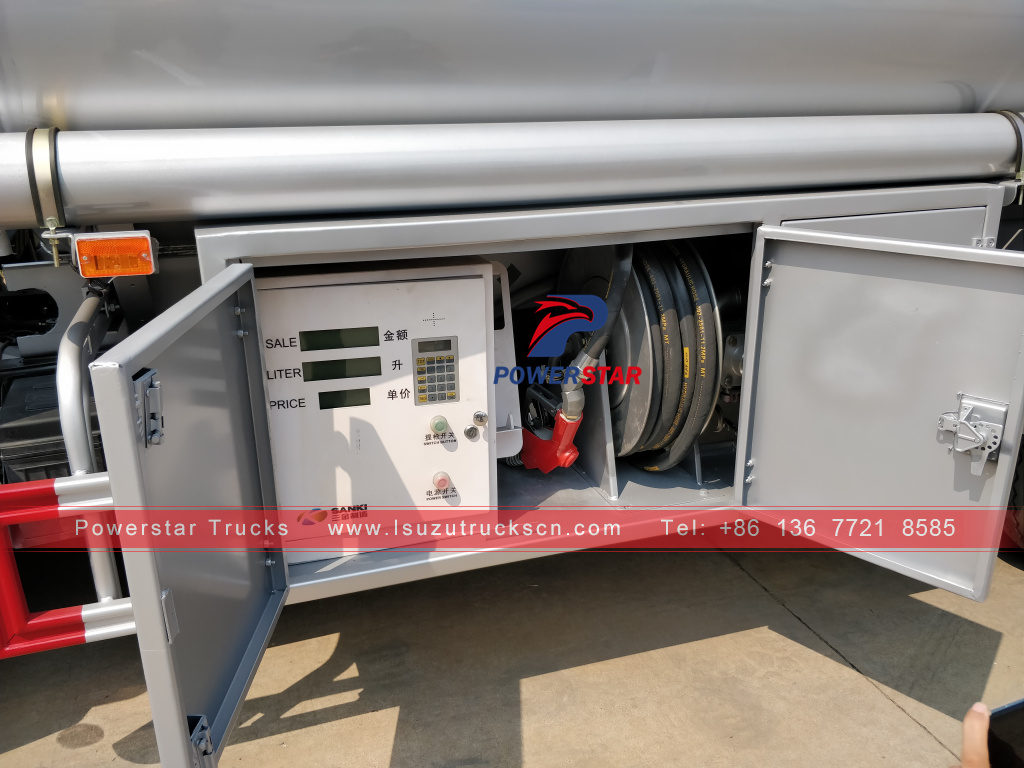

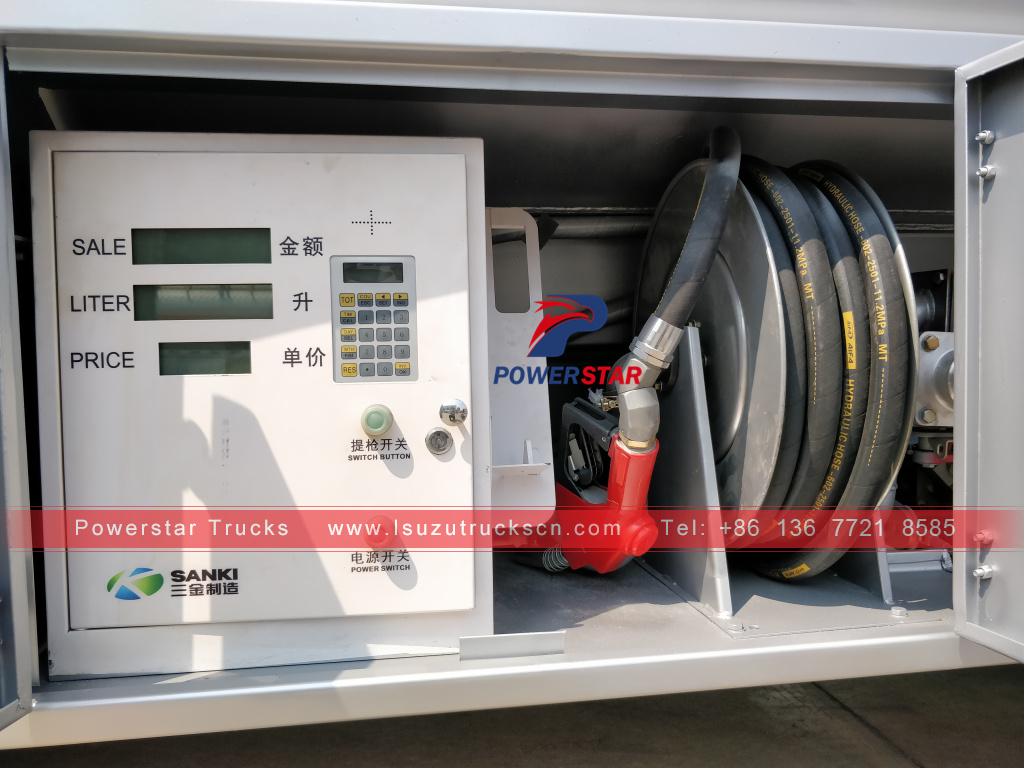

Fuel pump
|
China famous brand
|
|
Control
|
Manual (Optional air operated)
|
|
Rear working platform
|
Standard
|
|
All standard accessories: Warning
lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
