3000L ISUZU Water
Fire Trucks Water Mist
Tags: Best quality
2000L ISUZU Water Fire Trucks Water Mist manufacturer, Isuzu Fire-Fighting
Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency
Rescue Vehicle, Dry powder fire truck
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with
fire truck
Main
specifications:
|
Chassis
|
NKR77/600P
Light-duty chassis for Fire-fighting application
|
|
Model
|
PT5070GXF
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
3815
mm
|
|
Overall Dimension
|
6730×1980×2785 mm
|
|
Tank capacity
|
3000L water
|
|

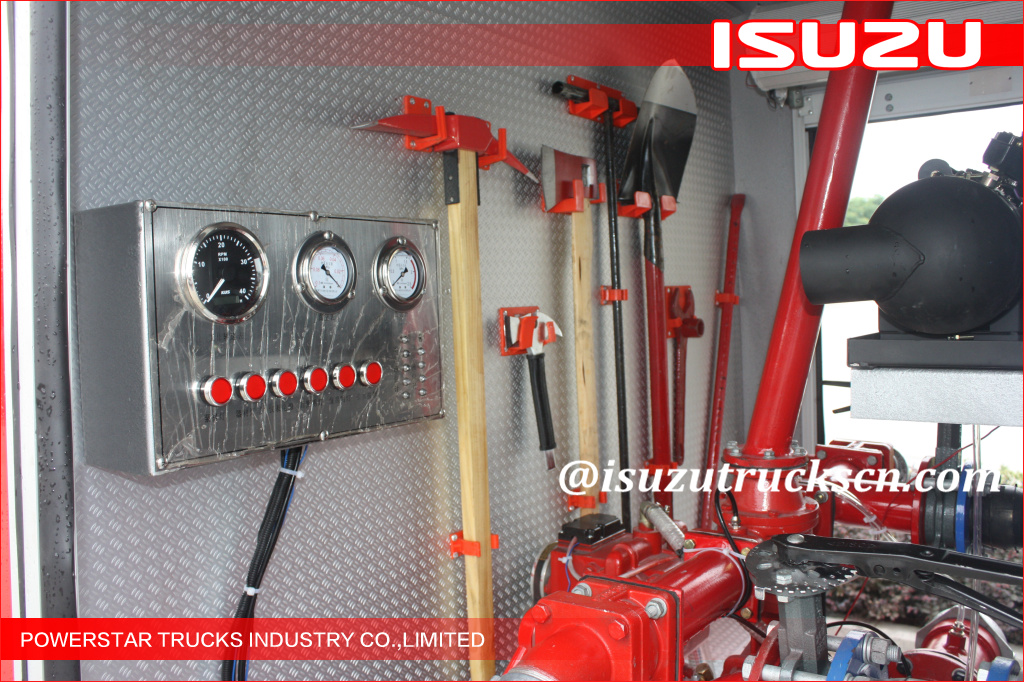

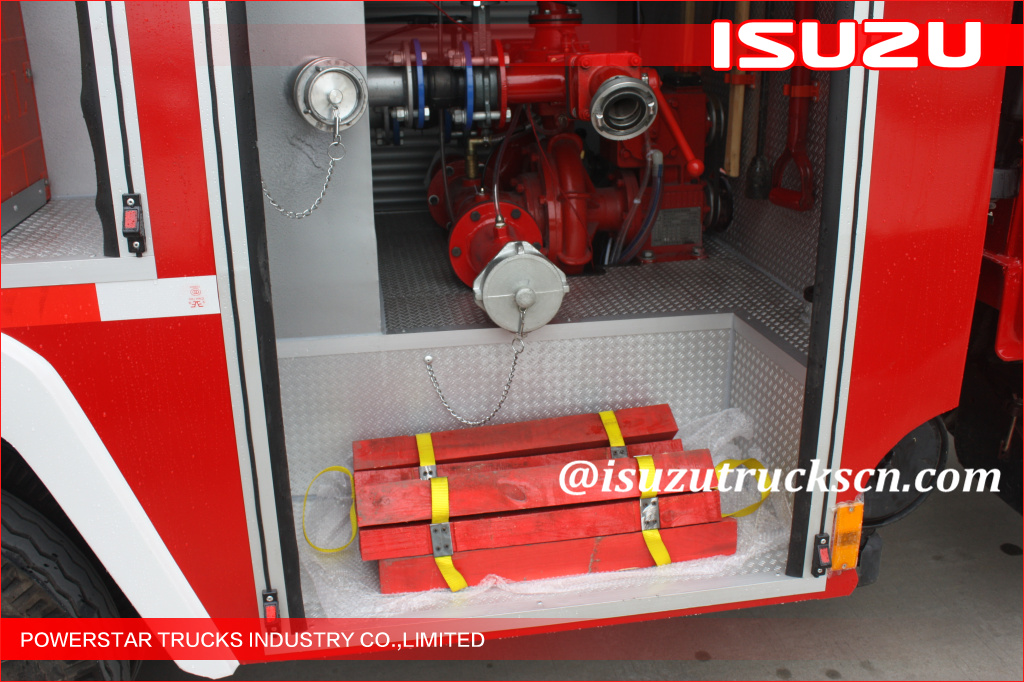

Fire Pump
|
Rated low
pressure:1.0MPa, Flow rate:30L/S. Rear-mounted，Water delivery time：≤35s
|
|
Fire Monitor
|
Rated
pressure≤1.0MPa,Rated Flow rate:20L/s, Throw
range≥50m, Rotation angle：360°,
|
|
Cab
|
Double cab with Four
doors, 5 seats with safe belts.
|
|
Engine
|
Model:
|
4KH1-TCG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power:
|
88
KW (120HP)
|
|
Gearbox
|
MSB
5-shift, mechanical type, 5 forward and 1 reverse with
|
|
Tire
|
7.00-16
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|

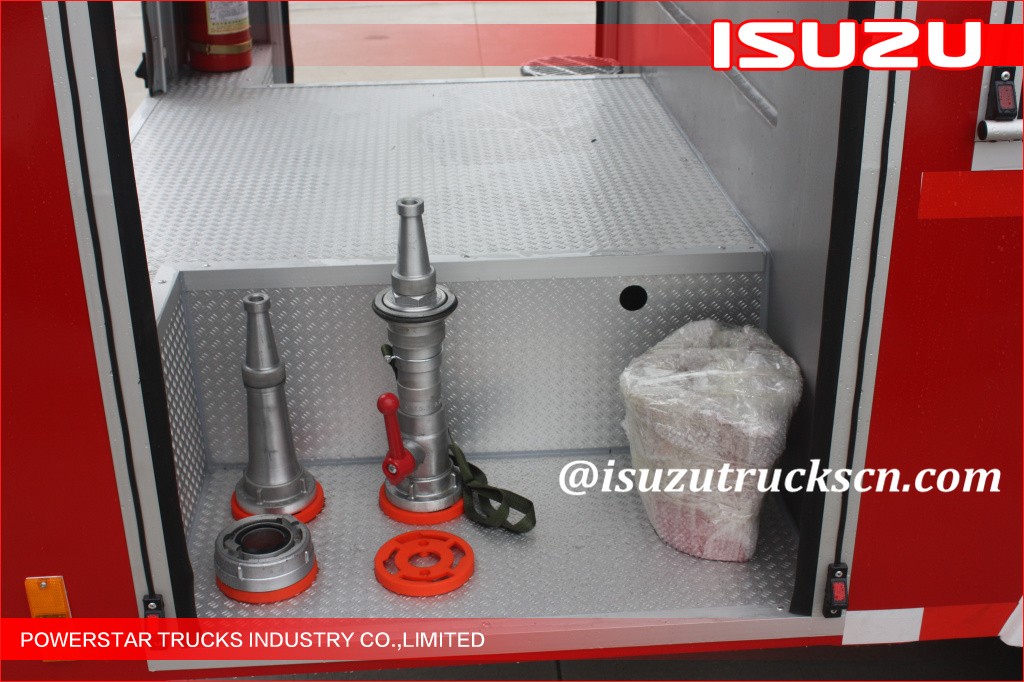

Accessories
List:
(With below equipment,
you can put into fire-fighting immediately)
Recently Customer
Build Examples:
