Product brief:

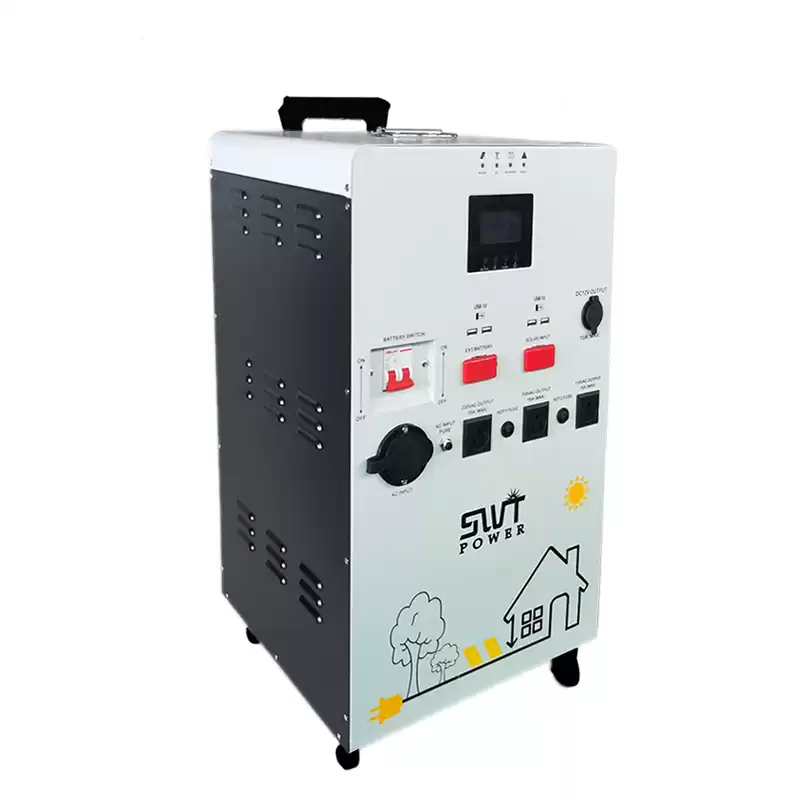

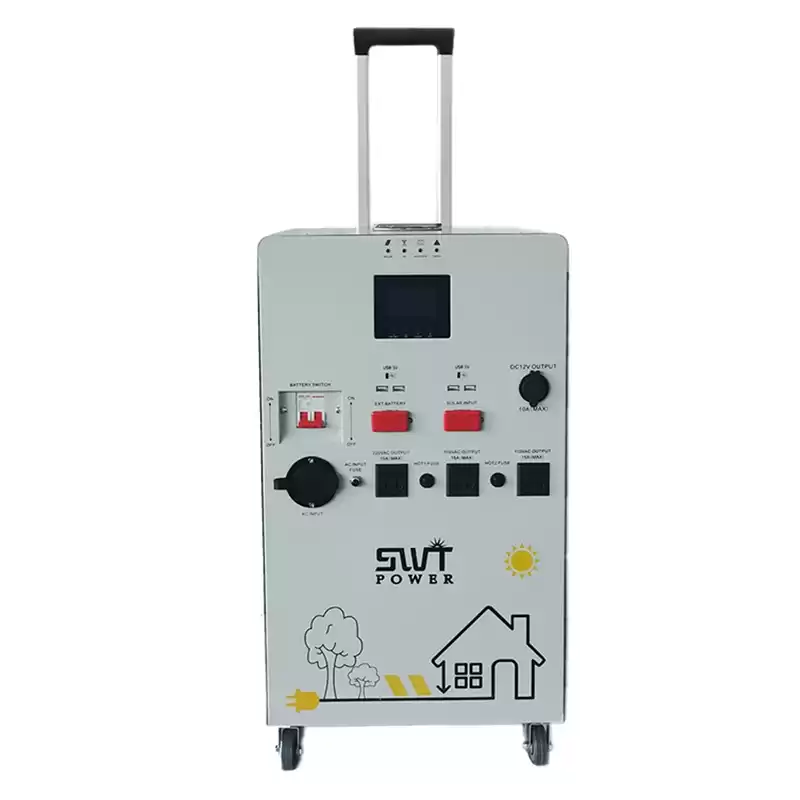

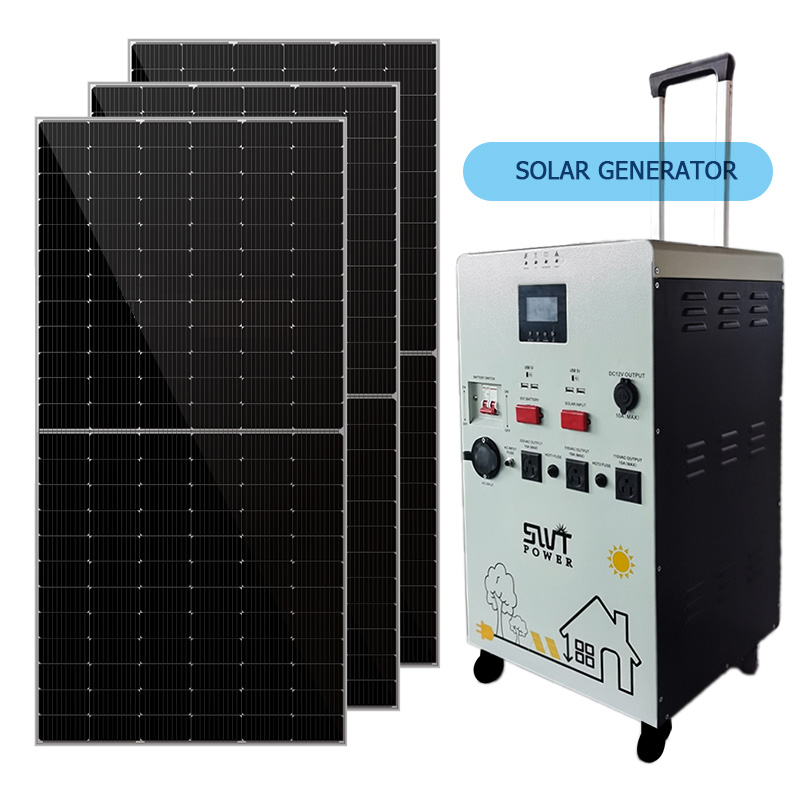

It is a gas-free compact portable multi purpose generator/battery backup which integrates outdoor portable battery pack and online UPS system.
Solar generators are essentially a battery system in a box, they store electricity that is given to them for later use. In fact, this electricity can come from many sources, like solar and utility.
Introduction:
LF-SG is as safe as it is powerful. Enjoy the peace of mind offered by surge and short circuit protection, temperature control and a pure sine wave inverter.
And for those who find themselves just in case, LF-SG provides the power to charge your important devices. Now you can be prepared in an emergency or a power outage.
Model
|
LF-SG 3KW
|
INVERTER OUTPUT &INPUT
|
Rated Power
|
3000W
|
Peak Power
|
9000W
|
Output Waveform
|
Pure Sine Wave
|
Output Voltage
|
10/120VAC(L-N) & 220/230/240VAC(L-N-L)±10RMS
|
Input Frequency Range
|
45Hz-65Hz
|
Output Frequency Range
|
50Hz/60Hz ±10%
|
Conversion Time
|
≤5ms
|
Cooling Method
|
Intelligent fan cooling, ≤42℃ fan rotates slowly, ≥45℃ fan rotates fast
|
AC INPUT&OUTPUT
|
Input Voltage Range
|
110/120VAC(L-N) & 220/230/240VAC(L-N-L)
|
Output Voltage Range
|
85-138VAC(AC:110) 170-275VAC(AC:220)
|
Output Frequency Range
|
Output Frequency Range
|
AC Charging Current
|
15A
|
Solar Controller
|
PV array MPPT voltage range
|
48V:72V-150V
|
Max PV input power
|
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
|
Battery
|
Battery Type
|
LiFePO4 Battery
|
Battery Capacity
|
6000Wh
|
Packing
![solar generator solar generator](/storage/uploads/images/202201/05/c5c142f1c9f8767da3a732351ca68ce4.jpg)

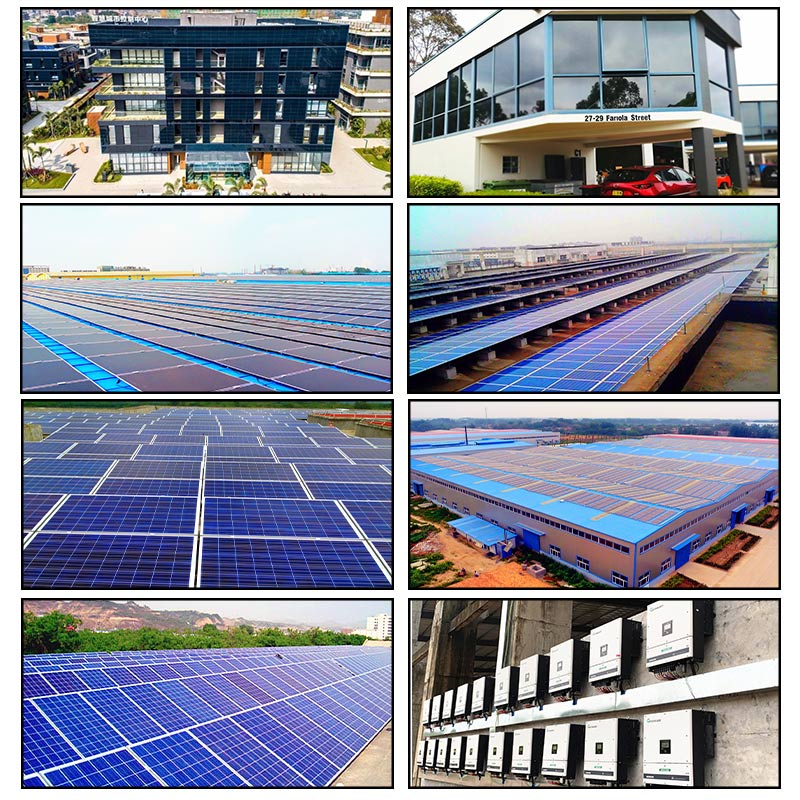

Proejcts
![solar generator solar generator](/storage/uploads/images/202201/05/4fdad266c764b1a51799c51a630b60ba.jpg)
