Alloy
|
AA1100. 3003. 3004. 3105. 5006. 5052. 3011. etc
|
|
Temper
|
H16, H18. H24. H26. H28.H46
|
|
Thickness
|
From 0.015mm to 1.2mm
|
|
Width
|
Standard width 1240mm
|
|
Special width 1000mm. 1200mm. 1240mm, 1270mm. 1520mm. 1620mm
|
|
Diameter
|
Standard dia: 1200mm
|
|
Interior dia: 150mm.405mm. 500mm. 505mm. 510mm
|
|
Outer diameter: 1200mm
|
|
Weight
|
2.5 T/coil,3.0 T/coil
|
|
Coating thickness
|
PE:>=16 micron , PVDF:>=25 micron
|
|
Protective film
|
As per customer's request
|
|
Coating paint
|
PVDF, PE(Polyester), FEVE, epoxy, polyamide, polyurethane
|
|
Color
|
Soid.Wood. Metallic, Stone, High gross, Brush, Sparkling.
|
|
RAL or by customer requirements.
|
|
Weight
|
As per customer's request
|
|
Surface
|
Embossed, mill finish, coated
|
|
Gloss
|
10-100%
|
|
Coating Hardness
|
More than 2h
|
|
(pencil resistance)
|
|
Coating adhesion
|
1J
|
|
Impact Resistance
|
No peeling or cracking(50 kg/cm)
|
|
Application
|
ACP.wall cladding.facades.roofs and canopies.ceilings.signboards.
|
|
blind window.display platforms.electrical panels.etc
|
|
Coating Thickness
|
PE coating:more than 16 micron
|
|
PVDF coating:more than 25micron
|
3105 3005 H46 PU/PA COATING ALUMINUM STRIPS FOR SHUTTERS
1. Specification for shutter coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.21, 0.23, 0.25, 0.28, 0.30mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil's standard diameter:1200mm, Interior diameter: 405mm,505mm, etc.
05) weight: 0.5-3.0T/coil or by buyer's option
06) Surface treatment: PU/PA coating

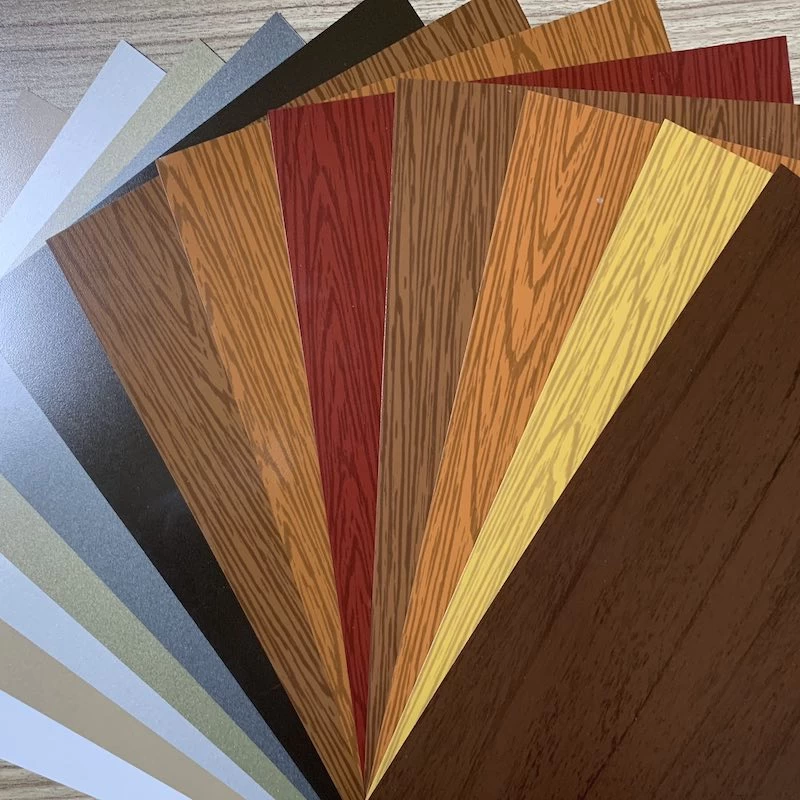

07) Color: solid, metallic, glossy, matte, wooden grain, marble stone,etc.
08) Dried and baked: oven baked at 450 degree F
09) Coating thickness: 18-20 micron
10) Coating hardness: (pencil hardness) HB
11) Coating adhesive: no lower than first grade
12) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
13)Flexibility(T-bend):2T or by your option
14) MEK resistance: more than 100
15)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.
2. Applications
Interior applications:wall cladding, ceilings, bathrooms, kitchens and balconies, shutters, doors...
Exterior applications: wall cladding, facades, roofing, canopies, tunnels,column covers , renovations...
Advertisement and market applications: display platforms, signboards, fascia, shop fronts...
