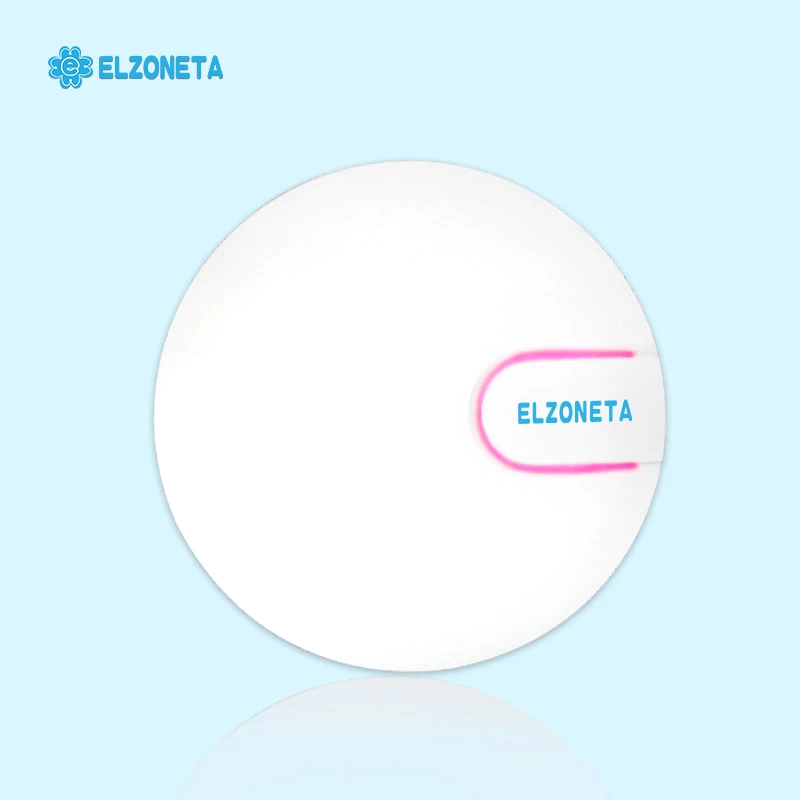

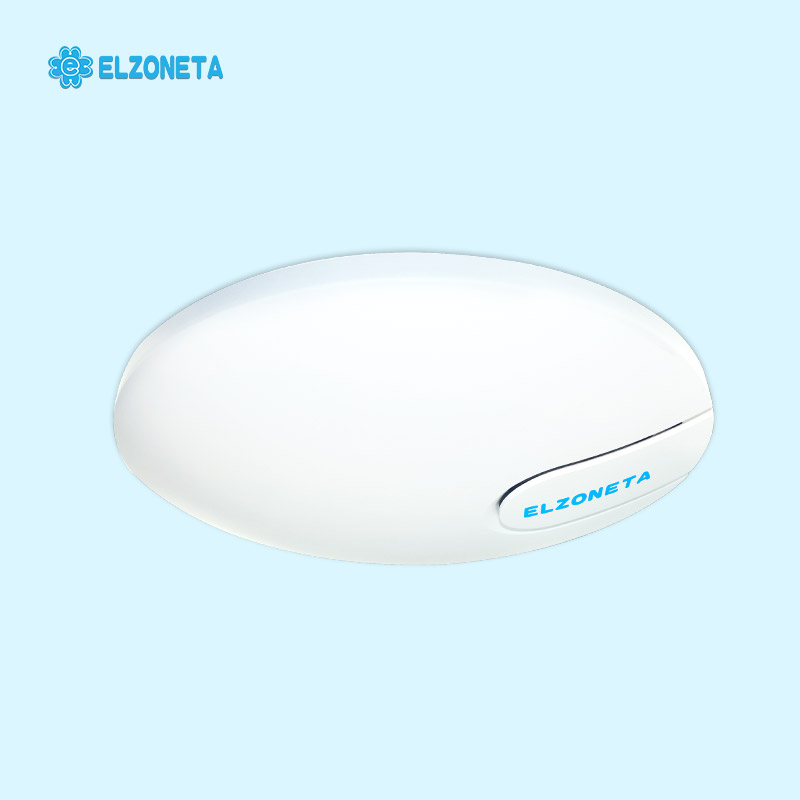

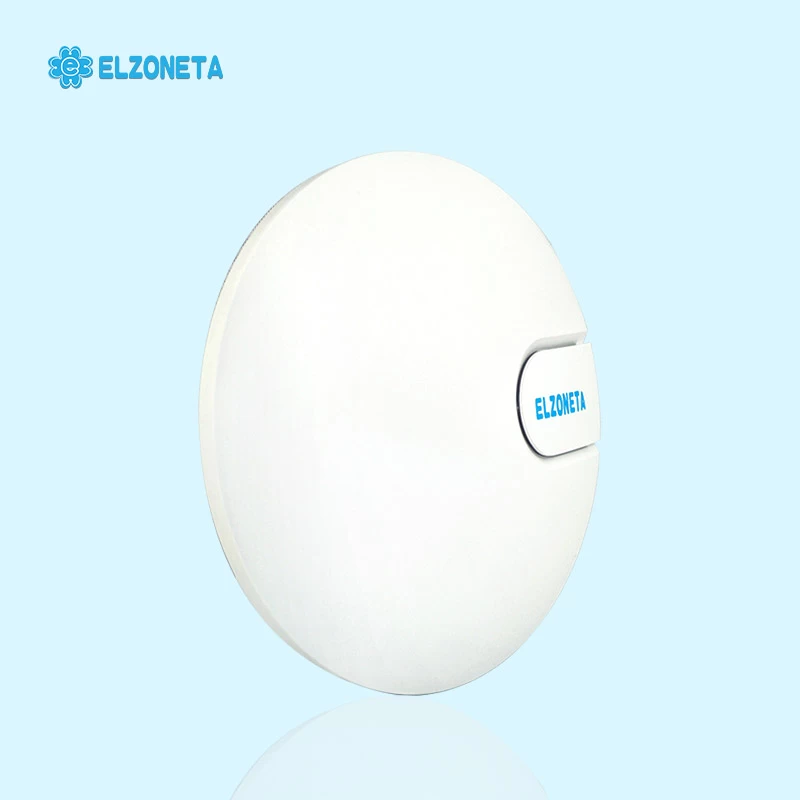

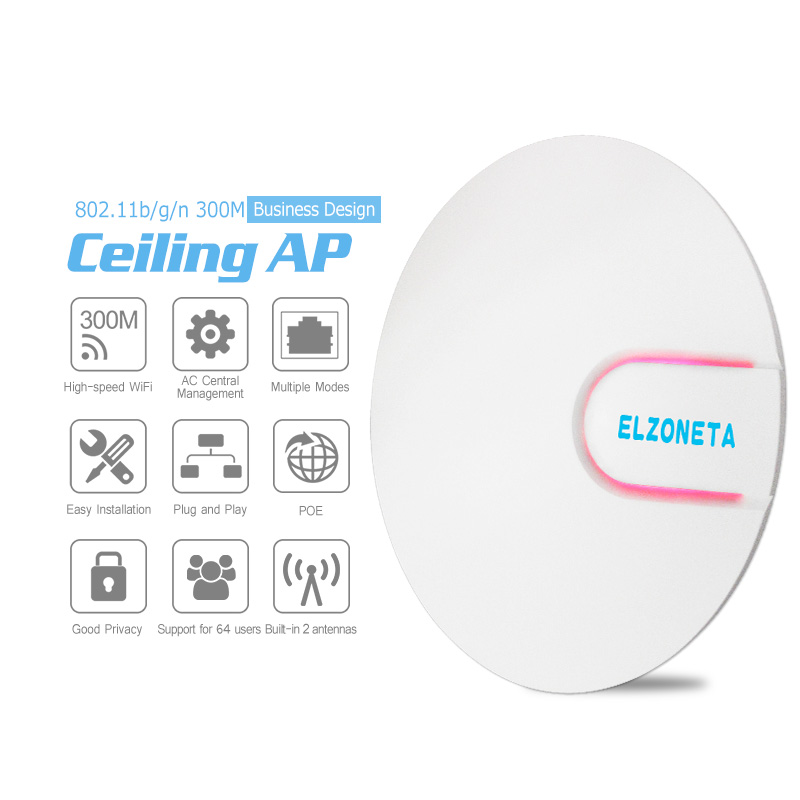

EC-AP02 Ceiling AP Router
2.4GHz 300Mbps wireless ceiling access point can extend your existing WiFi network and transmit signal to every corner.
HARDWARE FEATURES
Chipset:QCA9531Industrial processor
Router throughput:64 ports
Wireless Technology:802.11B/G/N,2T2R MIMO
Memory:128 MB DDR2 RAM
Flash:16 MB
Interface:

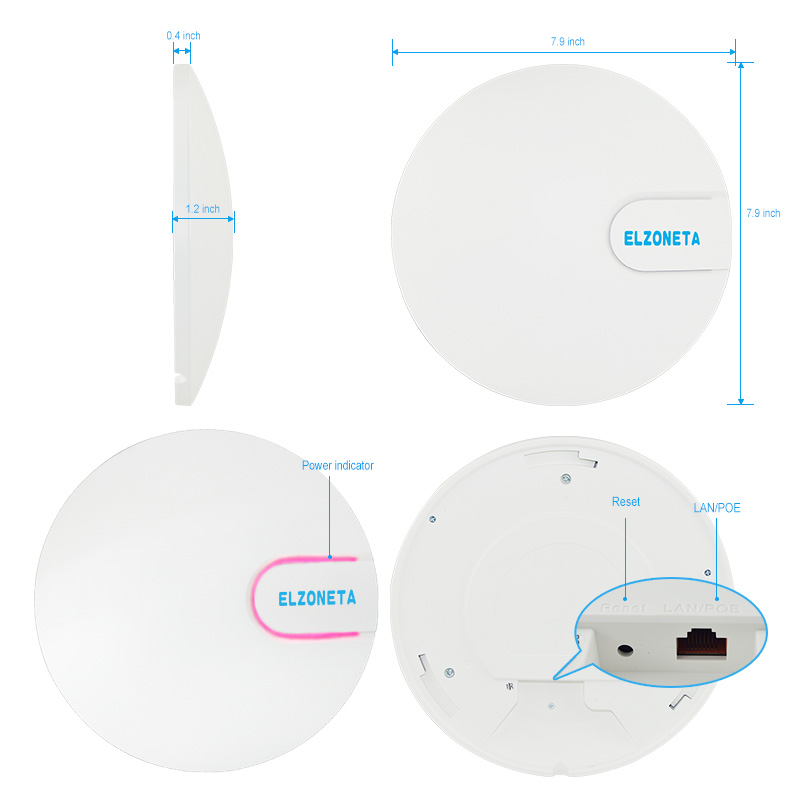

1 x 10/100Mbps Adaptive wired network interface（Support 48V power supply, the longest distance is 100 meters）1 x Reset button
RF PARAMETER
Wireless Rate:300Mbps
Wireless Standards:IEE802.11b/g/n
Frequency:2.4GHz
Modulation:OFDM, CCK, BPSK, QPSK
Maximum transmit power:27dBm/500mw
Antenna:Internal 2* 3dBi Omni
SOFTWARE FEATURES
Management style:Soft AC/Hard AC controller
Operation Mode:AP/ Repeater
Channel configuration:Intelligent selection channel
Signal analysis:Support signal strength display and analysis
Transmitted power:Support transmit power adjustment and distance control
Wireless security:WPA2 PSK/AES
WPA/WPA2 PSK+TKIP/AES
Radio broadcast:SSID,SSID/ Tag VLAN
Regular reboot:Support timing restart function
System settings:WEB
Software upgrade:WEB page or TFTP upgrade
User rights:User name and password is configurable
PHYSICS FEATURES

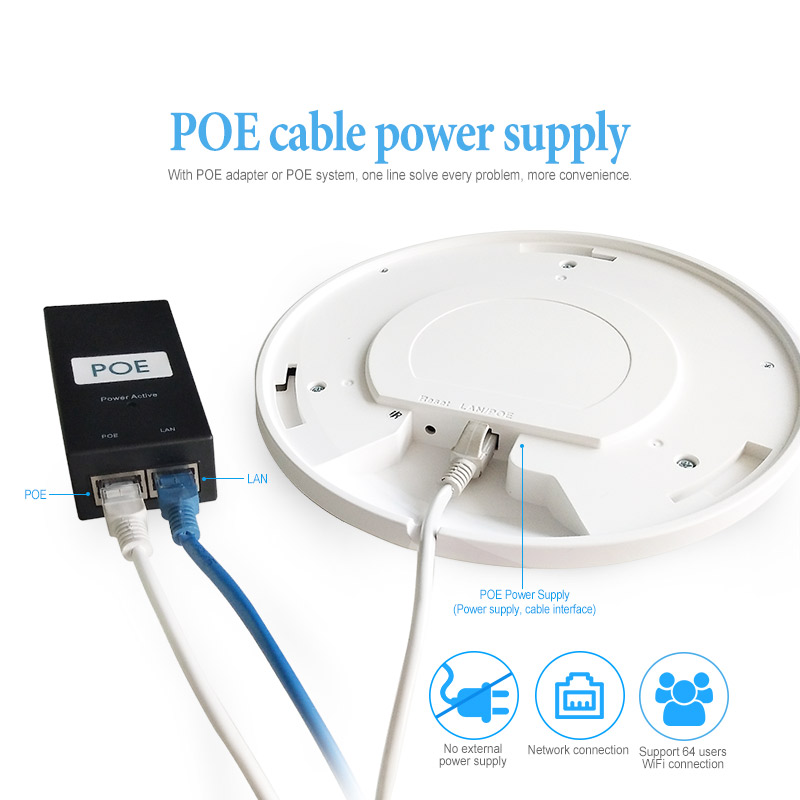

Power Supply:48V 0.5A POE
Operating Temperature:-30℃~+70℃
Operating Humidity:10%~90%
Power Consumption:12W
Material:ASA Engineering plastic shell
Installation method:Ceiling mounting
