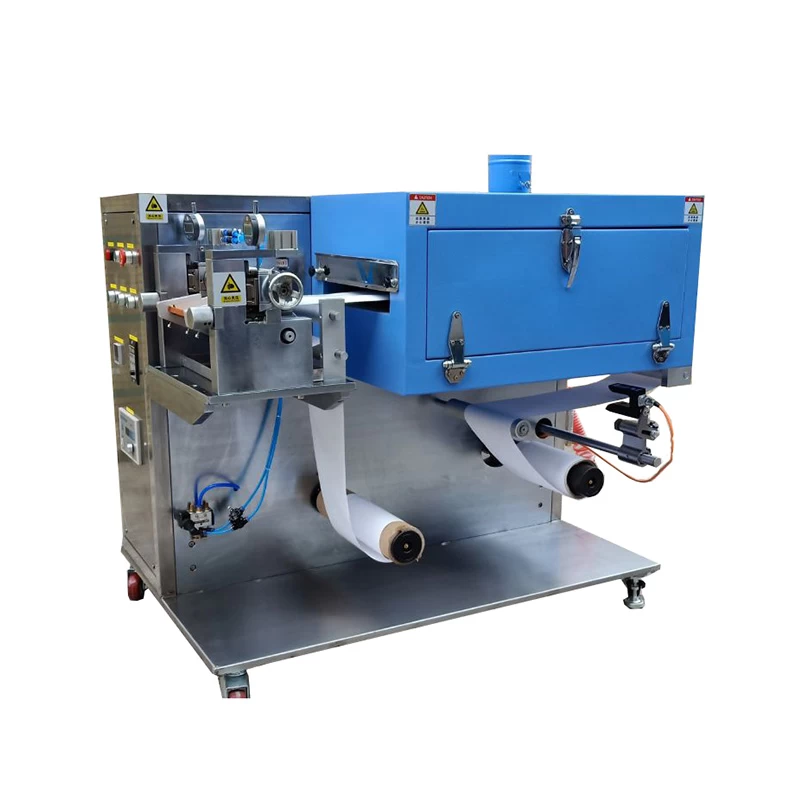

300mm Continuous Battery Electrode Coating Machine AOT-CCM-300
Description:

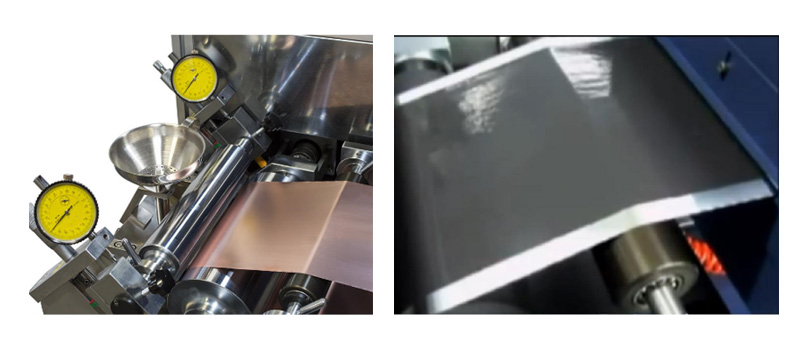

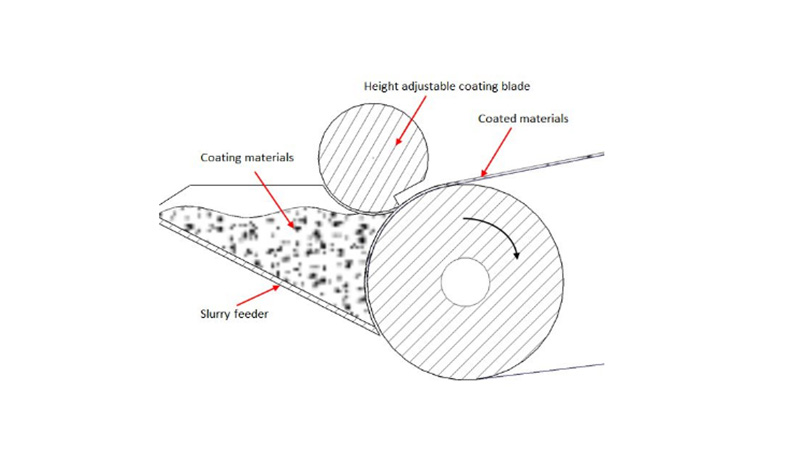

The continuous experimental battery electrode coating machine is specially used for coating the surface of the aluminum foil and copper foil, which can realize a very uniform thin coating on the surface of the substrate. It is automatically dried by the heating oven on the coater. This equipment can realize continuous coating, and is suitable for battery production R & D experiments and sample production, etc., it is also widely used in other industries such as film, papermaking and composite materials, and has high experimental production efficiency.
Features:
1. Automatic unreeling and rewinding after coating;
2. Rewinding automatic correction system makes rewinding more neat and beautiful;
3. Equipped with drying system, heating temperature PID adjustable;
4. The coating tension is adjustable;
5. High coating accuracy;
6. Optional coating width according to customer needs.
Specifications:
|
Model
|
Continuous Battery Electrode Coating Machine AOT-CCM-300
|
|
Source voltage
|
AC 380V, 50HZ (Can be customized)
|
|
Max power
|
9000W
|
|
Warranty
|
One Year limited manufacturewarranty with lifetime technicalsupport
|
|
The base width
|
300mm
|
|
Coating width
|
30mm-280mm adjustable
|
|
Coating mode
|
Continuous coating
|
|
Coating speed
|
100mm-600mm, adjustable
|
|
Applicable foil thickness
|
Aluminum foil : 10-30um
Copper foil : 6-20um
|
|
Coating thickness accuracy
|
±3um
|
|
Coating length accuracy
|
±1mm
|
|
Coating roller diameter
|
100mm
|
|
Coating rollerthrob
|
≤2um
|
|
Unwinding roller diameter
|
280mm
|
|
Unwinding tension control
|
5-50N, adjustable
|
|
winding roller diameter
|
280mm
|
|
winding tension control
|
5-50N, adjustable (AC motor active winding)
|
|
Scraper positioning accuracy
|
±1 cm (micrometer)
|
|
Error-correction accuracy
|
±0.5mm
|
|
Applicable slurry viscosity
|
1500-15000cps
|
|
Oven temperature
|
Max150°C adjustable, with accuracy ±1°C,
Independent PID adjustable
|
|
Oven length
|
2000mm (can be custom)
|
|
Weight
|
About500kg
|
|
Dimension(L*W*H)
|
About2800*800*900mm
|
