300mm Width Automatic Film Coating Machine With Glass Bed For Li ion Battery Electrode Lab Coating
SPECIFICATIONS
TOB-XT-200CAFilm coating machineis labAutomatic Film Coaterwith glass bed as coating plate. It adopts precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film andLi-Ion battery electrode coating.
This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to1.5 um). It also can be used for Paper printing, film, adhesive tape production.
This model is without heating function, Heating lid is available at extra cost for drying . please select mode TOB-VFC-150 if we need hot function.
|
Model
|
Film Coating Machine TOB-XT-200CA
|
|
Working Voltage
|
110V AC or 208 - 240V AC 50/60Hz Single Phase
|
|
Power
|
200W
|
|
Traverse Speed
|
0 - 200 mm/sec variable
|
|
Max. Coating Dimensions
|
430*300mm (L*W)
|
|
Coating base size
|
570*340mm (L*W)
|
|
Platform
|
Glass bed for coating
|
|
Coating thickness
|
Coating film by precision wire bar（Thinnest coating film thickness up to 1.5um）
|
|
Coating wire bar size
|
Diameter : 10mm, Length: 400mm，Effective coating width:300mm
|
|
Product Dimensions
|
570mm(L) *340mm(W) * 100mm(H)
|
|
Net Weight
|
20kg
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Application Notes
|
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials
to the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating
You may need a vacuum mixer to remove air bubbles inside the slurry and to make
all coatings uniform
You may need a Slurry Viscosity Tester to make coatings consistent
|

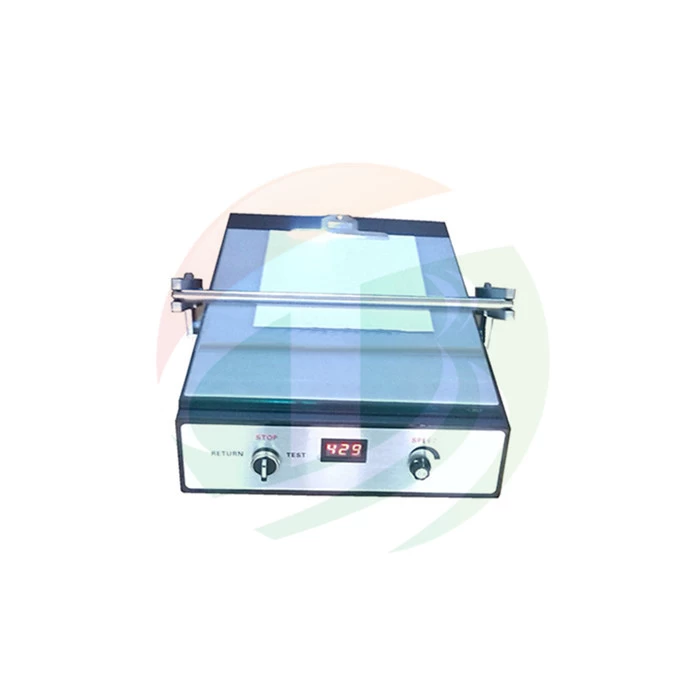

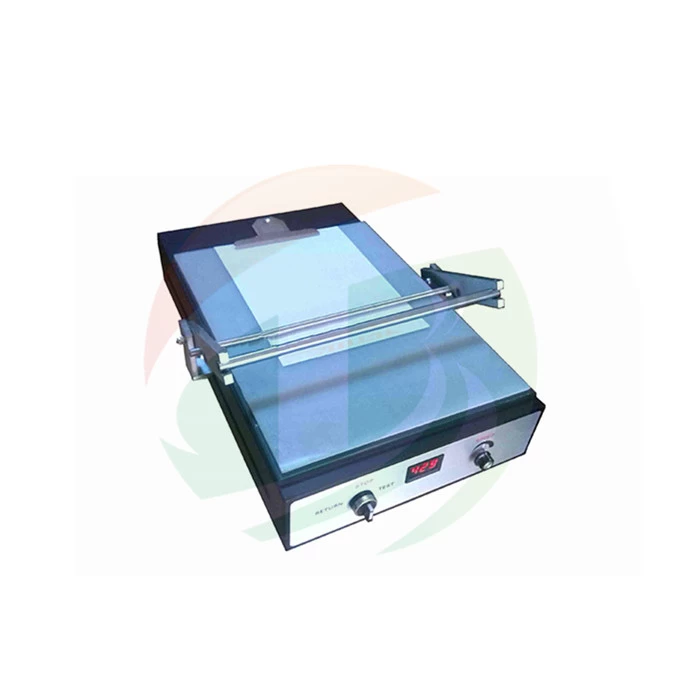

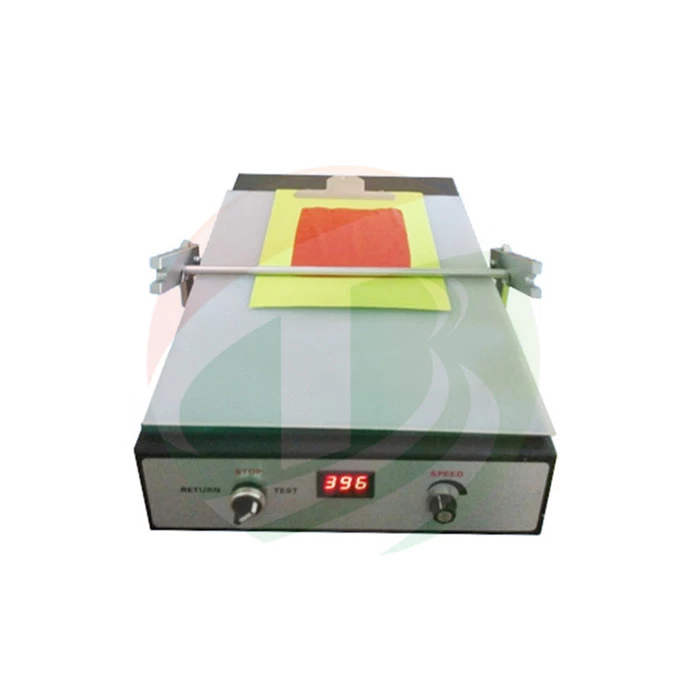

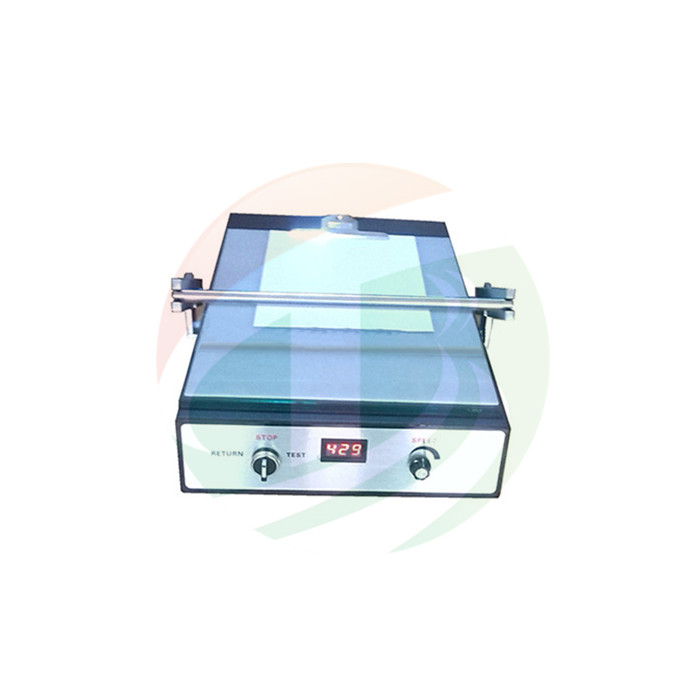

PRODUCT DISPLAY
